J CLOSE IN ALARM/OPEN IN ALARM
When the Controller is set to “close in alarm,” the status of the alarm output function is output as it is. When set to “open in alarm,”
the status of the alarm output function is output inverted.
Condition Alarm Output Output LED
Close in alarm
ON ON Lit
OFF OFF Not lit
Open in alarm
ON OFF Lit
OFF ON Not lit
Alarm type and close in alarm (normally open)/open in alarm (normally close) can be set independently from each alarm.
Close in alarm/Open in alarm is set in the “alarm 1 to 3 open in alarm” parameters (setup mode).
Factory setting is “close in alarm” [ nĆo ].
J PARAMETER OPERATION LIST
Switching to modes other than manual or protect mode is carried out using the mode selection in the menu display.

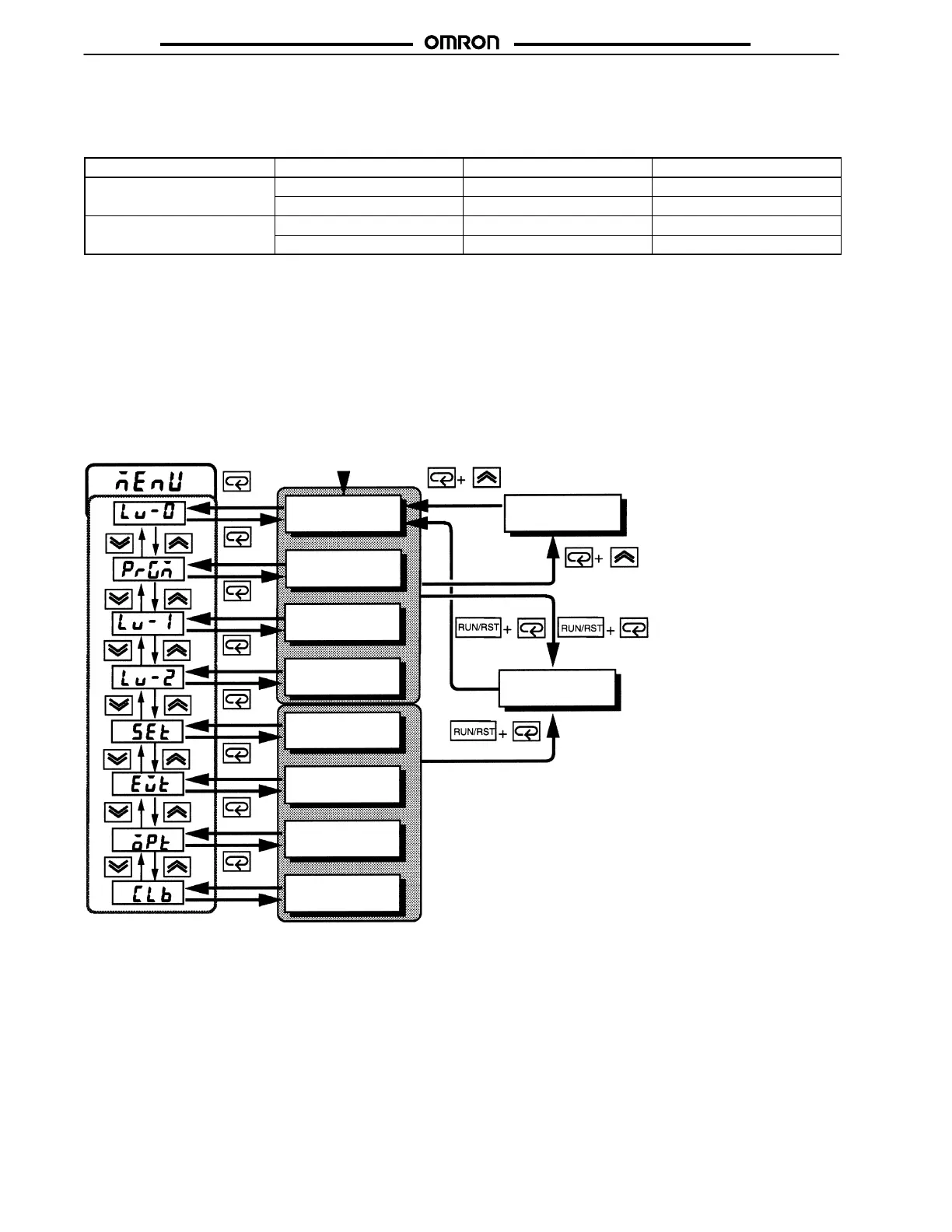

The figure below shows all parameters in the order that they are displayed. Some parameters are not displayed depending on the protect
mode setting and conditions of use.
Power ON
Level 0 mode
Level 1 mode
Level 2 mode
Setup mode
Expansion mode
Option mode
Calibration mode
1 second min.
Program mode
Protect mode
Manual mode
1 second min.
1 second min. 1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
1 second min.
