138
Advanced Function Setting Level Section 5-7

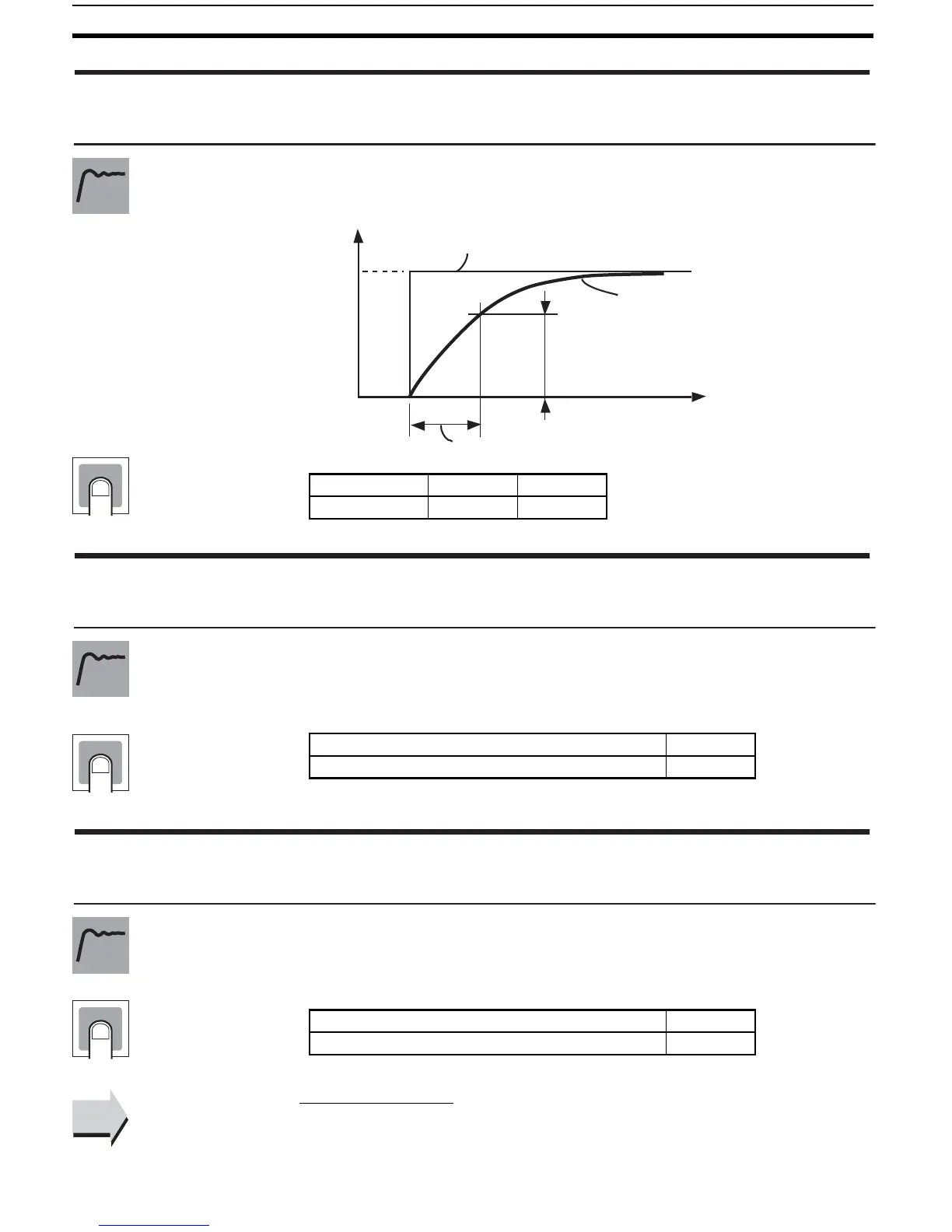

• This parameter sets the time constant for the input digital filter. The fol-
lowing diagram shows the effect on data after passing through the digital
filter:
This parameter adds a display at the beginning of the operation level for the
process value (PV). If there is no need to display the set point, use this to dis-
play only the present temperature.
Set to ON to display, and OFF to not display.
This parameter is used to display the manipulated variable (MV).
The manipulated variable is displayed when the “MV monitor (heating) and
(cooling)” parameters are set to ON, and not displayed when these parame-
ters are set to OFF.
Related Parameters
MV monitor (heating): Page 104, MV monitor (cooling): Page 105 (operation
level)
inf Input Digital Filter
Setting range Unit Default
0.0 to 999.9 Second 0.0
Function
0.63 A
A
PV before passing through filter
PV after passing through filter
(Time
constant)
In
p
ut di
g
ital filter
Time
Setting
pvad Additional PV Display
Setting range Default
on: Displayed, off: Not displayed off
Function
Setting
o-dp MV Display
Setting range Default
on: Displayed, off: Not displayed off
Function
Setting
See
See
■
