2 Preparations
2 - 82
E5@C Digital Temperature Controllers User’s Manual (H174)
• Bottom-panel Port
Precautions for Correct Use
• Hold the connector when inserting or disconnecting the Cable.
• When connecting a connector, always make sure that it is oriented correctly. Do not force the
connector if it does not connect smoothly. Connectors may be damaged if they are connected
with excessive force.
• Do not connect cables to both ports at the same time. Damage or malfunction may occur.

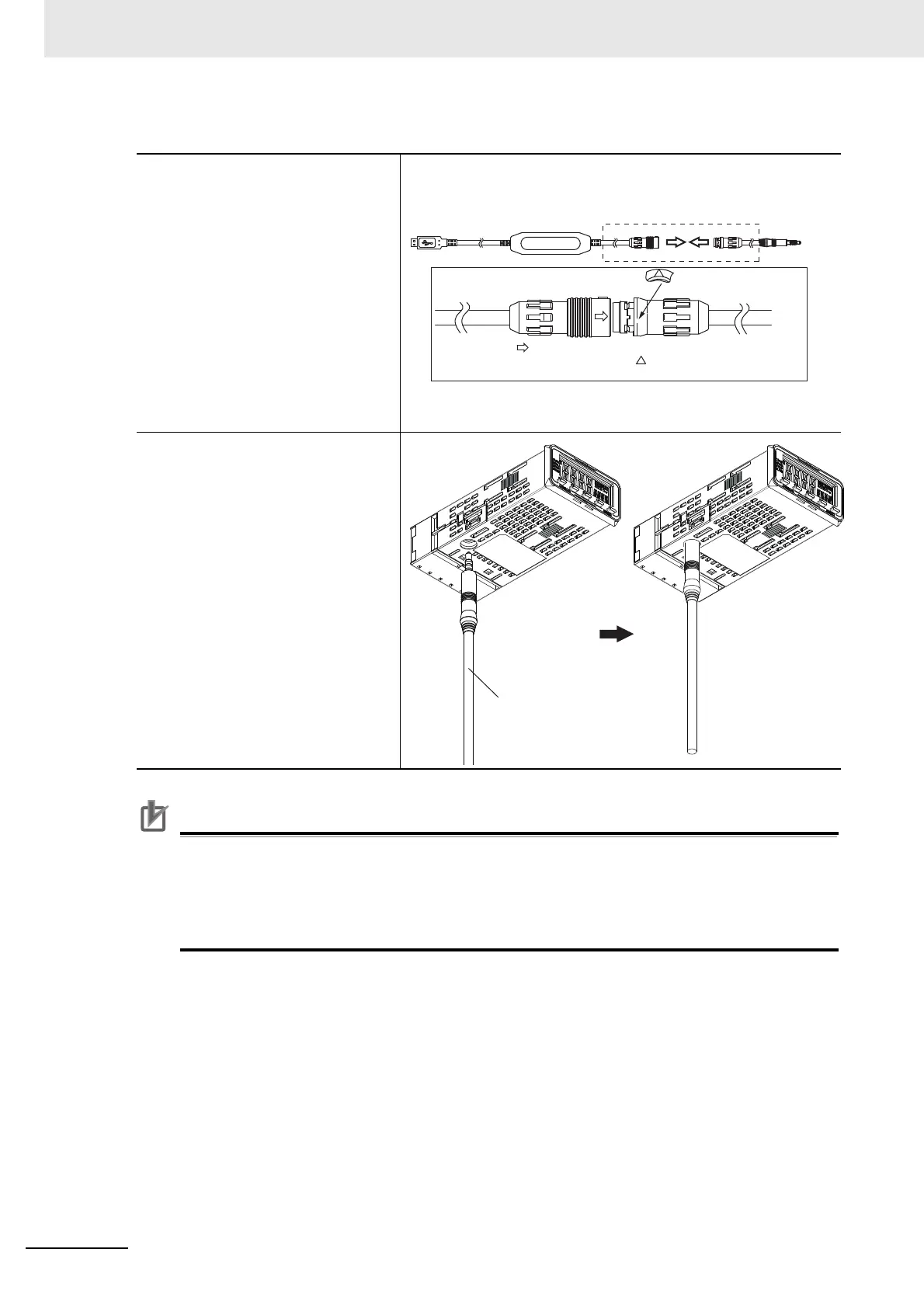

1 Connect the E58-CIFQ2
USB-Serial Conversion Cable
to the E58-CIFQ2-E
Conversion Cable.
2 Connect the plug on the
Conversion Cable to the
bottom-panel Setup Tool
port.
E58-CIFQ2
USB-Serial Conversion Cable
E58-CIFQ2-E
Conversion Cable
There is a triangle
on the connecting surface.
Align the arrow ( ) on the small connector on the E58-CIFQ2 USB-Serial
Conversion Cable with the triangle mark ( ) on the small connector on the
E58-CIFQ2-E Conversion Cable.
Conversion cable

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
