6-7 Initial Setting Level
6
6-7 Initial Setting Level
This level is used to set up the basic Digital Controller specifications. In this level, you can set the Input
Type parameter to set the sensor input to be connected, limit the setting range of set points, set the
alarm modes, and perform other operations.
To move from the Operation Level or Adjustment
Level to the Initial Setting Level, press the O Key
for at least three seconds with any parameter dis-
played except for the Auto/Manual Switch parame-
ter.
• The Initial Setting Level is not displayed when the
Initial Setting/Communications Protect parameter
is set to 2. It can be used when the Initial
Setting/Communications Protect parameter is set
to 0 or 1.
• If the Input Type parameter is set for an analog
input, the following parameters will be set: Scaling
upper limit, Scaling lower limit, and Decimal point.

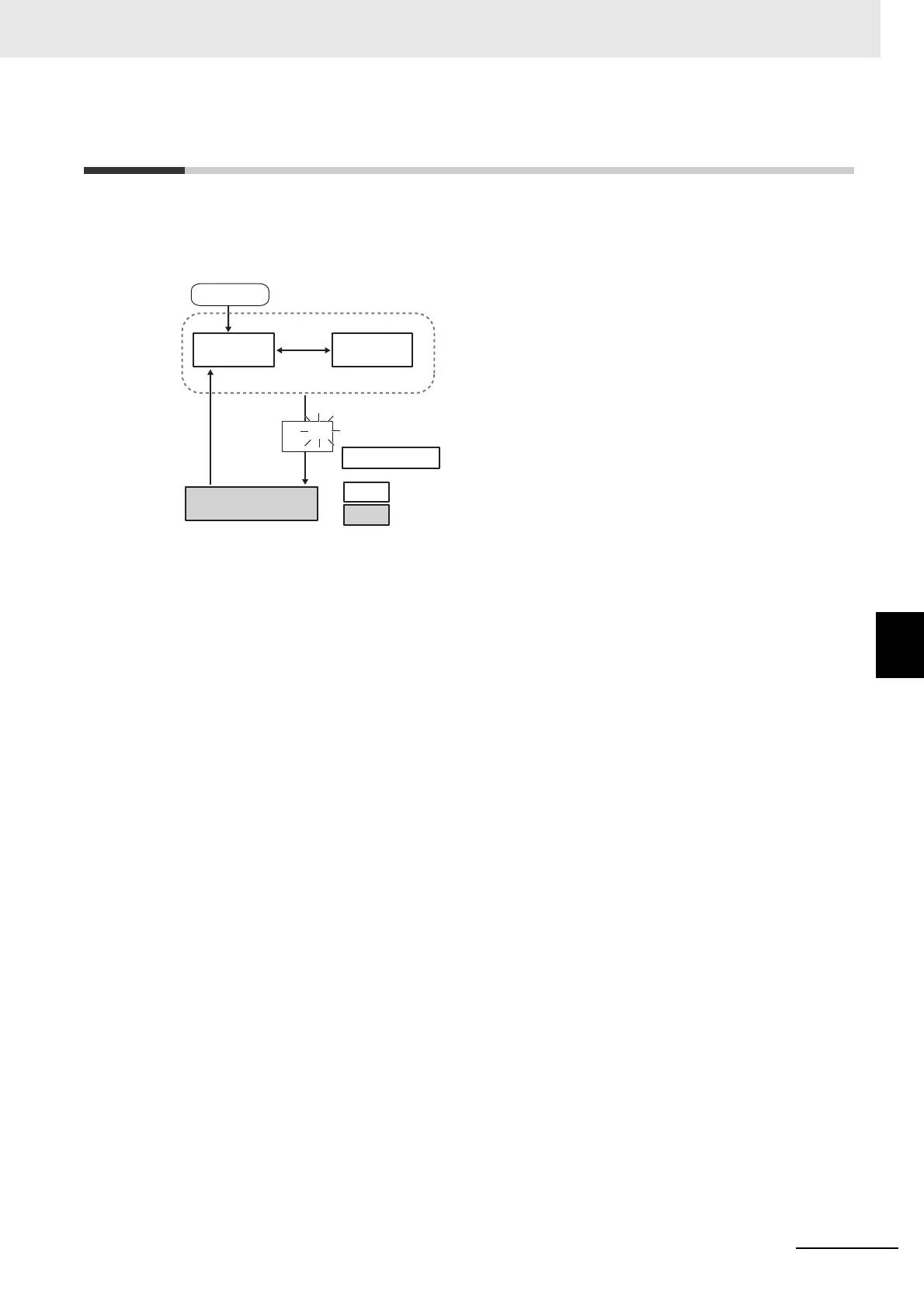

Power ON
25
100
Operation
Level
Initial Setting
Level
Control stops.
Control in progress
Control stopped
Press the O Key
for at least 3 s.
Press the
O Key
for at
least 1 s.
Adjustment
Level
Press the O
Key for at
least 1 s;
display will
flash.
Press the
O
Key
less than 1 s.
