Omron E5EC User Manual

3 Part Names and Basic Procedures
3 - 4
E5@C Digital Temperature Controllers User’s Manual (H174)
3-3 Part Names, Part Functions, and
Setting Levels

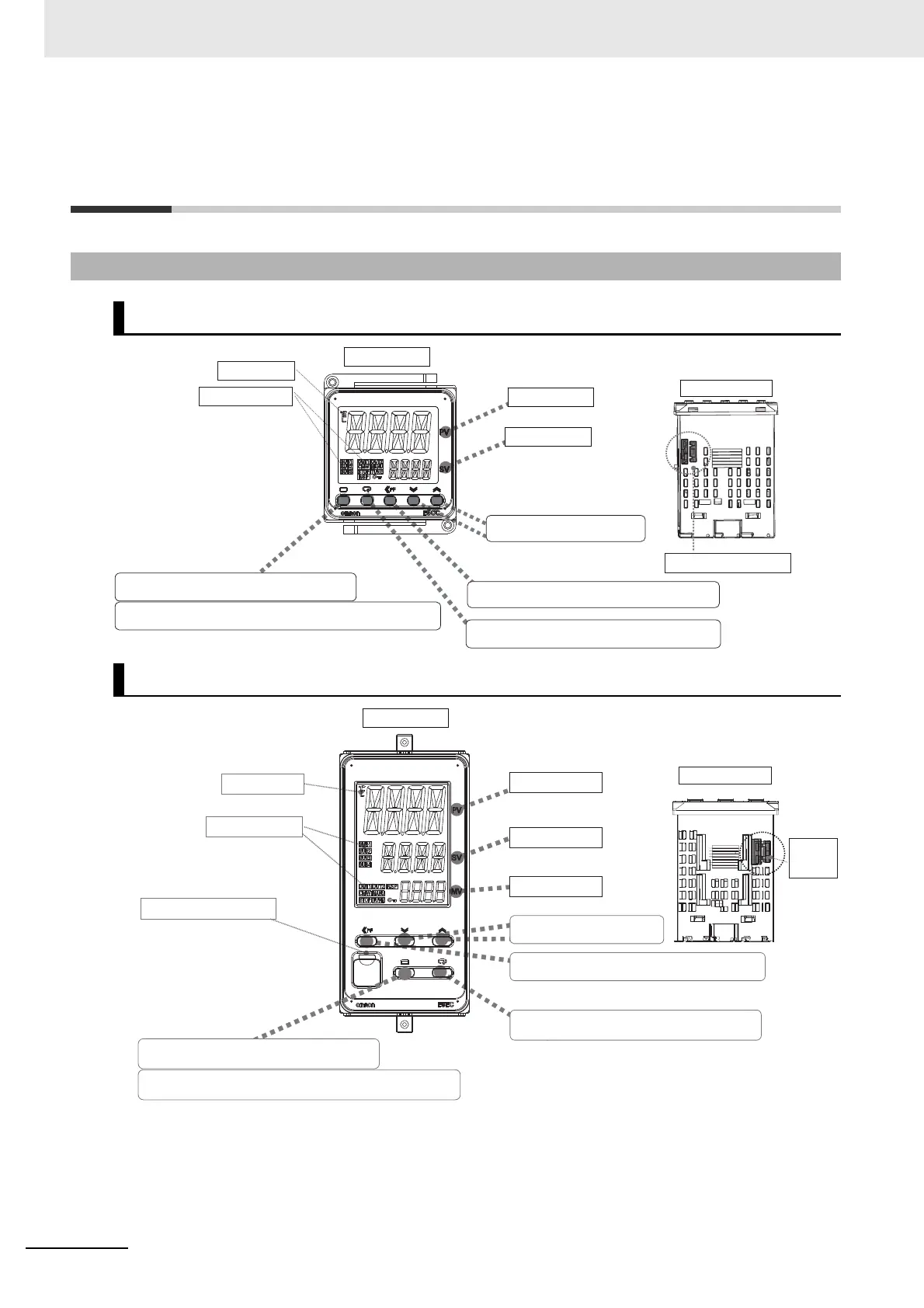

3-3-1 Part Names and Functions
E5CC/E5CC-U/E5CC-B
E5EC/E5EC-B
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.
Press the M Key to change to another parameter.
Operation indicators
No. 1 display
No. 2 display
Temperature unit
Press S Key to change the digit (default setting).
Press the U D Keys to set the
parameter.
Front panel
PV or specified parameter
SP or specified parameter value
Top View of E5CC
Setup Tool port on top panel
Operation indicators
Temperature unit
Front-panel Setup Tool port
Press S Key to change the digit (default setting).
Press the M Key to change to another parameter.
No. 1 display
No. 2 display
No. 3 display
PV or specified parameter
SP or specified parameter value
Manipulated value or other value
Top View of E5EC
Press the U D Keys to set
the parameter.
Top-panel
Setup
Tool port
Front panel
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
