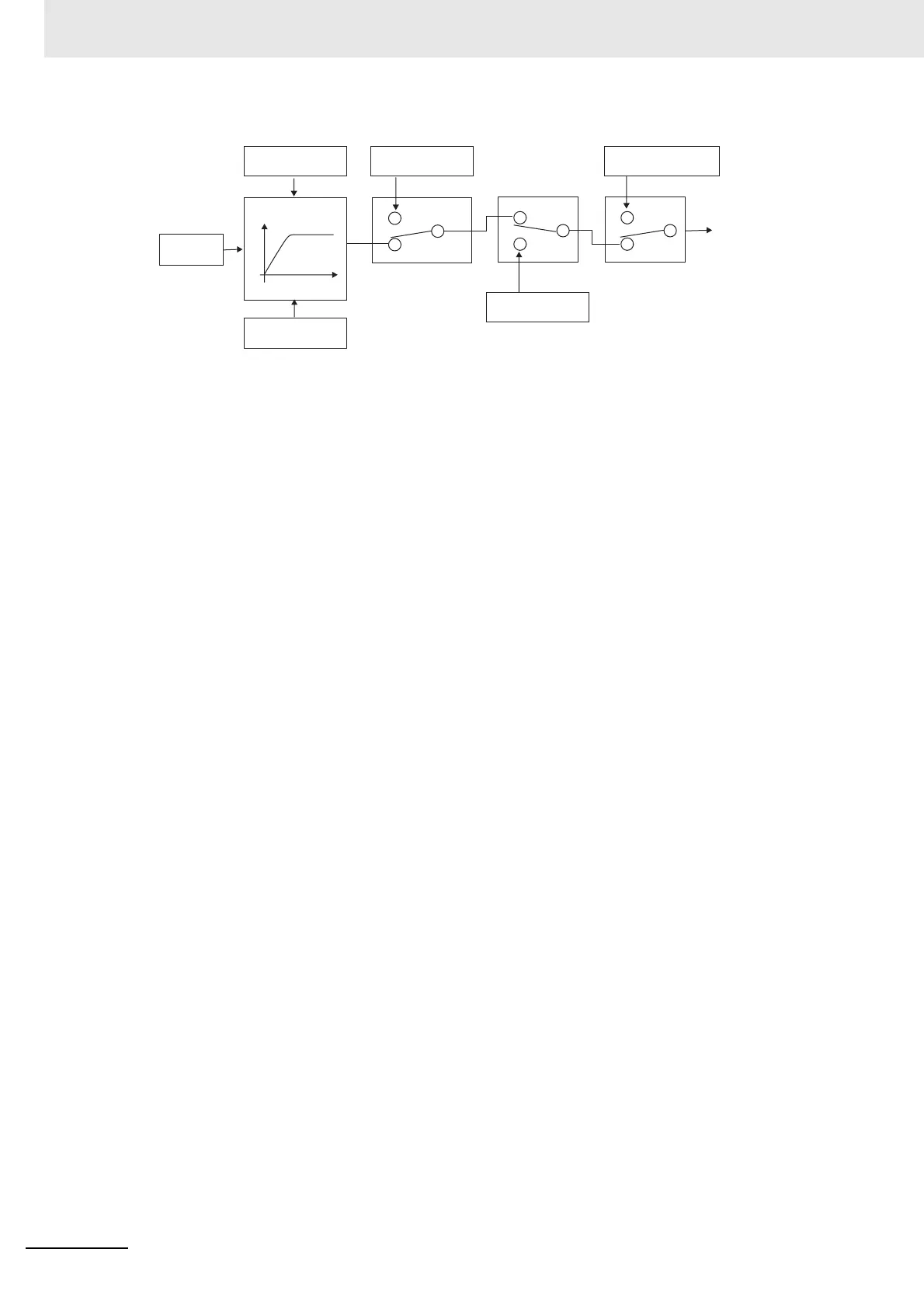

• The order of priority of the MV is illustrated in the following diagram.
* When the Manual MV Limit Enable parameter is set to ON, the setting range will be the MV lower limit to the
MV upper limit.
PID
calculations
MV upper limit
MV
Time
MV lower limit
MV at PV Error
Input error
RSP input error
Potentiometer input
error (close control)
RUN/STOP
MV at Stop
Manual MV*
Auto/Manual
Output

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
