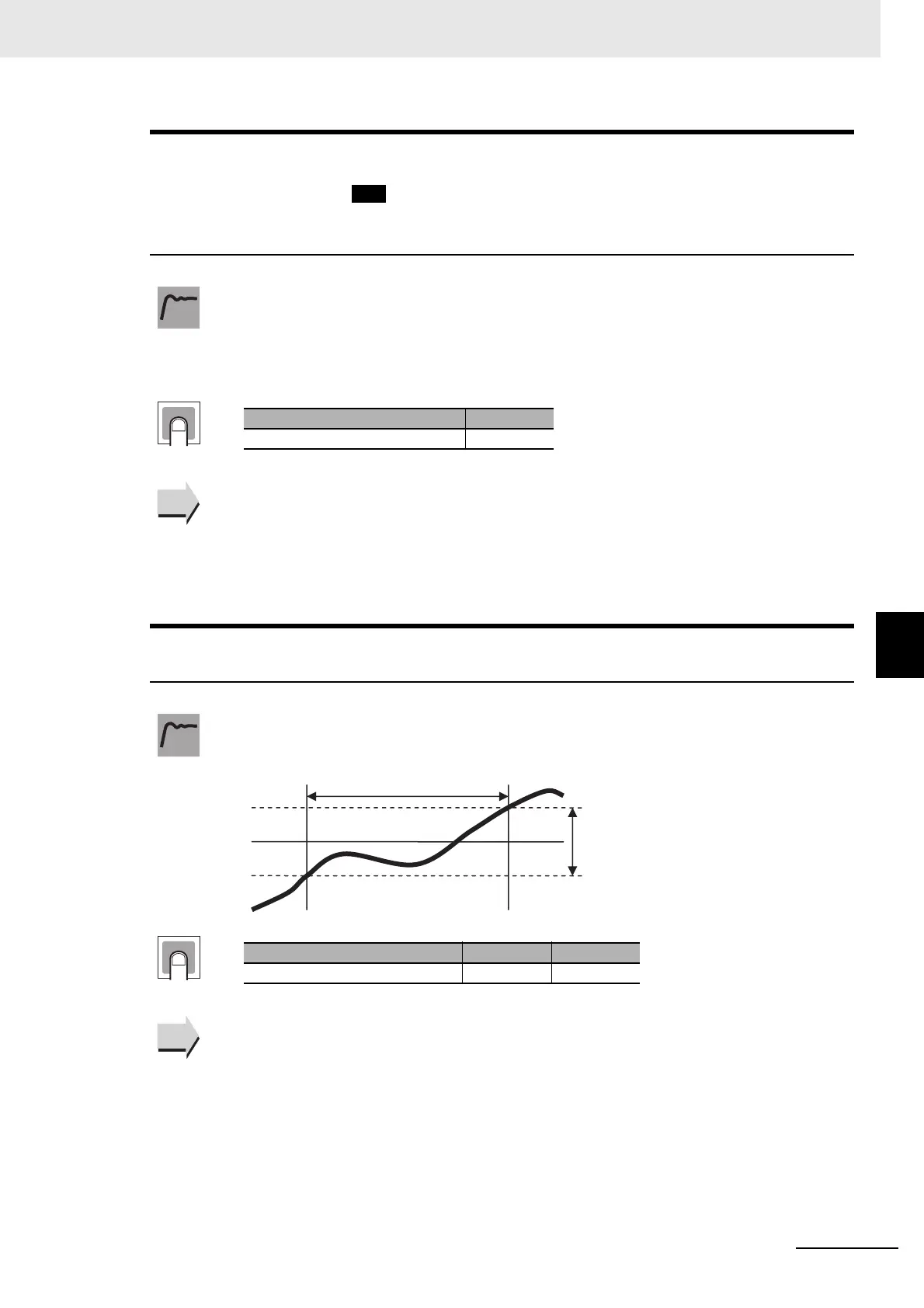

6 - 87
6 Parameters
E5@C Digital Temperature Controllers User’s Manual (H174)
6-8 Advanced Function Setting Level
6
sptr
SP Tracking
There must be a remote SP input.
The ST (self-tuning) parameter must be set to OFF
(default: ON).
The Remote SP Enable parameter must be set to
ON (default: OFF).
This parameter sets the operation to perform when moving from Remote SP Mode to
Local SP Mode.
When this parameter is set to ON, operation continues using the remote SP as the local
SP.
When this parameter is set to OFF, the remote SP does not affect the local SP.
Related Parameters
Set Point During SP Ramp (Operation Level): Page 6-10
SP Mode (Adjustment Level): Page 6-21
ST (self-tuning) (Initial Setting Level): Page 6-46
Remote SP Enable (Advanced Function Setting Level): Page 6-85
p-db
PV Dead Band A Position-proportional Model must be used.
When the PV enters the PV dead band, any unnecessary output is stopped to prevent the
valve from deteriorating.
Related Parameters
Close/Floating, Motor Calibration, and Travel Time (Initial Setting Level): Page 6-59
Position Proportional Dead Band (Adjustment Level): Page 6-35, Open/Close Hysteresis
(Adjustment Level): Page 6-36
000
Function
Setting
Setting range Default
on: Enabled or off: Disabled off
See
See
Function
SP
PV
Unnecessary output is
stopped in this range.
PV Dead Band
Setting
Setting range Unit Default
0 to 9999 EU 0
See
See
