A - 9
A Appendices
E5@C Digital Temperature Controllers User’s Manual (H174)
A-1 Specifications
A

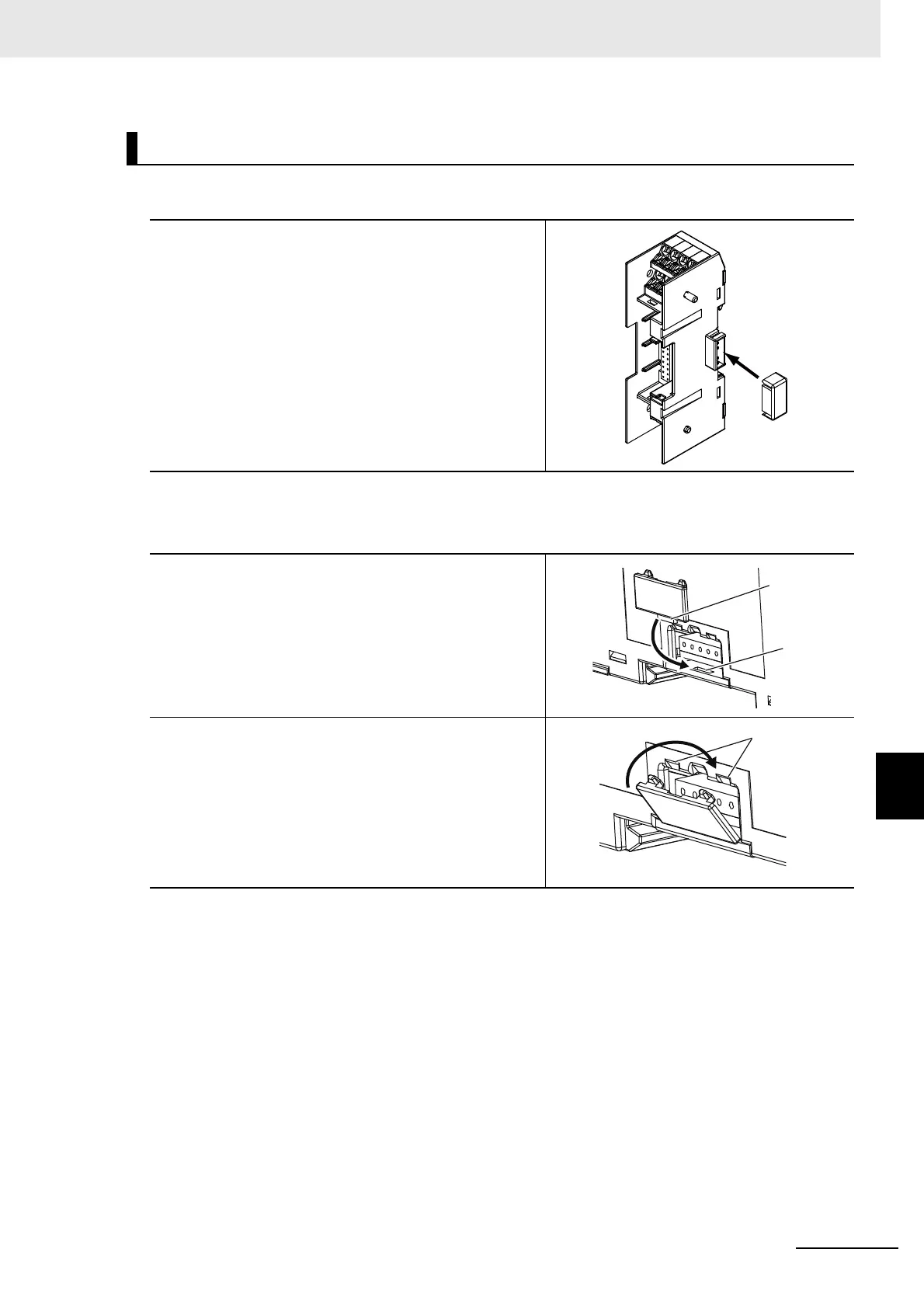

A-1-7 Connector Cover of the Terminal Unit (models with Push-in Plus Terminal Blocks)
 For a male connector cover
 For a female connector cover
Attaching the Connector Covers
1 Attach the connector cover until the claws on
the connector cover fit into the connector with
a click sound.
A male connector does not have an up/down
direction.
1 Insert the projection on the female connector
cover into the groove on the Terminal Unit.
2 Attach the female connector cover until the
claws on the connector cover fit into the
notched part of the Terminal Unit with a click
sound.
Projection
groove
Notched part

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
