Omron E5EC User Manual

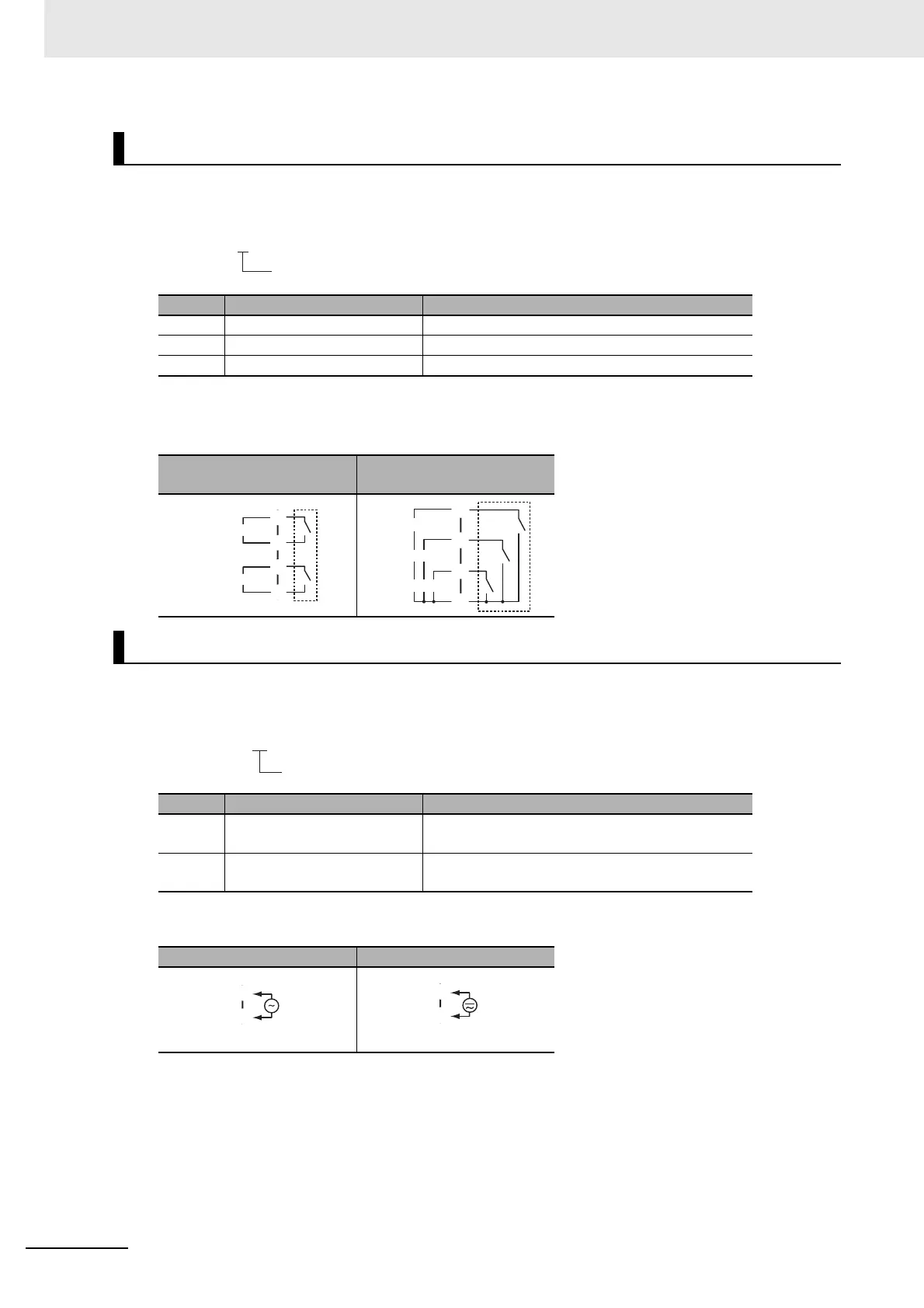

2 Preparations
2 - 26
E5@C Digital Temperature Controllers User’s Manual (H174)
 Model Numbers
The number of auxiliary outputs on the E5CC is given in the following location in the model number.
* These cannot be selected if 5 (screw terminals with cover) is selected for the terminal type.
 Terminal Details
 Model Numbers
The input power supply specification of the E5CC is given in the following location in the model number.
 Terminal Details
Auxiliary Outputs
Code Auxiliary outputs Specification
0* None None
2* Model with 2 auxiliary outputs SPST-NO, 250 VAC, 3 A
3 Model with 3 auxiliary outputs SPST-NO, 250 VAC, 2 A
Model with 2 auxiliary
outputs
Model with 3 auxiliary
outputs
Input Power Supply
Code Specification Power consumption
A 100 to 240 VAC, 50/60 Hz Option number 000: 5.2 VA max.
Other option numbers: 6.5 VA max.
D 24 VAC, 50/60 Hz
24 VDC (no polarity)
Option number 000: 3.1 VA max./1.6 W max.
Other option numbers: 4.1 VA max./2.3 W max.
100 to 240 VAC 24 VAC/DC
E5CC-@@ @ @ @ M-@@@
No. of auxiliary outputs
G
H
I
J
Auxiliary output 2
Auxiliary output 1
G
H
I
J
Auxiliary output 2
Auxiliary output 1
Auxiliary output 3
E5CC-@@ @ @ @ M-@@@
Input power supply
L
K
(No polarity)
L
K

Omron E5EC Specifications

General

Mounting Type	Panel Mount
Display Resolution	0.1°C or 1°C
Control Method	ON/OFF
Input Type	Thermocouple, RTD, Analog voltage
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage, Current
Size	48 x 96 mm
Control Output	Relay, Voltage, Current
Alarm Output	Relay
Communication	RS-485
Ambient Operating Temperature	-10 to 55°C
Ambient Operating Humidity	25 to 85% RH
Protection Rating	IP20
