Omron E8F2 User Manual

E8F2 E8F2
21

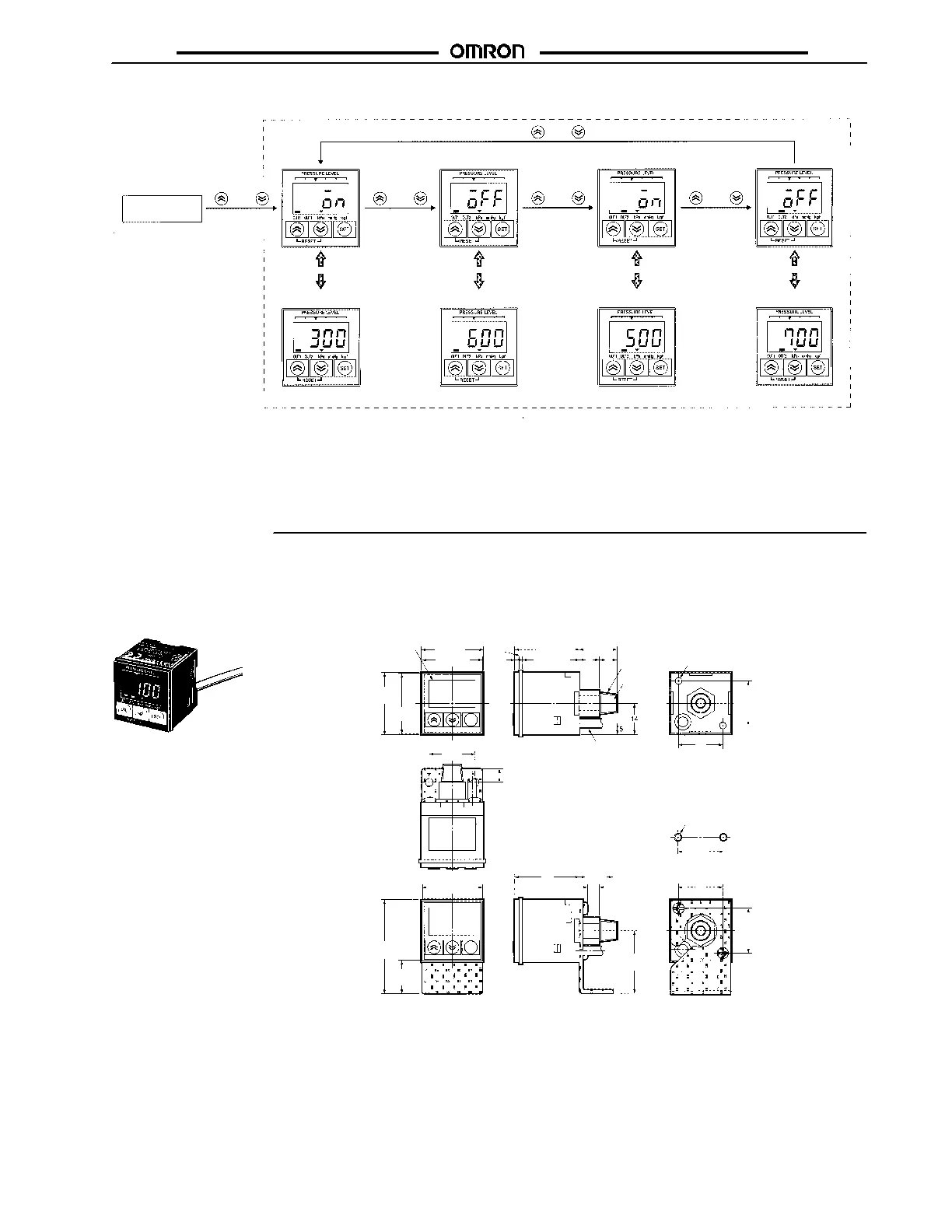

ON- and OFF Set Value Check Function
Measurement
mode
ON- and OFF-point Set value
or
or
Displayed
alternately
or
Displayed
alternately
or
Displayed
alternately
or
Displayed
alternately
OUT1 ON point
OUT1 OFF point
OUT2 ON point
OUT2 OFF point
The ON and OFF points presently set can be checked.
Press the Up or Down Key in measurement mode to di splay the OUT1 ON point and on alternately.
Press the Up or Down Key again to display the OUT1 OFF point and off al ternately.
Press the Up or Down Key after the above to displ ay the OUT2 i tems.
If no key is input for approximately 2 s during the above operation, the present measurement value will be displayed automatically.
Dimensions
Unit: mm (inch)
J CONTROLLER
E8F2
1.5
(0. 06)
Display panel
Pressure-introducing
section
Vinyl-insulated round cable with five
conductors, 4 dia. (0.08 dia. x 30);
standard length: 2 m
Two-M3 (Depth: 6)
With Mounting Bracket
Two-M3
Mounting D imensions
20.5
(0.81)
28
(1.10)
27
(1.06)
28 (1.10)
29
(1.14)
20
(0.79)
42
(1.65)
5.4
(0.21)
15
(0.59)
25.5 (1.00 )
8
(0. 31)
2
(0. 68)
6 (0.24)
20
(0.79)
20.5
(0.81)
28
(1.10)
29
(1.14) 20
(0.79)
20
(0.79)
15
(0.59)
27(1.06)
1/8 NPT
17
(0.67)
27(1.06)
9
(0. 35)
