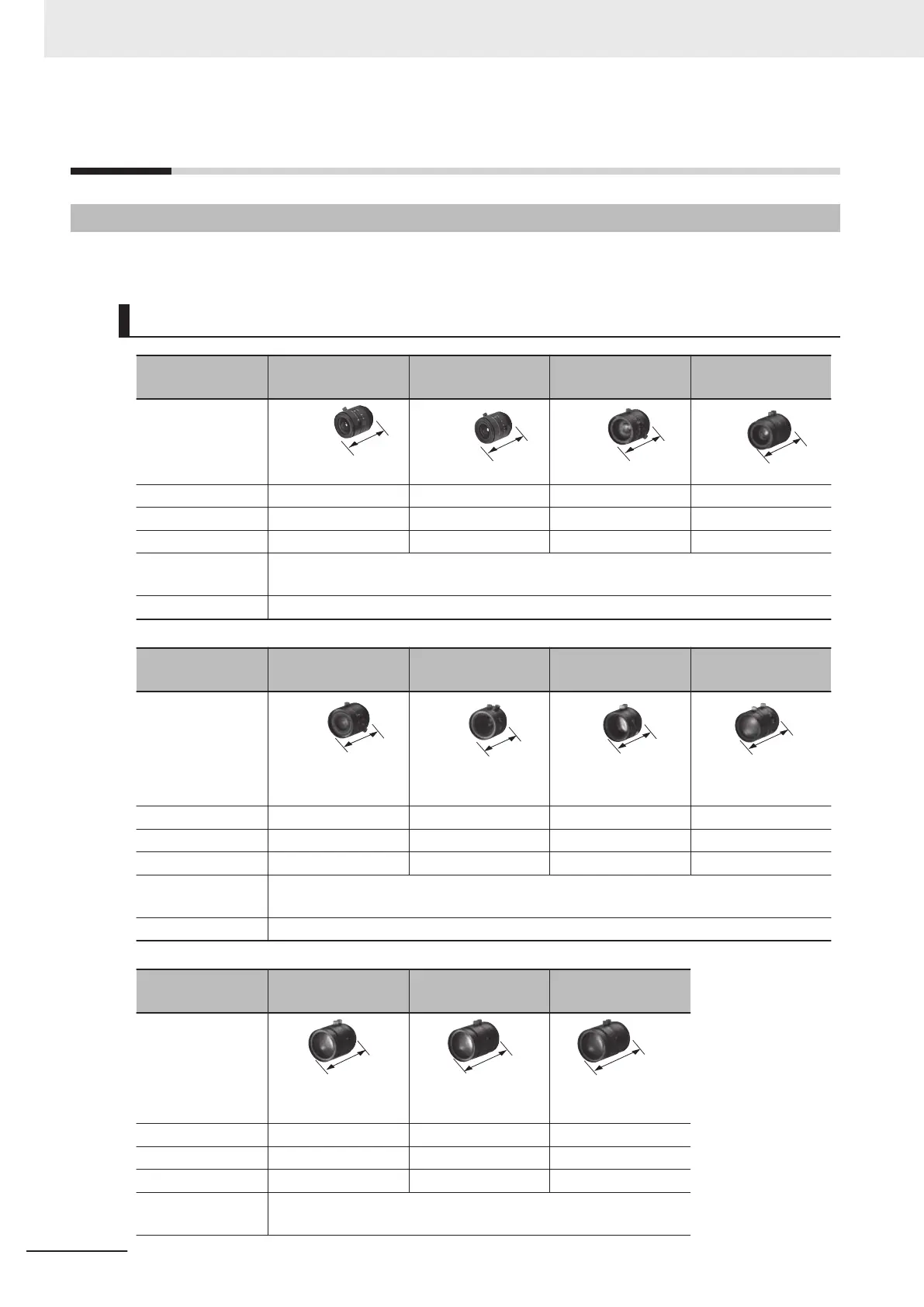

C-mount Lens for 1/3-inch Image Sensor (SV-V Series)
FH-S, FZ-SH, and FZ-S are recommended.
Specification
Model
3Z4S-LE
SV
-03514V
3Z4S-LE
SV-04514V
3Z4S-LE
SV-0614V
3Z4S-LE
SV-0813V
Appearance/
Dimensions
(Unit: mm)
30.4
29.5 dia.
29.5
29.5 dia.
30.0
29 dia.
34.0
28 dia.
Focal length (mm) 3.5 4.5 6 8
Aperture (F No.) 1.4 to Close 1.4 to Close 1.4 to Close 1.3 to Close
Filter size - - M27.0 P0.5 M25.5 P0.5
Maximum sensor
size
1/3 inch
Mount C mount
Model
3Z4S-LE
SV
-1214V
3Z4S-LE
SV-1614V
3Z4S-LE
SV-2514V
3Z4S-LE
SV-3518V
Appearance/
Dimensions
(Unit: mm)
29.5
29 dia.
24.0
29 dia.
24.5
29 dia.
33.5 [WD: ∞] to
37.5 [WD: 300]
29 dia.
Focal length (mm) 12 16 25 35
Aperture (F No.) 1.4 to Close 1.4 to Close 1.4 to Close 1.8 to Close
Filter size M27.0 P0.5 M27.0 P0.5 M27.0 P0.5 M27.0 P0.5
Maximum sensor
size
1/3 inch
Mount C mount
Model
3Z4S-LE
SV-5018V
3Z4S-LE
SV-7527V
3Z4S-LE
SV-10035V
Appearance/
Dimensions
(Unit: mm)
37.0 [WD: ∞] to
39.4 [WD: 1000]
32 dia.
42.0 [WD: ∞] to
44.4 [WD: 1000]
32 dia.
32 dia.
43.9 [WD: ∞] to
46.3 [WD: 1000]
Focal length (mm) 50 75 100
Aperture (F No.) 1.8 to Close 2.7 to Close 3.5 to Close
Filter size M30.5 P0.5 M30.5 P0.5 M30.5 P0.5
Maximum sensor
size
1/3 inch
3 Configuration
3-50
