2 System Components
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual

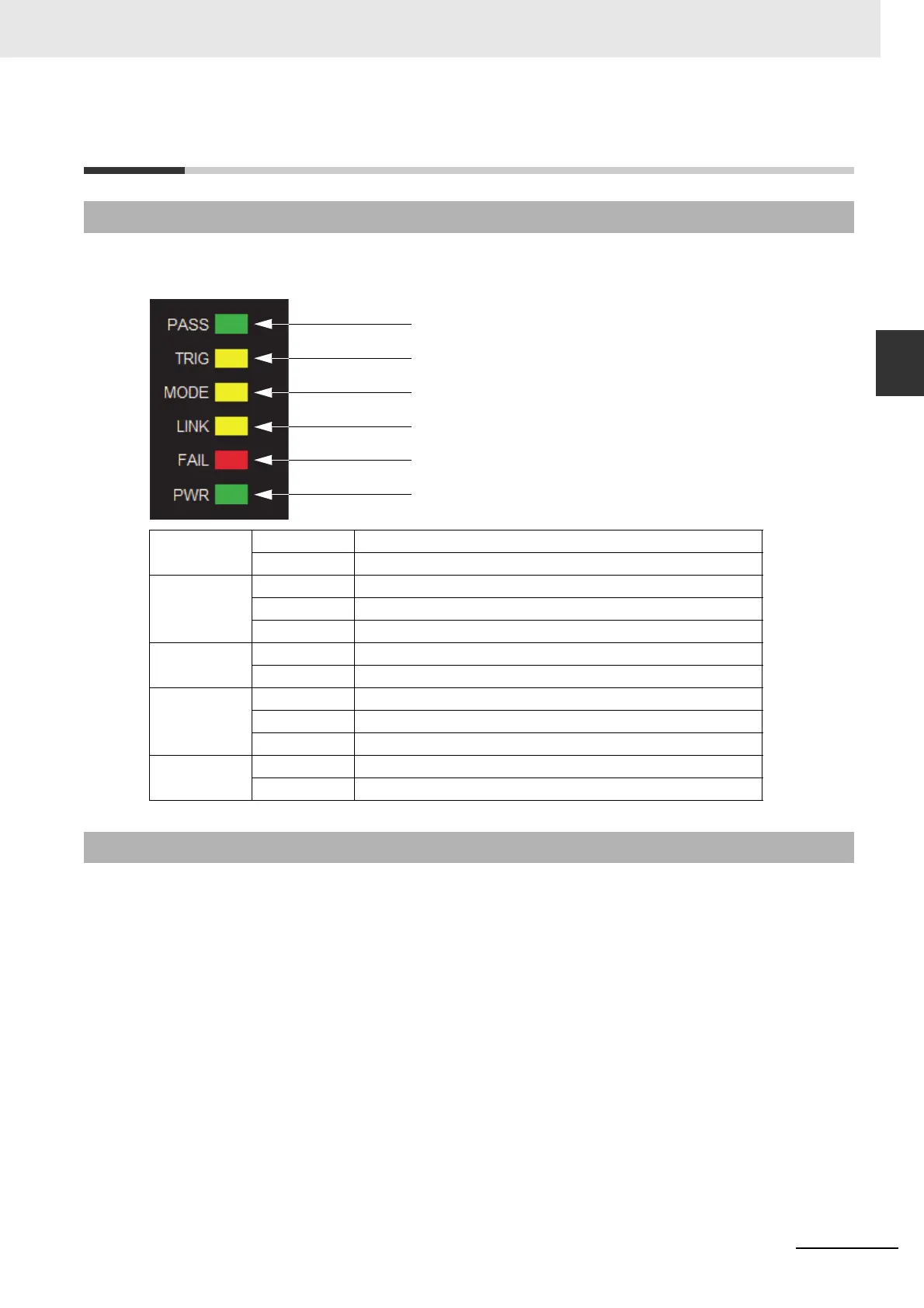

2-10 Status Indicators
2
2-10-1 MicroHAWK F420-F / F430-F Status Indicators
2-10 Status Indicators
The top of the MicroHAWK F420-F and F430-F Smart Cameras have multiple LEDs that indicate different
inspection, trigger, camera, communication, and power states.
• Green Flash – A green flash from the front of the unit indicates a Good Read.
• Blue Targeting Pattern – The blue targeting pattern from the front of the unit allows the user to
center an object in the camera’s field of view.
2-10-1 MicroHAWK F420-F / F430-F Status Indicators
PASS/FAIL
On Active State
Off Inactive State
TRIG
On Steady Continuous Trigger
Off Waiting for Trigger Event
On Flashing Trigger Event
MODE
On Steady Unit Ready
Off Unit Not Ready
LINK
On Steady Link Established
Off No Link/Activity
On Flashing Link Established and Activity on Link
PWR
On Power On
Off No Power Applied to Unit
2-10-2 Additional User Feedback
Trigger Status
Inspection Status
Camera Status
Communication Status
Power Status
Inspection Status
