A-5
Appendix A - Connector Pinouts
MicroHAWK F320-F / F330-F / F420-F / F430-F Smart Camera User Manual
A

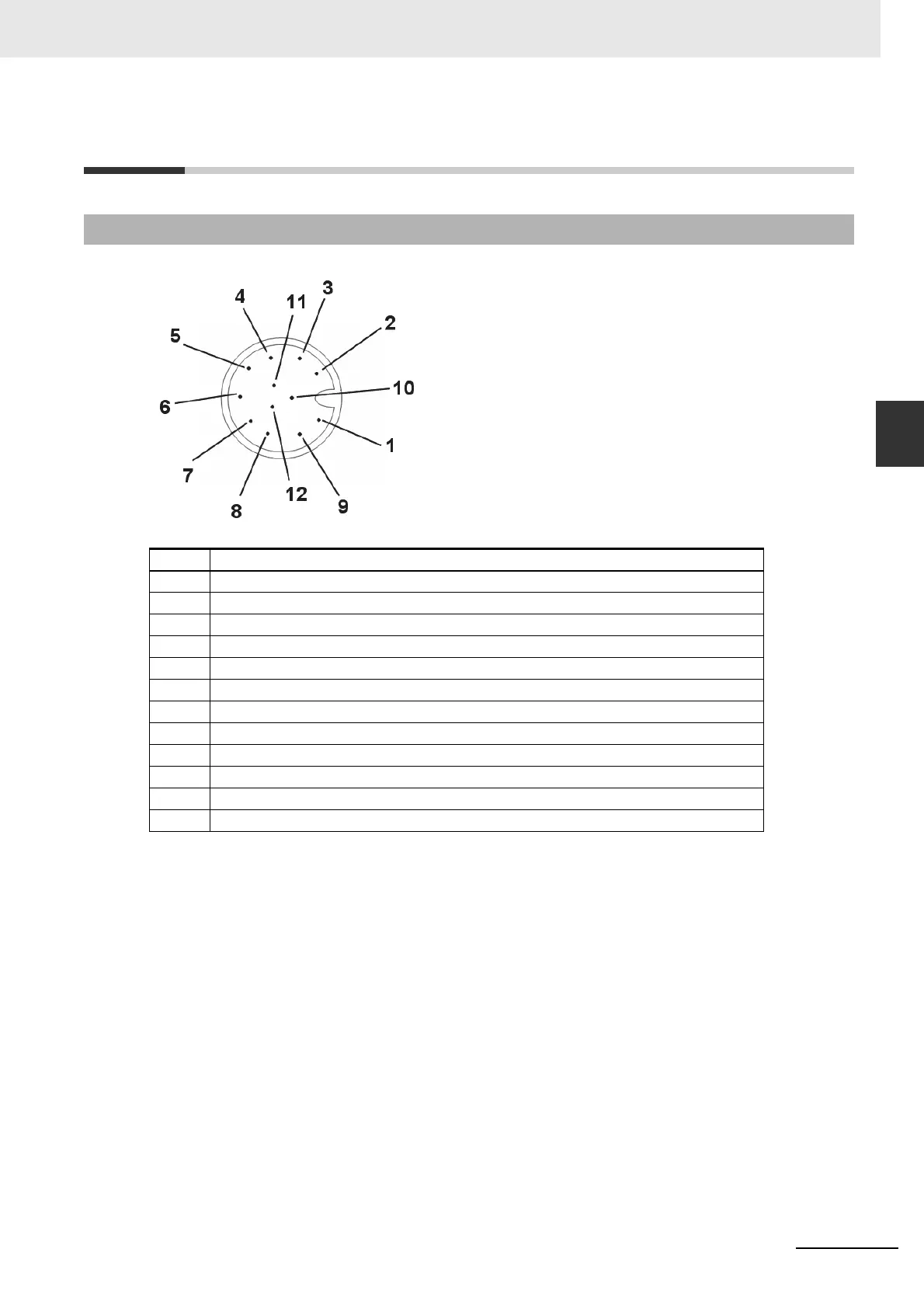

A-4-1 Connector A - M12 12-Pin Plug - Power, I/O, and Serial
A-4 MicroHAWK F430-F Connector
A-4-1 Connector A - M12 12-Pin Plug - Power, I/O, and Serial
Pin Function
1 Trigger
2 Power
3 Default
4 New Master
5 Output 1
6 Output 3
7 Ground
8 Input Common
9 RS-232 (Host) RxD
10 RS-232 (Host) TxD
11 Output 2
12 Output Common
