Safety CPU demo
configuration
IP Address 192.168.1.1

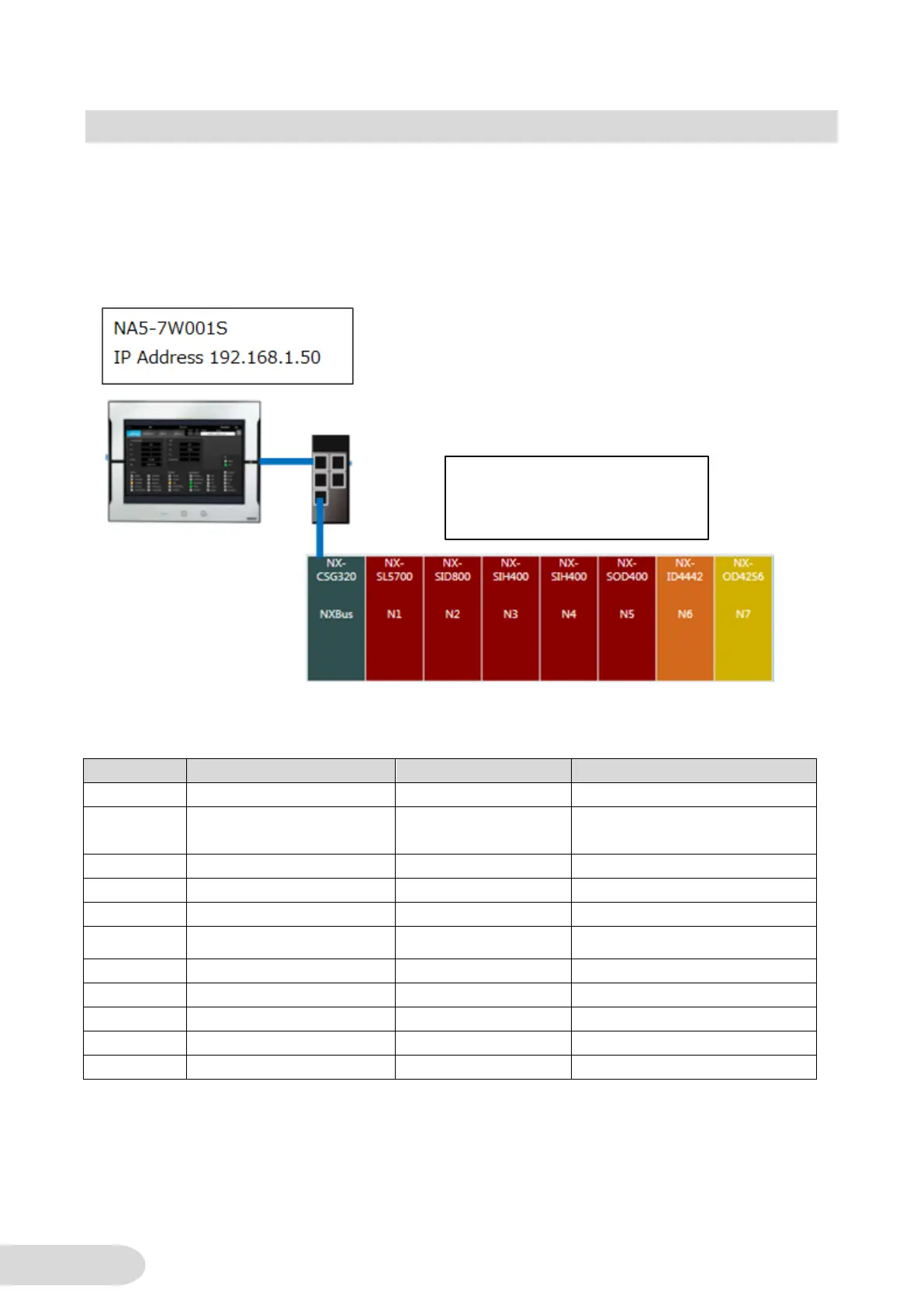

- Demonstration Configuration
Demonstration was validated with the following components.
It is possible to connect another safety CPU configuration to the demonstration project.
Refer to 4-3-1 Add External Devices and 4-3-2 Add Internal Devices" for a setting method.
Manufacturer
Device
Model
Version
Omron
Safety network controller
NX-CSG320
Ver. 1.00
Omron
Programmable terminal
NA5-12W101S
NA: 1.10
Runtime: 1.10.23 OS 7.2.1
Omron
SysmacStudio
SYSMAC-SE□□□□
Ver. 1.25
Omron
PC (OS: Windows7)
Omron
Safety CPU unit
NX-SL5700
Omron
Safety input unit
NX-SID800
NX-SIH400
Omron
Safety output unit
NX-SOD400
Omron
Digital input unit
NX-ID4442
Omron
Digital output unit
NX-OD4256
EtherNet/IP cable x2
Omron
Switching hub
W4S1-05B
