Omron NA Series Practices Guide

54

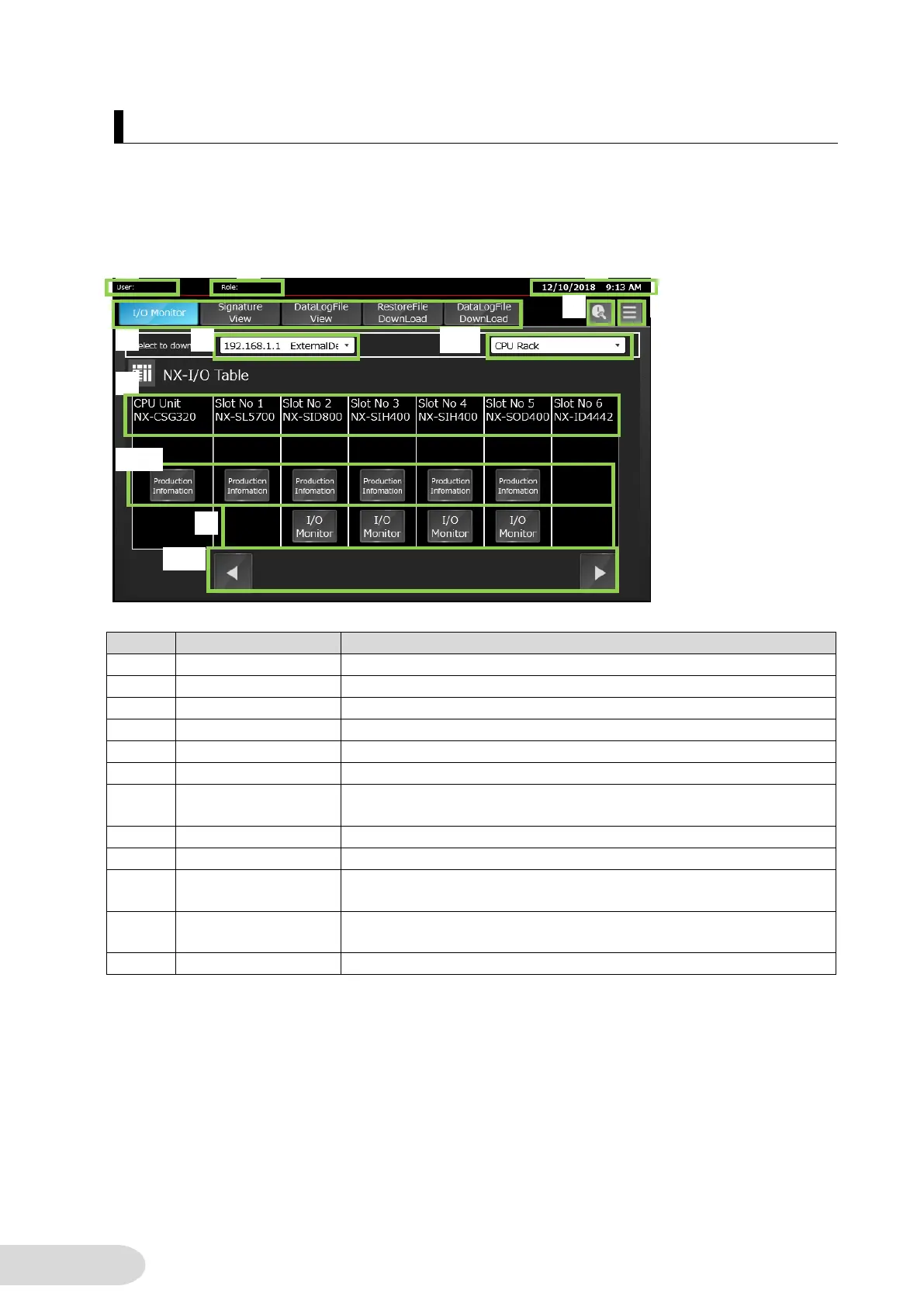

6-3-2 I/O Table Screen
On this screen, an I/O table of the selected controller is displayed.
・Screen Layout
No
Part
Description
1
Data Display
Displays the user name who logging in. It’s due to NA’s security function.
2
Data Display
Shows the logging in user’s authority. It’s due to NA’s security function.
3
Data Display
Displays the current time.
4
Button
Switches to each Safety CPU Demo Screen.
5
Button
Switches to Troubleshooter Screen of the connected controller.
6
Button
Switches to Menu Screen.
7
DropDown
Button
Selects the controller to display its I/O table.
Displays the I/O table of the controller chosen from the dropdown list.
8
Data Display
Displays the I/O table of the connected controller.
9
Button
Switches to the Safety I/O LED Monitor Screen of the selected slot number.
10
Button
Moves the display range when 6 or more units are connected to the
controller.
11
DropDown
Button
Selects the I/O table to display in [8].
12
Button
Displays the selected unit’s production information.
1
2
3
4
8
9
10
5
6
7
11
12

Omron NA Series Specifications

General

Touch Panel	Resistive
Interfaces	USB, Ethernet, RS-232/422/485
Operating Temperature	0°C to 50°C
Power Supply	24 VDC
Protection Rating	IP65 (front panel)
Storage Temperature	-20°C to 60°C
Display Type	TFT LCD
Dimensions	Varies depending on the model
Weight	Varies depending on the model
