6-13
6 Maintenance and Troubleshooting
NB-series Programmable Terminals Startup Guide Manual(V109)
6-3 Troubleshooting
6
6-3-1 Software Trouble
19

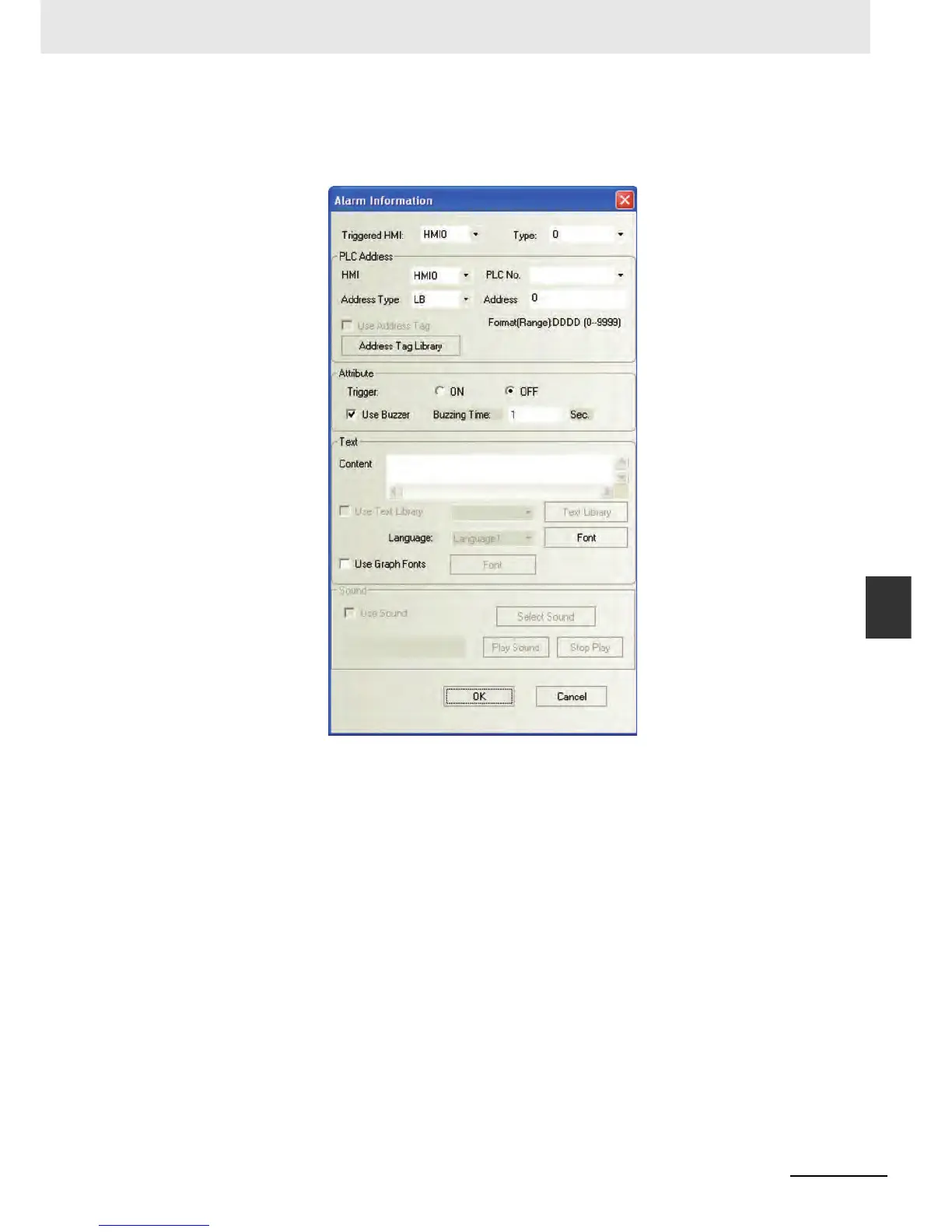

How to make the HMI’s buzzer sound when a warning occurs
Set Buzzer Warning in the warning settings, and the buzzing time can be set as required, as
shown below:
20
When the backlight is dimmed, how to light it up by means of the PLC addresses
Select the PLC control component, then select [Backlight Open], as shown below:
To Next Page
