2 System Design
NB-series Programmable Terminals Startup Guide Manual(V109)
2-2 Demonstration System
2
2-2 Demonstration System
This section takes garage door control as a demonstration system. After NB-Designer is installed, the
project file of this demonstration system will be shown in the Start Menu. Click [Sample Screen(NB7)] in
the [Start]-[All Programs]-[OMRON]-[NB-Designer]-[Screen Data] to open the demonstration project.
Please note that the demonstration project includes macro files, so it can only be edited by running as
an administrator in Vista or Win7 systems. Run the NB-Designer as the administrator, and then open the
demonstration project in the [project]-[DemoProject_NB7W] file of NB-Designer’s installation directory.
z Operation

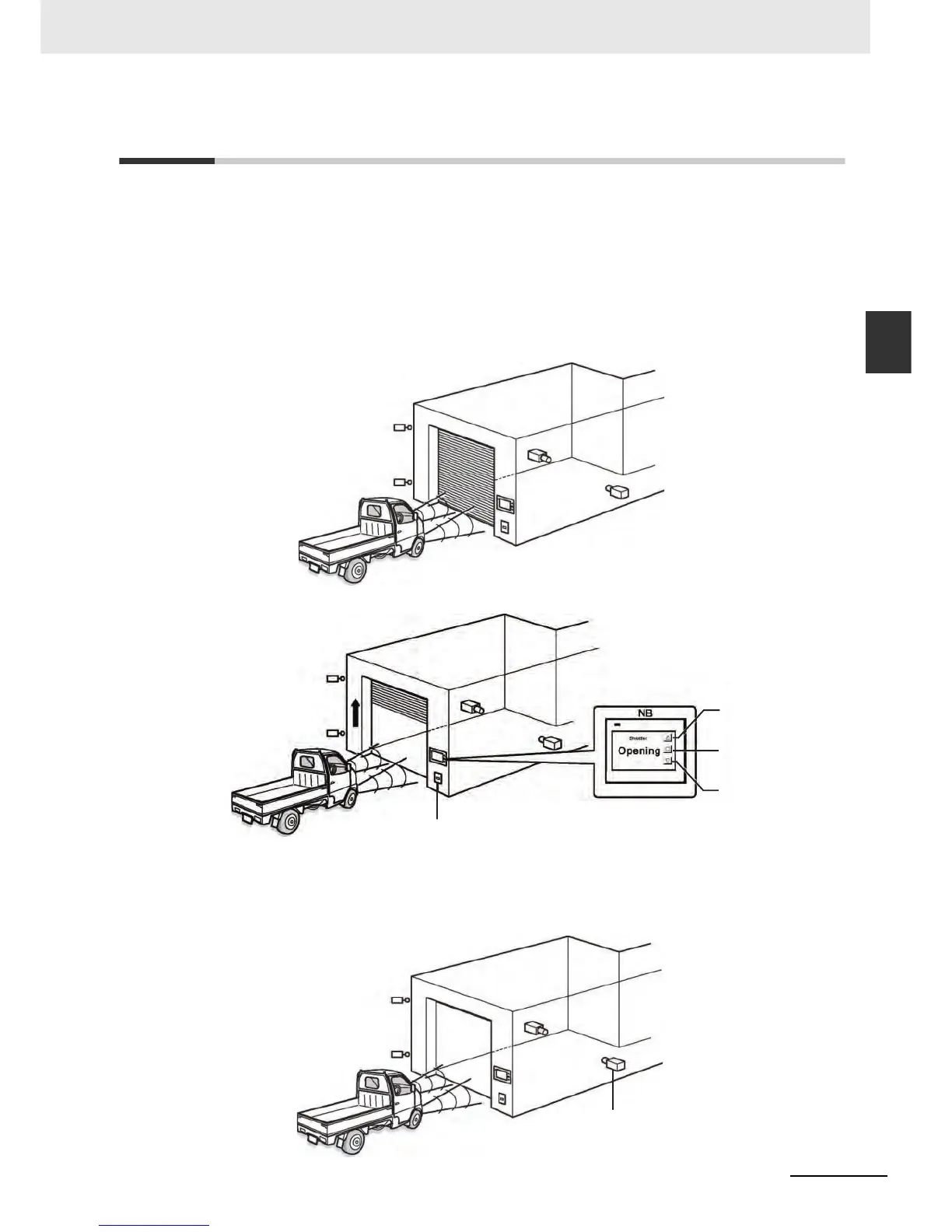

The demonstration system opens/closes the garage door according to inputs from NB7W and the sensors.
•
The garage door opens when the sensors detect three times of flash of headlights within 10 seconds.
• The state of garage door is displayed on NB7W. The open, close or stop operations of garage
door can also be controlled by related switches on display device.
a Light sensor b OPEN switch
c STOP switch d CLOSE switch
a
b
c
d
a
a Vehicle sensor
