4 Screen Creation
NB-series Programmable Terminals Startup Guide Manual(V109)
4-4 Screen Creation
4
4-4 Screen Creation
This part describes how to create screens displayed on NB7W.
[1 Wait] is the first display screen in the garage door control system. The screen will be displayed with
the lower limit LS ON.
Configure functions below:
• Bar Picture component, indicating numbers of flash of headlights detected in forms of graphics.
• Bit State Setting components, allocated to [Open], [Stop] and [Close] garage door operations
respectively.
• Bit State Setting component, for accessing the maintenance screen. The component turns ON when
the button is pressed for 3 seconds.

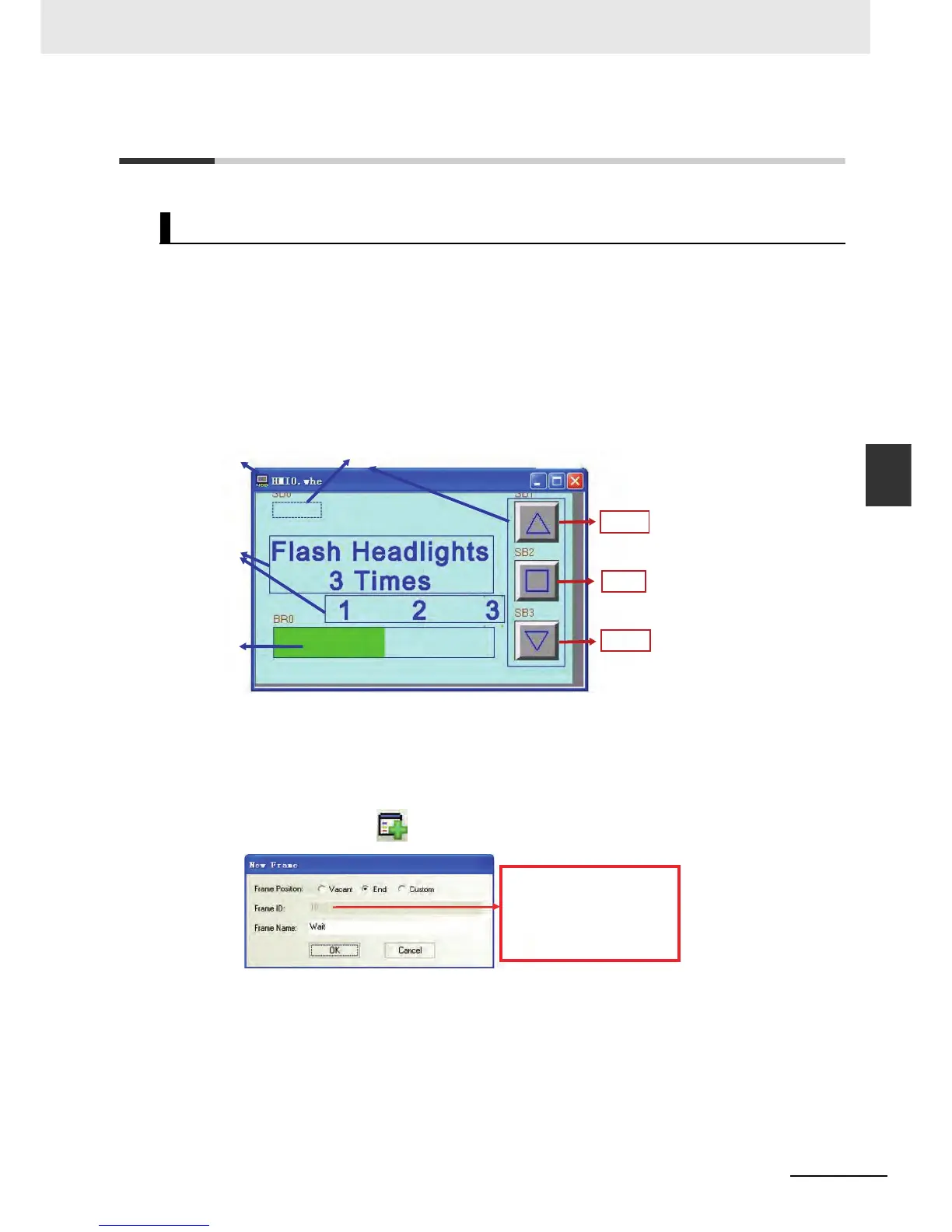

The whole screen is shown below. The following objects must be created and configured:
a Screen b Bit State Setting components c Texts d Bar Picture component
z Screen
Start the following procedures after the NB7W operation is set.
1
Select [Add Window] from the toolbar. Input “Wait” at the window name area.
[1 Wait]
a
c
d
b
Use the vector graphic: Up.vg
Address: W_bit 1.00
Use the vector graphic: Middle.vg
Address: W_bit 1.01
Use the vector graphic: Down.vg
Address: W_bit 1.02
[Open]
[Stop]
[Close]
The initial design frame ID is 0,
named “Frame0”, when user
added a new frame, the frame ID
start from 10 by default.
Frame 1 to 9 are default frames
for the system.
