4-3 Creating Project
4
4-3 Creating Project
This section describes how to configure settings of NB7W operations and create targets effectively. The
date created through NB-Designer are regarded as “Project”.
Project creation should be started with setting the configuration plan when using NB-Designer the first
time.
1

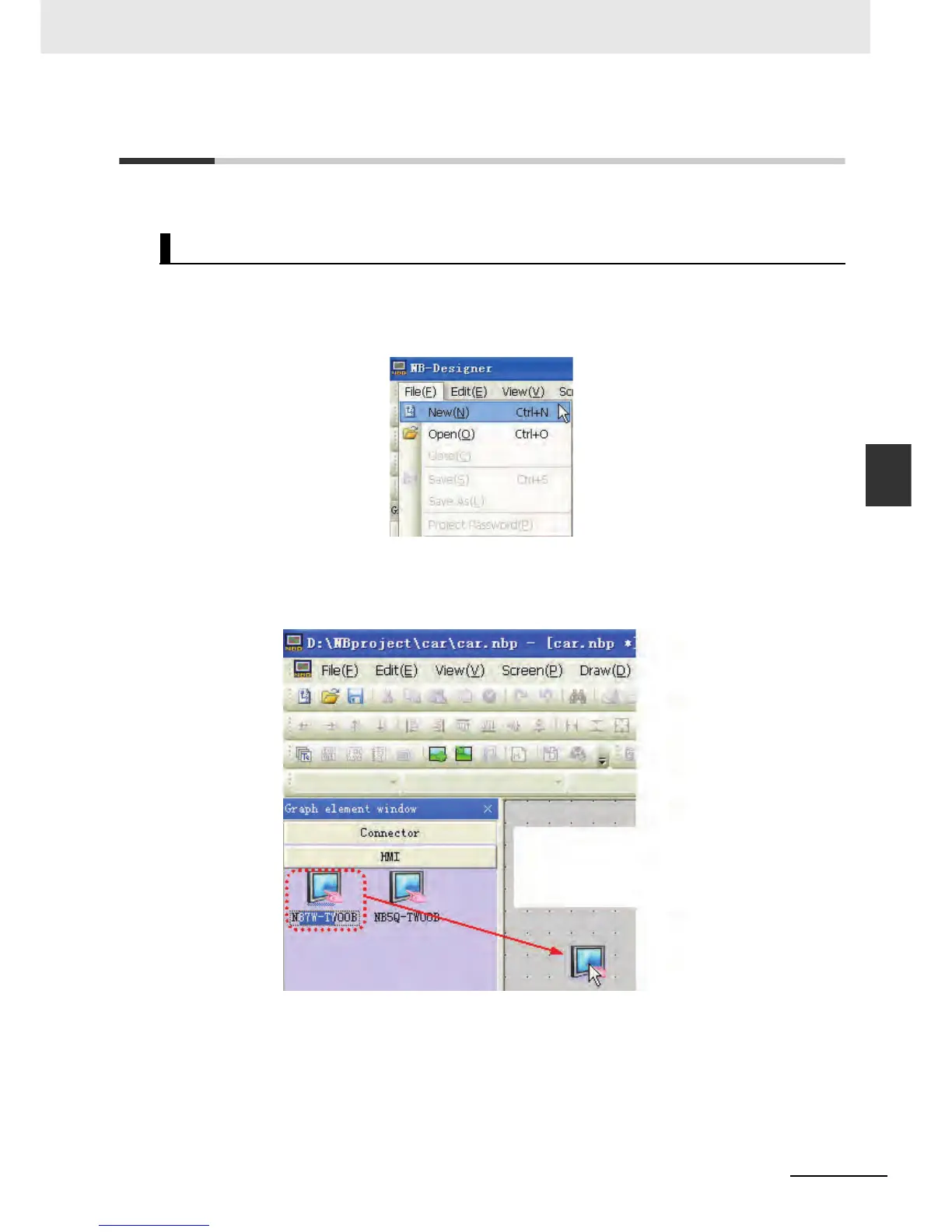

Select [File]-[New] from the main menu. The [New Project] dialogue border will pop up.
2
Select [NB7W-TW00B] from [HMI] Element Library, drag HMI to the design window after
selecting it with a single-click.
Select “horizontal” for HMI display Mode.
Note
This project can also be made by using HMI of NB7W-TW01B with the same method used for NB7W-TW00B.
Creating New Project
Drag it to the design
window after selecting
it with a single-click.
