4 Screen Creation
4-6
NB-series Programmable Terminals Startup Guide Manual(V109)

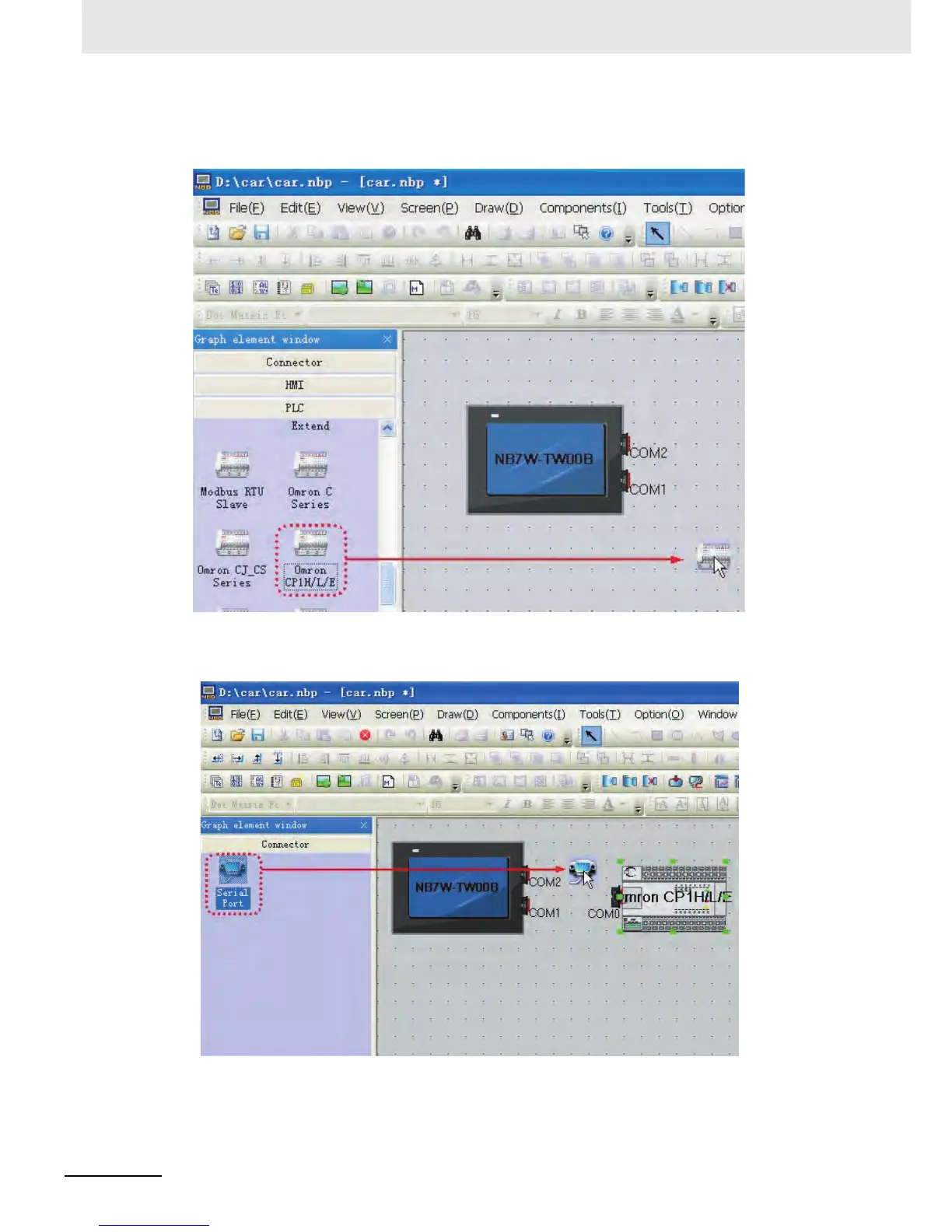

3 Select [Omron CP1H/L/E] from [PLC] Element Library, drag PLC to the design window after
selecting it with a single-click.
4 Select [Serial Port] from [Connector], drag it to the design window after selecting it with a single-
click.
