4 Screen Creation
NB-series Programmable Terminals Startup Guide Manual(V109)
4-5 HMI Attribute
4
4-5 HMI Attribute
1

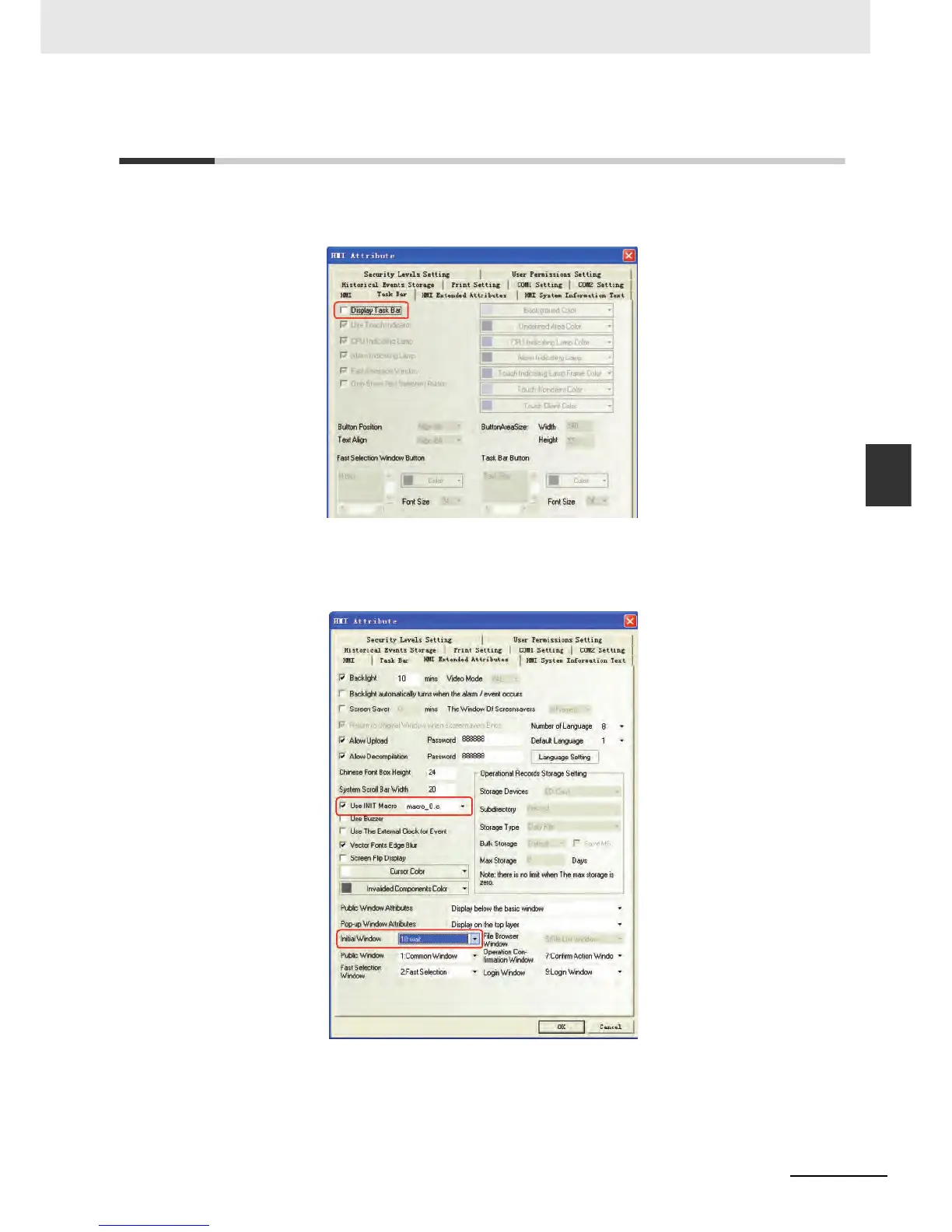

Select “Task Bar” page on “HMI Attribute” window and in this project example, the “Display Task
Bar” is not checked. Click OK button to save the settings.
2
Select “HMI Extended Attributes” page in “HMI Attribute” window and in this project example,
the “Use INIT Macro” item is selected and the “Initial Window” is set to “[10 Wait] screen”. Click
OK button to save the settings.
The default “Initial Window” is “0: Frame0” when HMI has not created a window screen. The serial
number and name of the window will appear in the pull-down menu of “Initial Window” after the user
establishes the window screen.
