4 Screen Creation
NB-series Programmable Terminals Startup Guide Manual(V109)
4-2 Main Window of NB-Designer
4

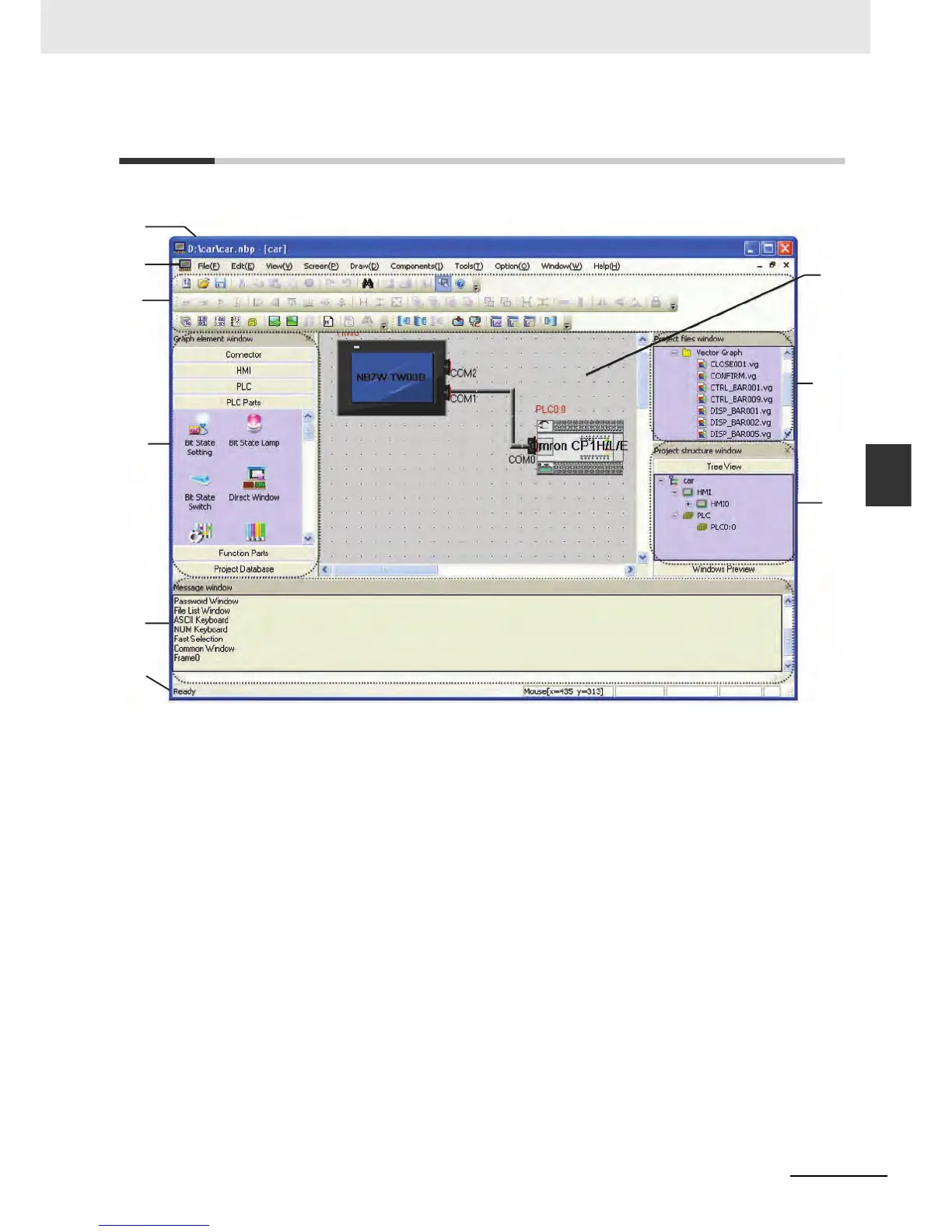

4-2 Main Window of NB-Designer
This section describes the functions of each part of the main window of NB-Designer.
(a) Title Bar
Indicating the names of applications.
(b) Menu Bar
Classifying the functions of NB-Designer in groups. Grouping functions are indicated in the form of
pull-down menu.
(c) Toolbar
Displaying icons for common functions. The function names will be indicated when the cursor is put
on related icons. The toolbar contains sub-toolbars for basic functions, such as drawing, position,
system, page up/down, database, compilation and debugging, etc.
(d) Graph Element Window
The Graph Element Window contains: Communication Connection, HMI, PLC, PLC Parts,
Function Parts and Project Database.
(e) Message Window
Displaying the compilation process of a project and providing compilation error information.
(f) State Bar
Displaying information such as the current cursor position, the width/height of the target object and
the editing state, etc.
(g) Design Window
The window is used for designing images and setting the communication method between the HMI
and PLC.
g
h
i
f
e
d
c
b
a
