4 Screen Creation

4-12

NB-series Programmable Terminals Startup Guide Manual(V109)

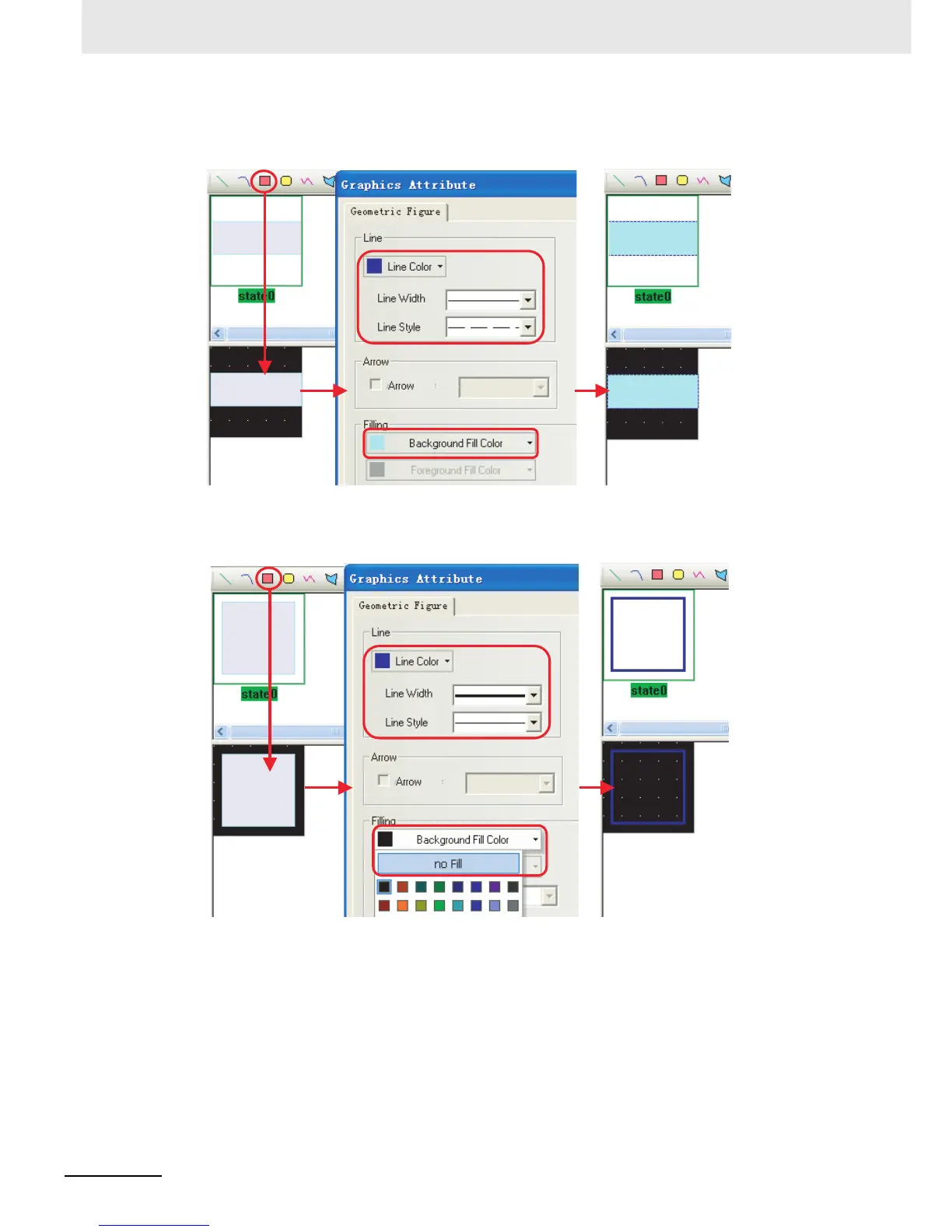

Create a vector graphics “Dashed.vg”: first add a light cyan rectangle into the graphics, and then

make the related settings in the “Graphics Attribute” dialog box, as shown below:

Create a vector graphics “BlueFrame.vg”: first add a blue hollow rectangle into the graphics, and

then make the related settings in the “Graphics Attribute” dialog box, as shown below:
