6 Maintenance and Troubleshooting
6-22
NB-series Programmable Terminals Startup Guide Manual(V109)

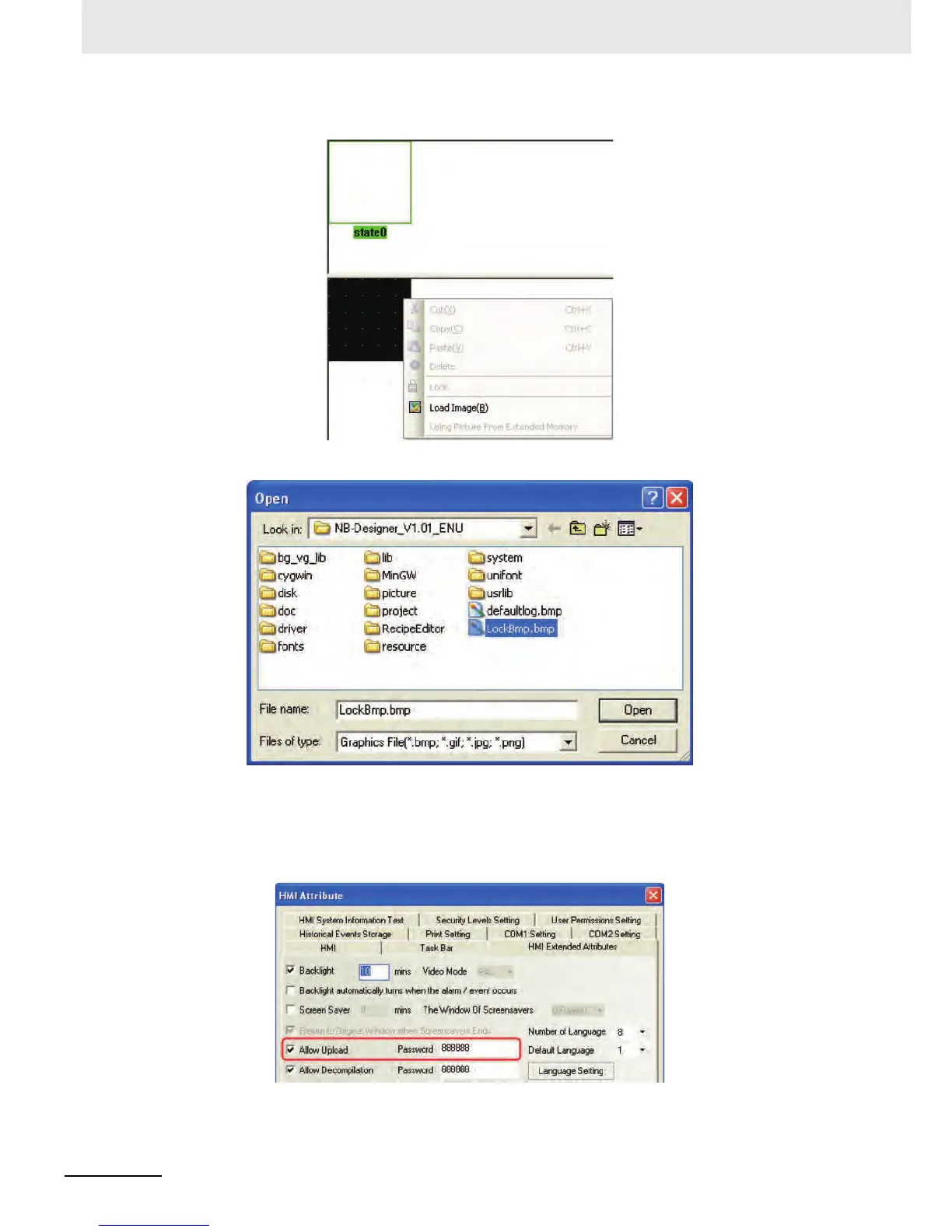

(b) In the dialogue box that pops up, right-click “Load Image”.
(c) Choose the picture to be imported
(d) After a successful import, the imported picture can be used in programs
31
How to restrict programs in the HMI from being uploaded
In [HMI Attribute] Æ [HMI Extended Attributes] Æ [Allow Upload], set a password to achieve this
purpose, as shown below:
