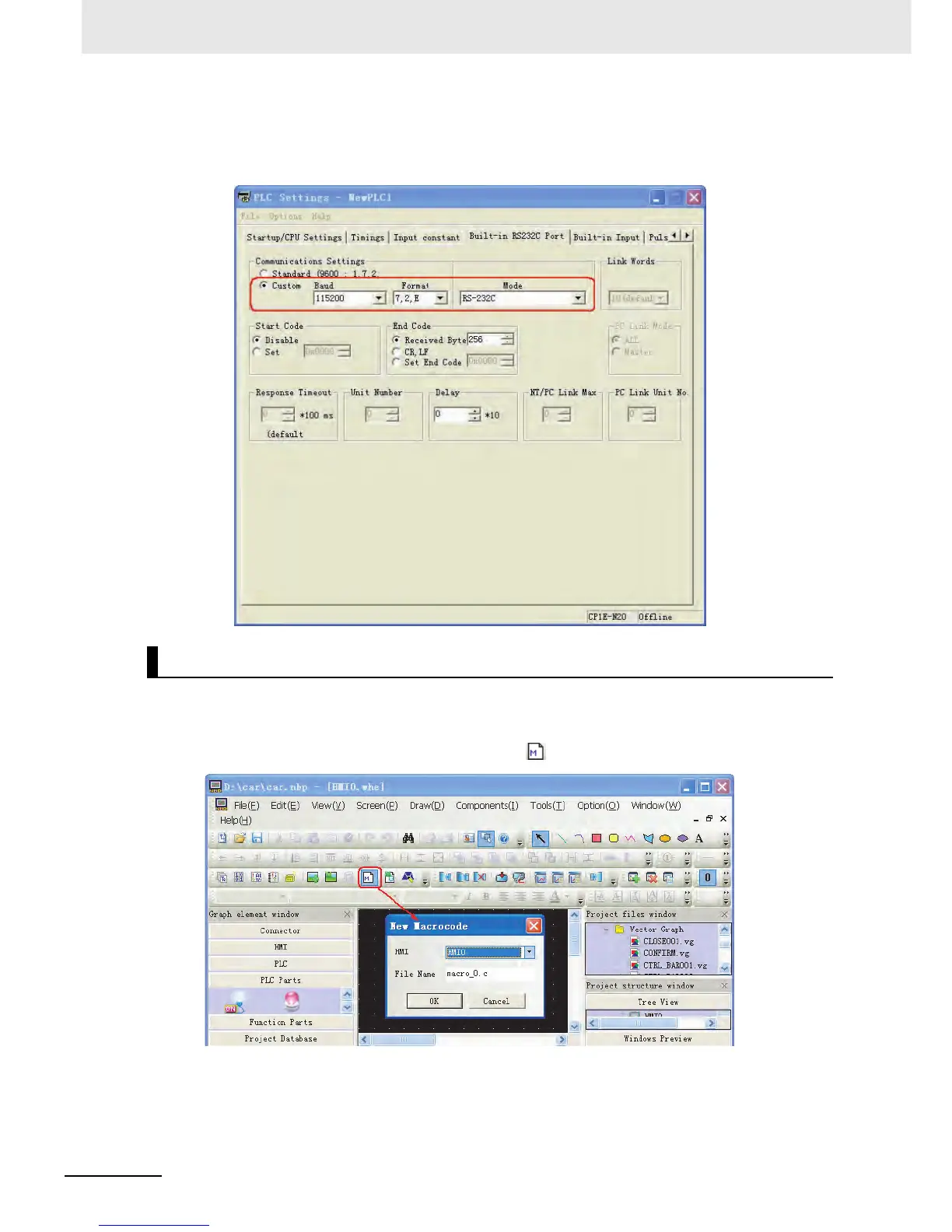

To setting the PLC: In “CX-Programmer” open the project, in project workspace select [PLC
Settings]. Be sure to set the communication mode of PLC [Built-in RS232C Port] to “RS232C,
115200, 7, Even Parity Check, 2”.
This project uses Macro files to initialize the addresses of LW.B 10.0 to 1, thus initializing the Bit State
Lamp on the [Stop] screen.
1
User could establish a macro file with the icon through the menus or toolbar.
Creating Macro
