4 Connecting to Schneider PLCs
4-8
NB-series Programmable Terminals Host
Connection Manual (V108)
4

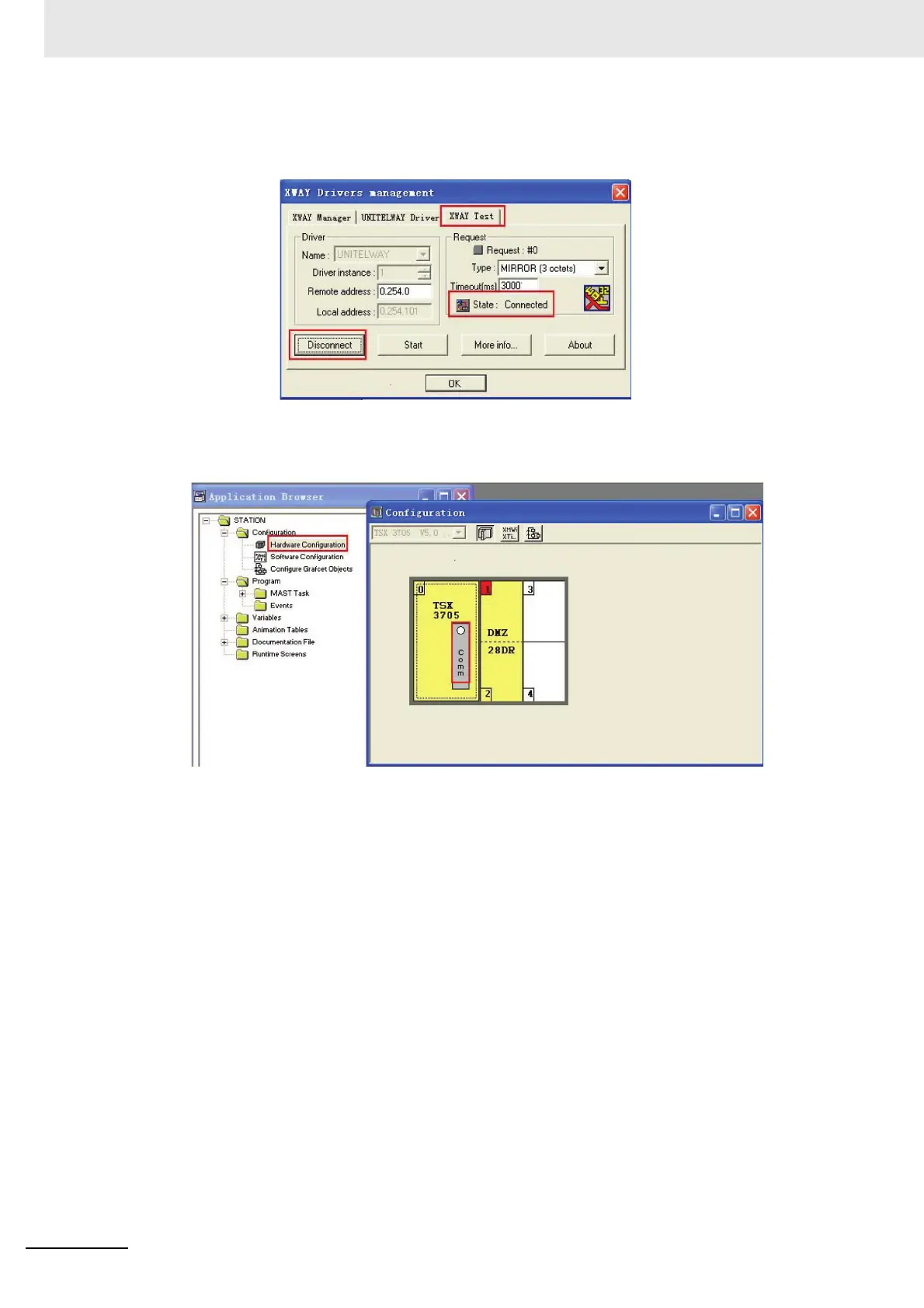

Click [XWAY Test]
[Connect] and the Connected prompt
information will
appear when the
connection is successful.
5
Open PL7 Software
New
Click [Hardware Configur
ation] in [STATION]
Double-click [comm]
in popup window.
