3 Connecting to Mitsubishi PLCs
NB-series Programmable Terminals Host Connection Manual (V108)
3-3 Communication Setting
3
3-3-4 When Using Mitsubishi Q00J (CPU Port) Communication Protocol

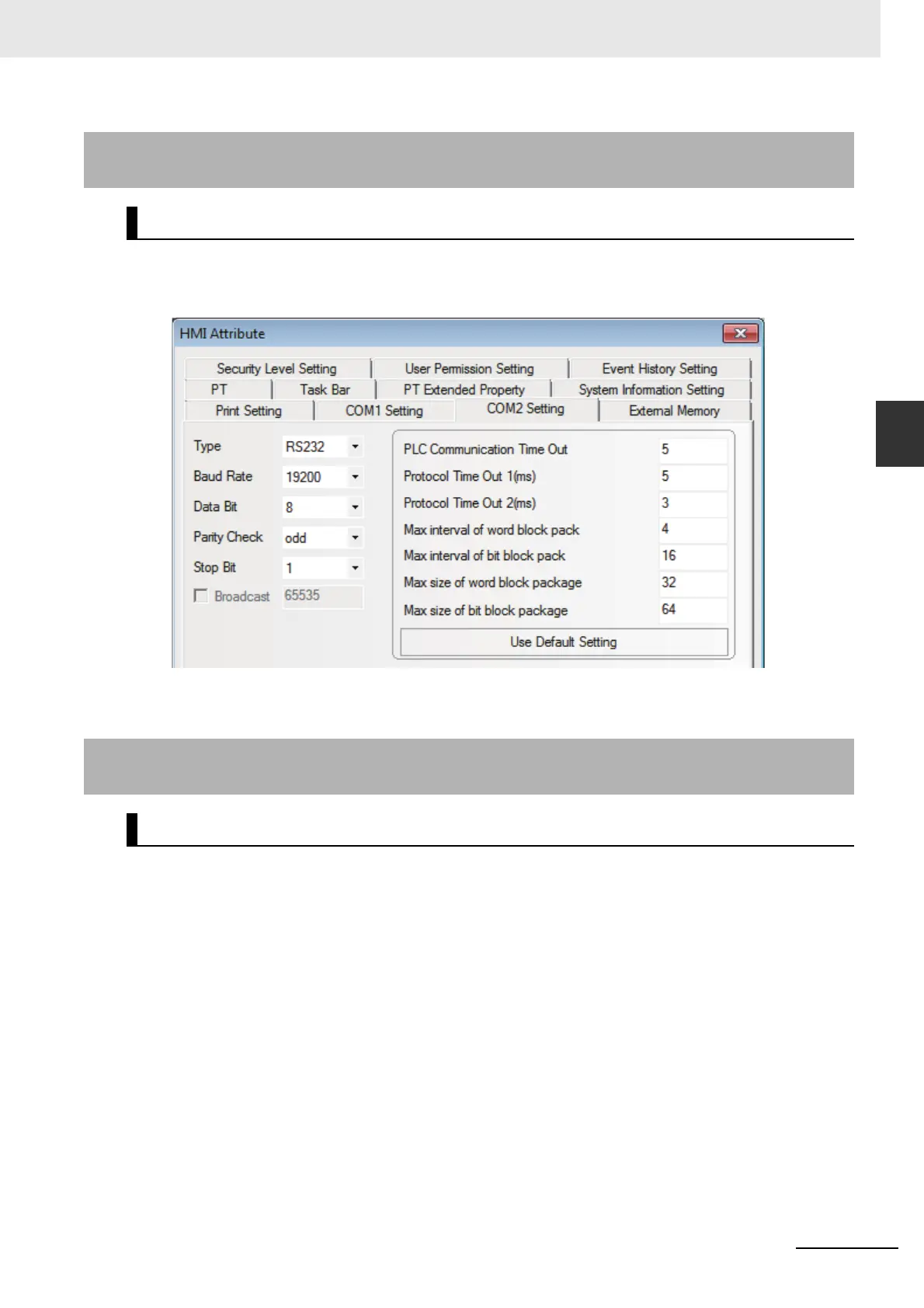

PT default communication parameters: 19200bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1 (Stop
Bit) and 0 (PLC Station No.) (Multiple Station No. is not supported.)
RS232 Communication
Note There is no need to set PLC baud rate that will automatically vary with the baud rate set by PT.
PT default communication parameters: 115200bps (Baud Rate), 8 (Data Bit), odd (Parity Check), 1
(Stop Bit) and 0 (PLC Station No.) (Multiple Station No. is not supported.)
3-3-4 When Using Mitsubishi Q00J (CPU Port) Communication
Protocol
PT Settings
3-3-5 When Using Mitsubishi Q series (CPU Port) Communication
Protocol
PT Settings
