6 Connecting to Delta PLCs
6-4
NB-series Programmable Terminals Host
Connection Manual (V108)
6-3

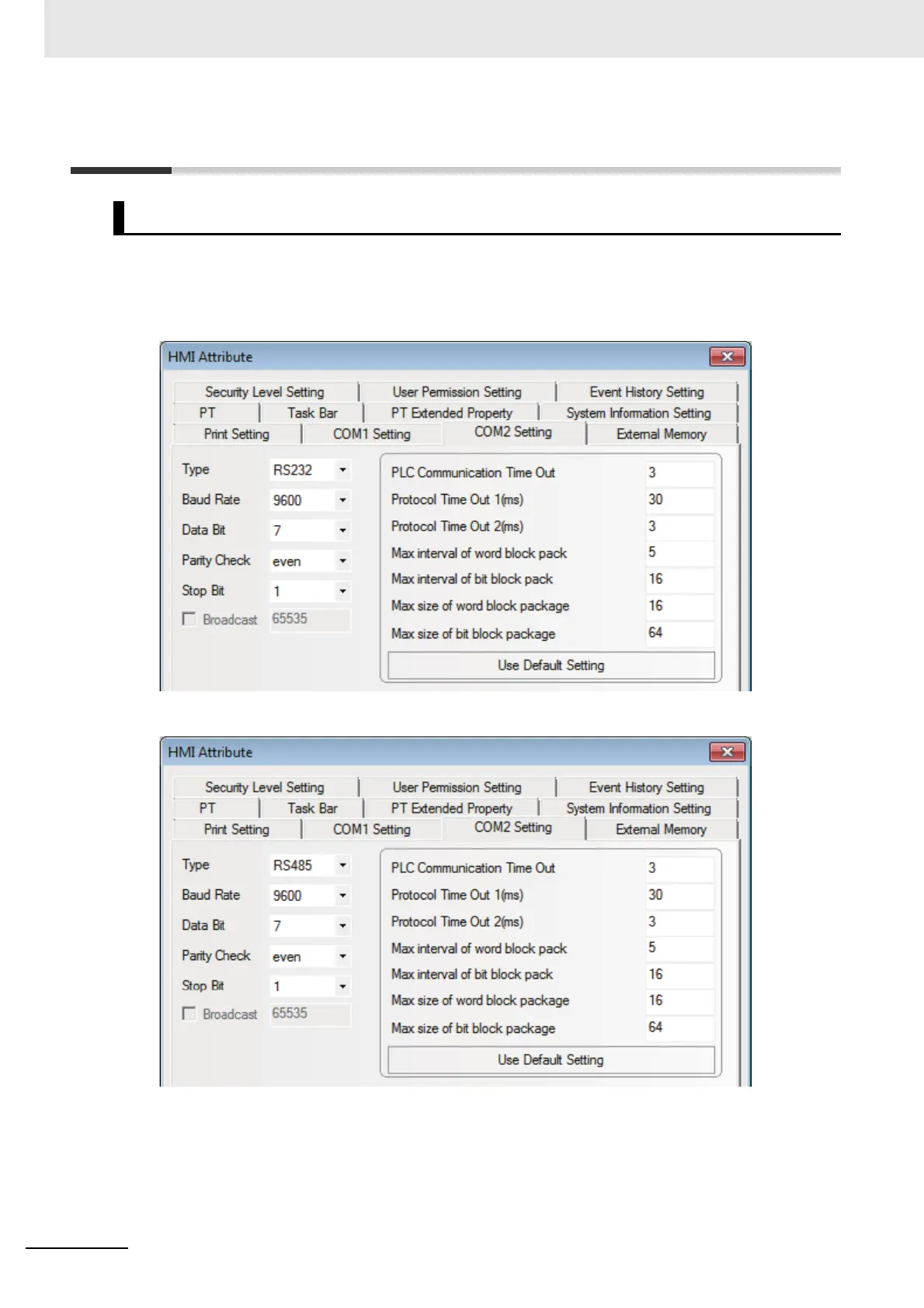

Communication Parameter Setting
PT default communication
parameters: 9600bps (Bau
d
Rate), 7 (Data Bit), even (Par
ity Check), 1 (Stop
Bit) and 1(PLC Station No.)
RS232 Communication
RS485 Communication
Note
The
communication para
meters should be set thro
ugh modification of D112
0 value when RS485 communi-
cation is used.
PT Settings
