3 Connecting to Mitsubishi PLCs
3-12
NB-series Programmable Terminals Host Connection Manual (V108)
.
PT default communication parameters: 9600bps (Baud Rate), 8 (Data Bit), even (Parity Check), 1 (Stop
Bit) and 0 (PLC Station No.)
Note This protocol can be used when communicating with the PLC through the programming port of the CPU and
the Functions Extension board. The baud rate is fixed to 9600 bps. If the baud rate is set to the other speed,
the communications cannot be available. The protocol does not support the multiple station No. of the Func-
tions Extension board.
RS232 Communication
RS422 Communication
3-3-3 When Using FX2N-10GM/20GM Communication Protocol

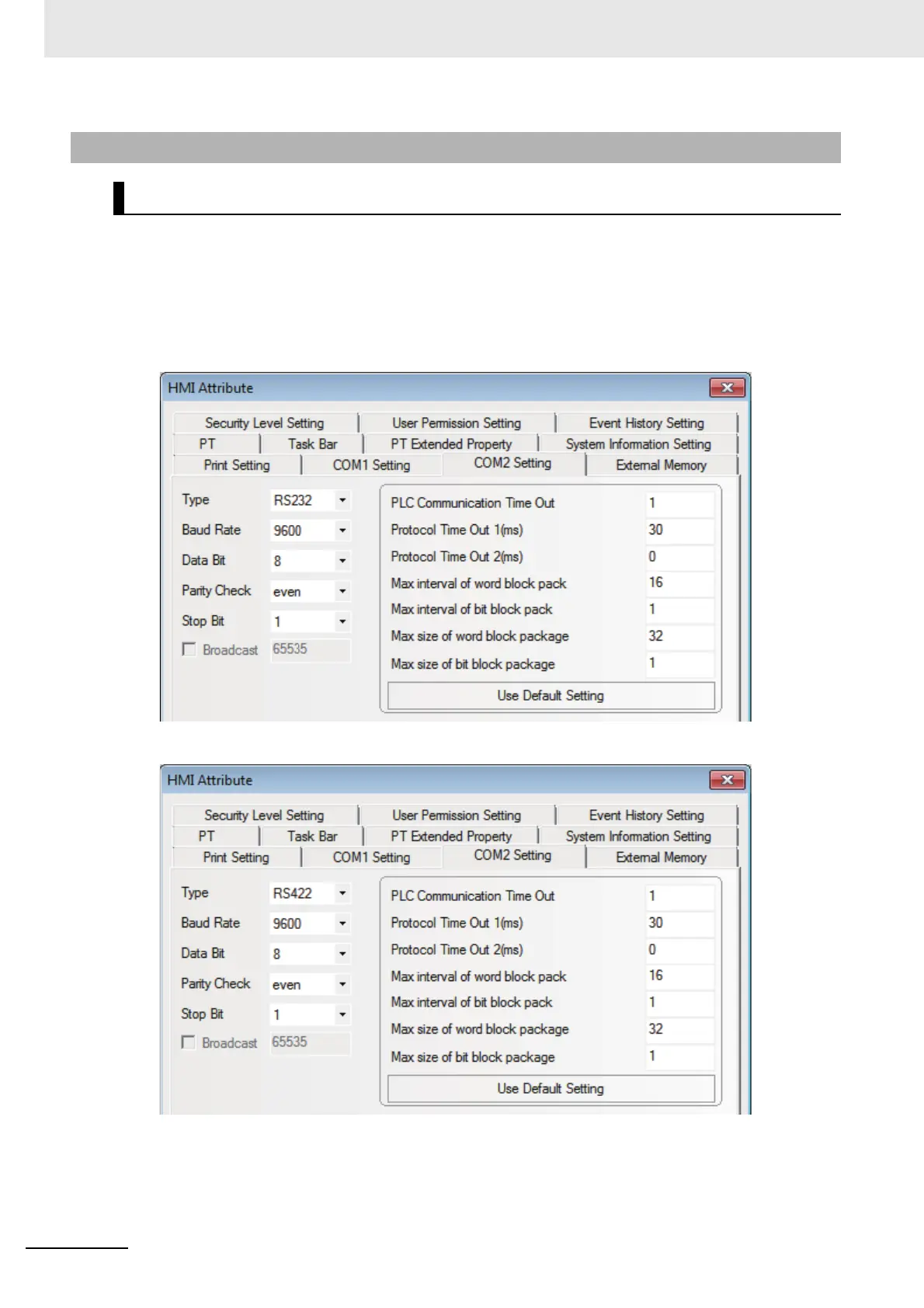

PT Settings
To Next Page
