3 Connecting to Mitsubishi PLCs
NB-series Programmable Terminals Host Connection Manual (V108)
3-3 Communication Setting
3
3-3-2 When Using Mitsubishi FX-485ADP/485BD/232BD (Multi-station) Communication Protocols
PT default communication parameters: 19200bps (Baud Rate), 7(Data Bit), even (Parity Check), 2
(Stop Bit) and 0 (PLC Station No.)
Note: The protocols are only applicable to PLCs communicating through communication function
expansion board and support Multiple Station No. and Baud Rate settings.
RS422 Communication
RS232 Communication
3-3-2 When Using Mitsubishi FX-485ADP/485BD/232BD (Multi-station)
Communication Protocols

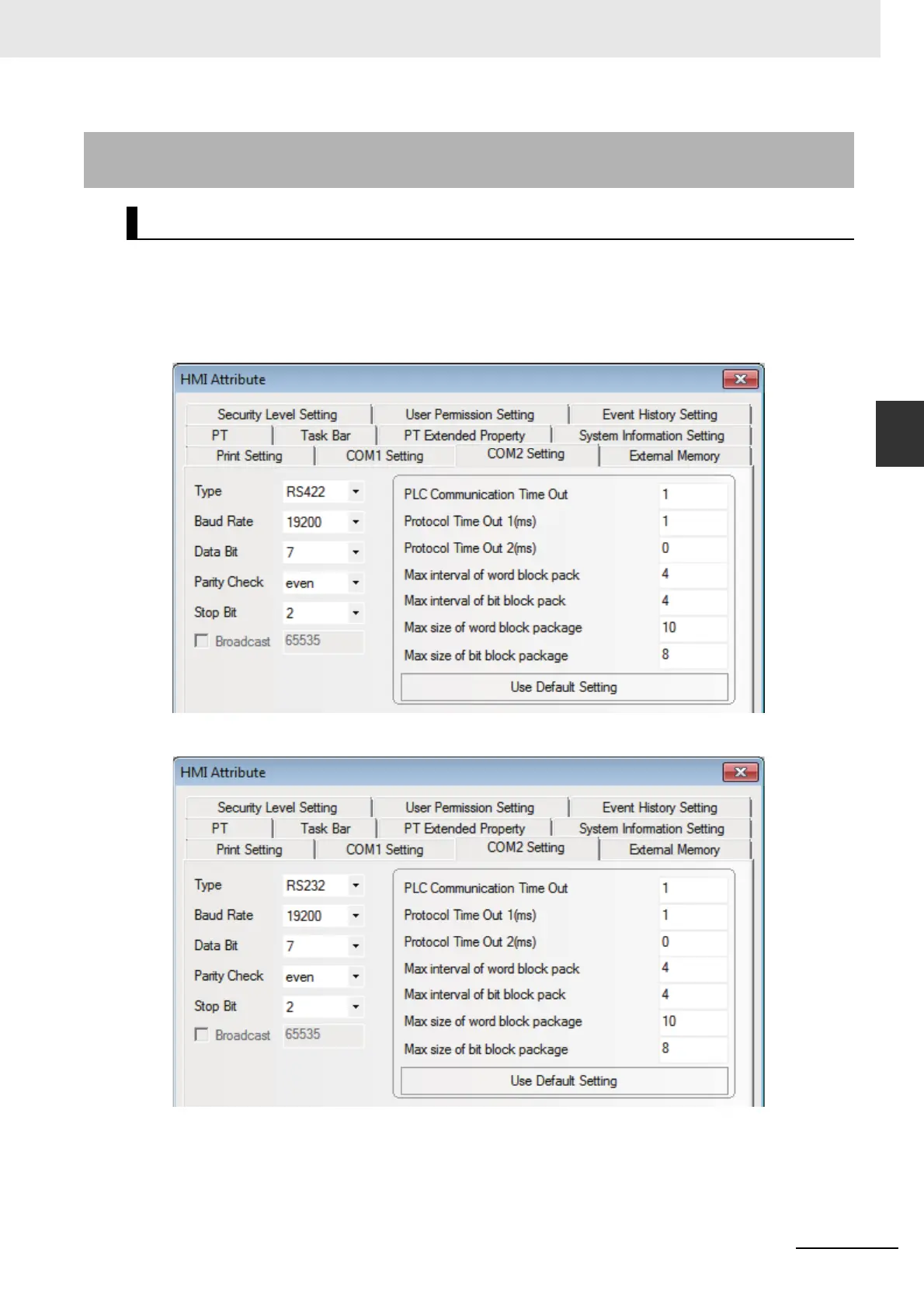

PT Settings
