3-15
3 Connecting to Mitsubishi PLCs
NB-series Programmable Term
inals Host Connection Manua
l (V108)

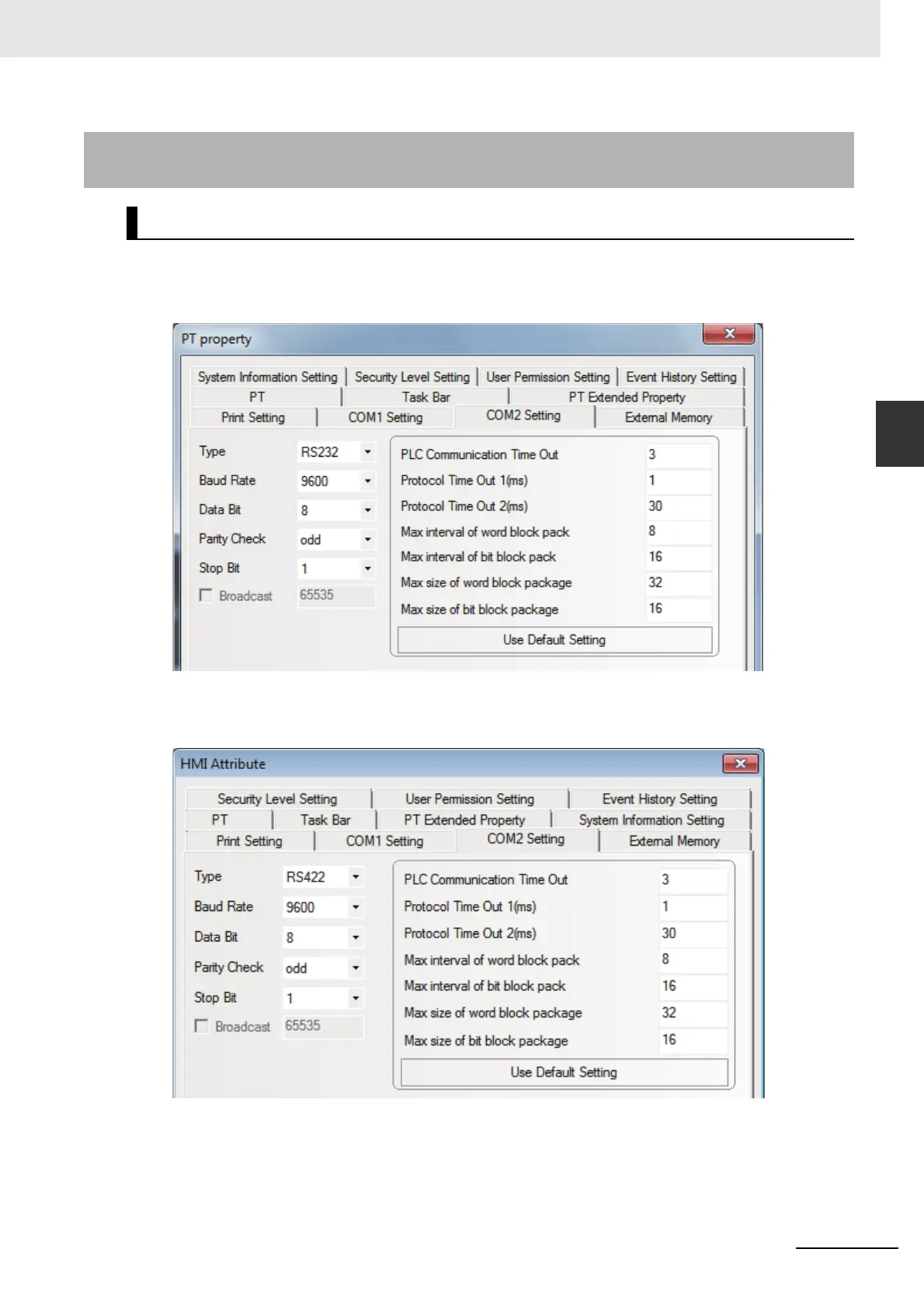

3-3 Communication Setting
3
3-3-7 When Using Mitsubishi Q_QnA
(Link Port) Communication Protocol
PT default communication par
ameters: 9600bps (Baud
Rate), 8 (Data
Bit), odd (Parity Check),
1 (Stop
Bit) and 0 (PLC Station No.)
RS232 Communication
RS422 Communication
3-3-7
When Using Mitsubishi Q_
QnA (Link Port) Communication
Protocol
PT Settings
80
82
Table of Contents
Default Chapter
5
Introduction
5
NB-Series Manuals
6
Manual Structure
8
Terminology
9
Table of Contents
11
Terms and Conditions Agreement
15
Safety Precautions
17
Precautions for Safe Use
20
Precautions for Correct Use
22
Conformance to EC Directives
23
Related Manuals
24
List for All Plcs Supported by NB Series
27
Lists for Supported PLC
28
Definition and Description of Serial Port COM
33
Connecting to SIEMENS Plcs
35
Serial Port and Ethernet
36
Serial Port
36
Ethernet
36
Communication Parameters and Cable Fabrication
37
Serial Port
37
Ethernet
37
Communication Parameter Setting
38
When Using SIEMENS S7-200 Communication Protocol
38
When Using SIEMENS S7-300/400 (PC Adapter Direct) Communication Protocol
39
SIEMENS S7-200 (SMART) Ethernet (TCP Slave)
42
SIEMENS S7-300 Ethernet (TCP Slave)
51
SIEMENS S7-1200 Ethernet (TCP Slave)
57
Supported Registers
61
Siemens S7-200
61
SIEMENS S7-300/400 (PC Adapter Direct)
62
SIEMENS S7-200 (Smart) Ethernet (TCP Slave)
62
SIEMENS S7-300 Ethernet (TCP Slave)
63
SIEMENS S7-1200 Ethernet (TCP Slave)
64
Cable Fabrication
65
Connecting to Mitsubishi Plcs
67
Serial Port and Ethernet
68
Serial Port
68
Ethernet
69
Communication Setting and Cable Connection
71
Serial Port
71
Ethernet
72
Communication Setting
73
When Using Mitsubishi FX1S, Mitsubishi FX1N/2N/3G and Mitsubishi FX3U Communication Protocols
73
When Using Mitsubishi FX-485ADP/485BD/232BD (Multi-Station) Communication Protocols
75
When Using FX2N-10GM/20GM Communication Protocol
78
When Using Mitsubishi Q00J (CPU Port) Communication Protocol
79
When Using Mitsubishi Q Series (CPU Port) Communication Protocol
79
When Using Mitsubishi Q06H Communication Protocol
80
When Using Mitsubishi Q_Qna (Link Port) Communication Protocol
81
When Using Mitsubishi FX Series Ethernet(TCP Slave) Communication Protocol
86
When Using Mitsubishi Qna 3Ebin Ethernet (TCP Slave) Communication Protocol
89
When Using Mitsubishi QJ71E71 Ethernet Slave Communication Protocol
92
When Using Mitsubishi QJ71E71 Ethernet Slave Communication
92
Protocol
92
Supported Registers
95
Cable Fabrication
101
Connecting to Schneider Plcs
103
Serial Port Communication
104
Communication Parameters and Cable Fabrication
105
Communication Parameter Setting
106
Supported Registers
115
Cable Fabrication
116
Modbus Connection
117
Serial Port and Ethernet
118
Communication Parameters and Cable Fabrication
119
Communication Parameter Setting
120
Supported Registers
123
Cable Fabrication
125
Modbus Protocol
126
Introduction to Modbus Protocol
126
When NB Adopts Modbus TCP Protocol (Master/Slave Mode)
127
Example of NB as Modbus Slave
128
Example of Connection Using Modbus TCP Protocol
131
Example of E5CC/E5EC, 3G3MX2 Connection Using Modbus RTU Extend Protocol
132
Example of E5CC/E5EC, 3G3MX2 Connection Using Modbus RTU Extend
132
Example of Power PMAC Motion Controller Using Modbus TCP Slave Protocol
134
Protocol
134
Connecting to Delta Plcs
137
Serial Port Communication
138
Communication Parameters and Cable Fabrication
139
Communication Parameter Setting
140
Supported Registers
142
Cable Fabrication
143
Connecting to LSIS Plcs
145
Serial Port Communication
146
Communication Parameters and Cable Fabrication
147
Communication Parameter Setting
148
Supported Registers
156
Cable Fabrication
159
Connecting to Panasonic Industrial Devices SUNX Plcs
161
Serial Port Communication
162
Communication Parameters and Cable Fabrication
163
Communication Parameter Setting
164
Supported Registers
165
Cable Fabrication
166
Connecting to Allen-Bradley (Rockwell) PLC
169
Serial Port Communication and Ethernet
170
Serial Port
170
Ethernet
170
Ethernet
171
Communication Parameters and Cable Fabrication
172
Serial Port
172
Ethernet
172
Communication Parameter Setting
173
When Using AB Slc500/Micrologix Series (DF1) Protocol
173
When Using AB Compactlogix/Controllogix Series (DF1) Protocol
175
AB Micrologix Series Ethernet(TCP Slave)
179
Supported Registers
182
Cable Fabrication
184
Sec. 10 Connecting to PLC of GE Fanuc Automation Inc
186
Serial Port Communication
186
Serial Port Communication Parameters and Cable Fabrication
187
Serial Port Communication Parameter Setting
188
Supported Registers
191
Cable Fabrication
192
Sec. 11 Connecting to Keyence Plcs
196
Serial Port and the Ethernet
196
Communication Setting and Cable Connection
197
Communication Setting
198
When Using Keyence KV-3000 Communication Protocol
198
When Using Keyence KV-5000 Ethernetslave Communication Protocol
199
Supported Registers
201
Cable Connection
202
Sec. 12 Connecting to OMRON Safety Controller
204
Serial Port
204
Connecting to OMRON Safety Controller
204
Communication Parameters and Cable Fabrication
205
Communication Parameter Setting
206
When Using OMRON G9SP Communication Protocol
206
Supported Registers
208
Cable Connection
209
Revision History
211
