Omron NB10W-TW01B User Manual

5 Modbus Connection
5-18
NB-series Programmable Terminals Host Connection Manual (V108)
5-10 Example of Power PMAC Motion
Controller using Modbus TCP Slave
Protocol
The NB communicates with the Power PMAC using the Ethernet communication port via the Modbus
TCP Slave protocol with the PT designated as a master unit. Therefore, the communication settings
between the NB and the Power PMAC must be consistent. This section describes an example of the
settings.
 System Configuration

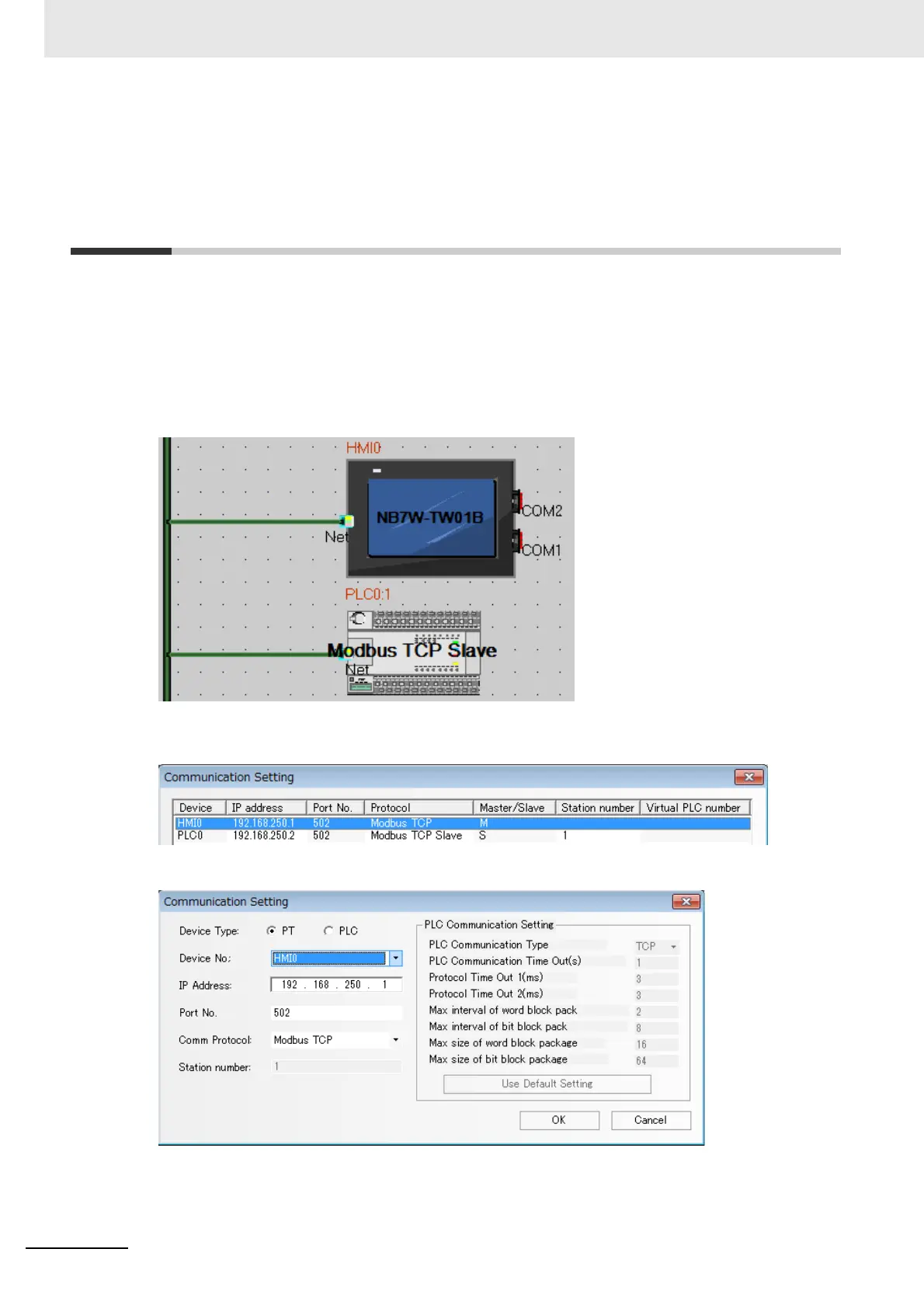

Following is an example of configuration and settings when Model NB7W-TW01B is used:
 PT Settings
Perform the NB communication settings as described below:

Omron NB10W-TW01B Specifications

General

Brand	Omron
Model	NB10W-TW01B
Category	Touch terminals
Language	English
