9-11
9 Connecting to Allen-
Bradley (Rockwell) PLC
NB-series Programmable Term
inals Host Connection Manua
l (V108)
9-3 Communication Paramet
er Setting
9
9-3-3 AB MicroLogix Series
Ethernet(TCP Slave)

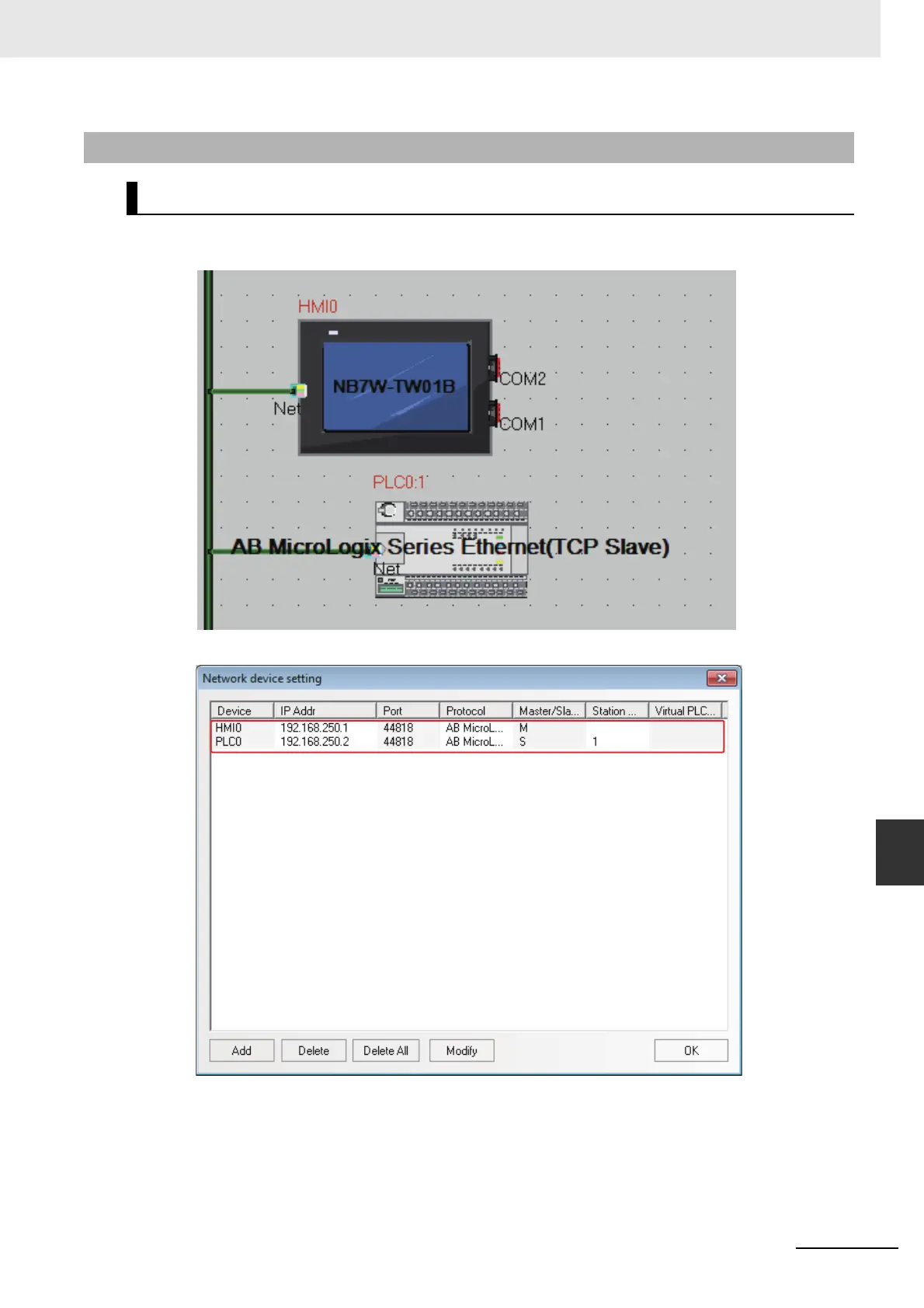

The Network Settings of PT are as sh
own below.
9-3-3
AB MicroLogix Series Ethernet(TCP Slave)
PT Settings
178
180
