9-13
9 Connecting to Allen-
Bradley (Rockwell) PLC
NB-series Programmable Term
inals Host Connection Manua
l (V108)
9-3 Communication Paramet
er Setting
9
9-3-3 AB MicroLogix Series
Ethernet(TCP Slave)
Using the Communication Module
1

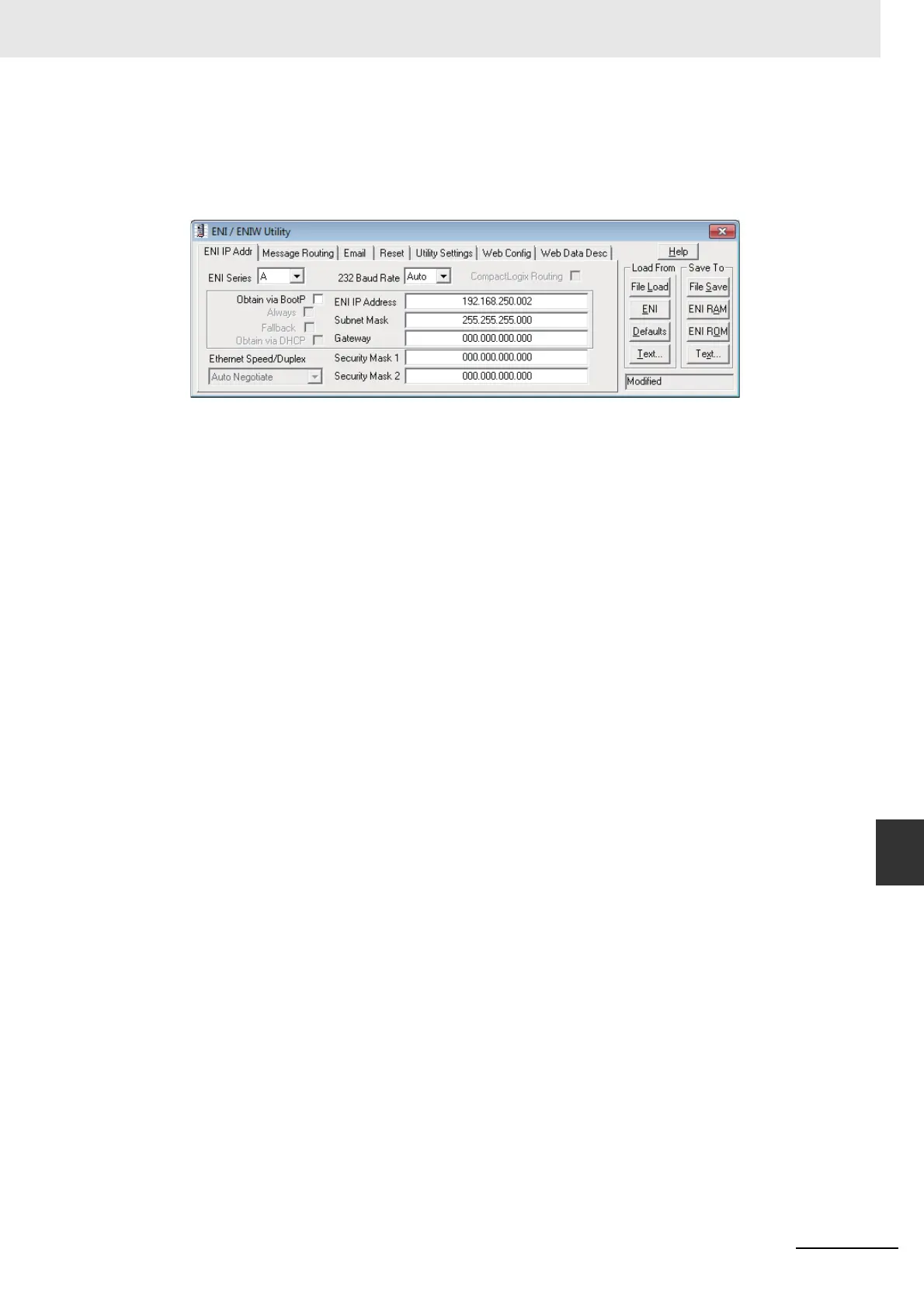

Start-up ENI/ENIW Utility
.
Set the IP Address to the same parameters as the PT settings.
2
Click ENI ROM to save the settings.
180
182
