2-19
2 Connecting
to SIEMENS PLCs
NB-series Programmable Term
inals Host Connection Manua
l (V108)
2-3 Communication Parameter Set
ting
2
2-3-4 SIEMENS S7-300 Ethernet (TCP Slave)
3
Create a
Data block.
Double-click the [Project tree] - [A
dd new block].
4
Click the Data Block.

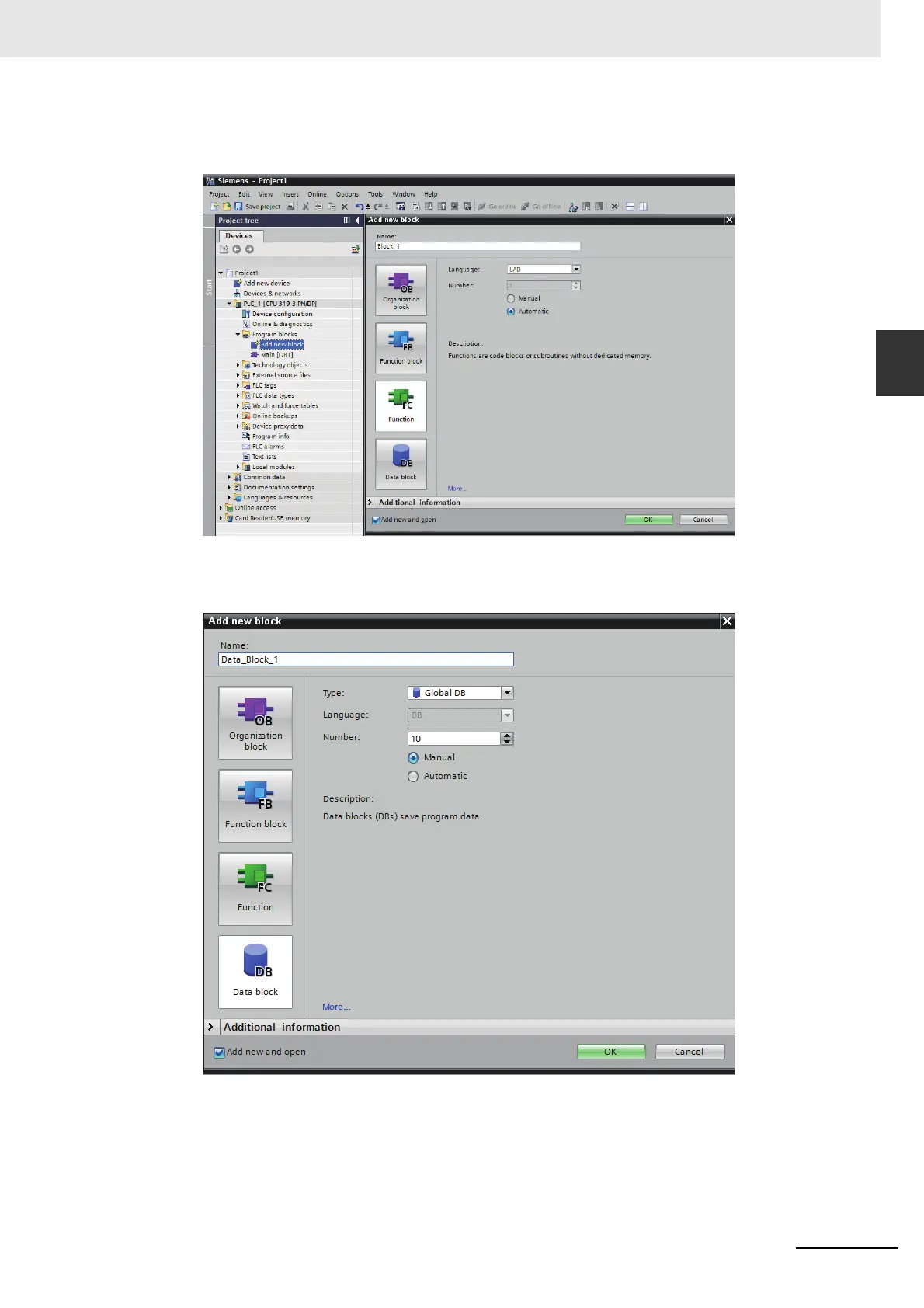

Example: If you create a new Data block DB10, make settings as below.
52
54
