Overview Section 4-1
4-1 Overview
4-1-1 Accessing Devices by UDP/IP
Devices on a DeviceNet or DeviceNet Safety network can be accessed from
general-purpose controllers (e.g., PLCs or computers) in an Ethernet network
using UDP/IP frame message communications via an ED Router.
This enables monitoring a DeviceNet or DeviceNet Safety control system via
Ethernet from a machine controller or monitor computer that does not support
a DeviceNet interface. This can be used to easily add a DeviceNet Safety con-
trol system to an existing system.

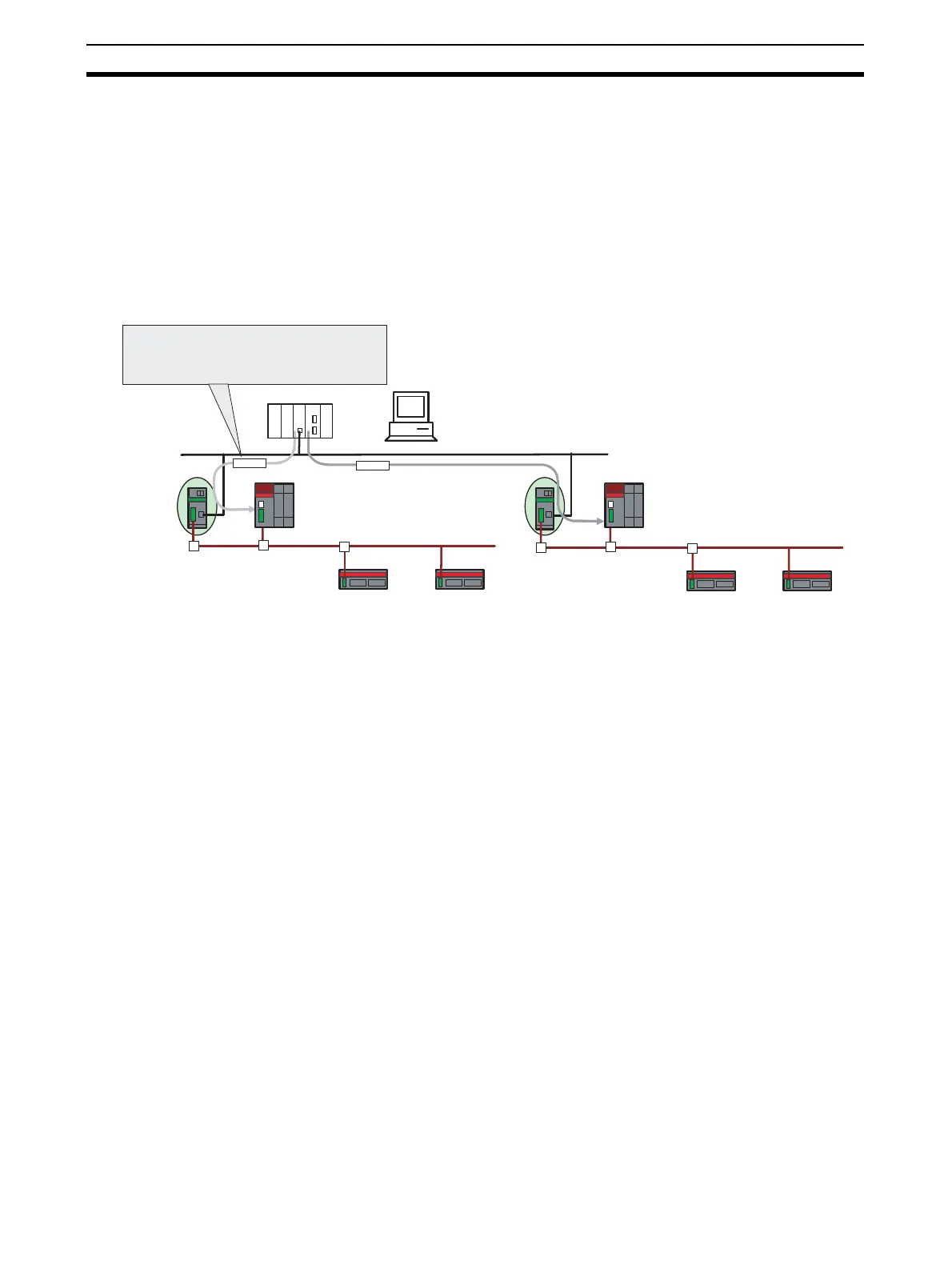

ED Router
(NE1A-EDR01)
PLC (OMRON or other maker)
OR
Ethernet
Command via UDP
Command via UDP
DeviceNet Safety
NE1A Safety Network Controller
Computer
Socket service (UDP)
DeviceNet Safety
DST1-series Slaves
DeviceNet Safety
DST1-series Slaves
DeviceNet Safety
Safety controls can be monitored by accessing
devices on the DeviceNet Safety network using the
UDP service from a general-purpose controller on
the Ethernet network (e.g., a PLC or computer).
