Creating Screens
■ [06 Check1]
The system shows the [06 Check1] screen when a user pushes the maintenance
button on the [01 Waiting] screen.
Set these functions:
• The system lights the related lamp objects when the vehicle sensor, light sensor,
upper LS, or lower LS turns ON.
• Buttons are used to switch to the [01 Waiting] and [07 Check2] screens.
• Each Function switch operates [Open], [Stop], or [Close] shutter action.

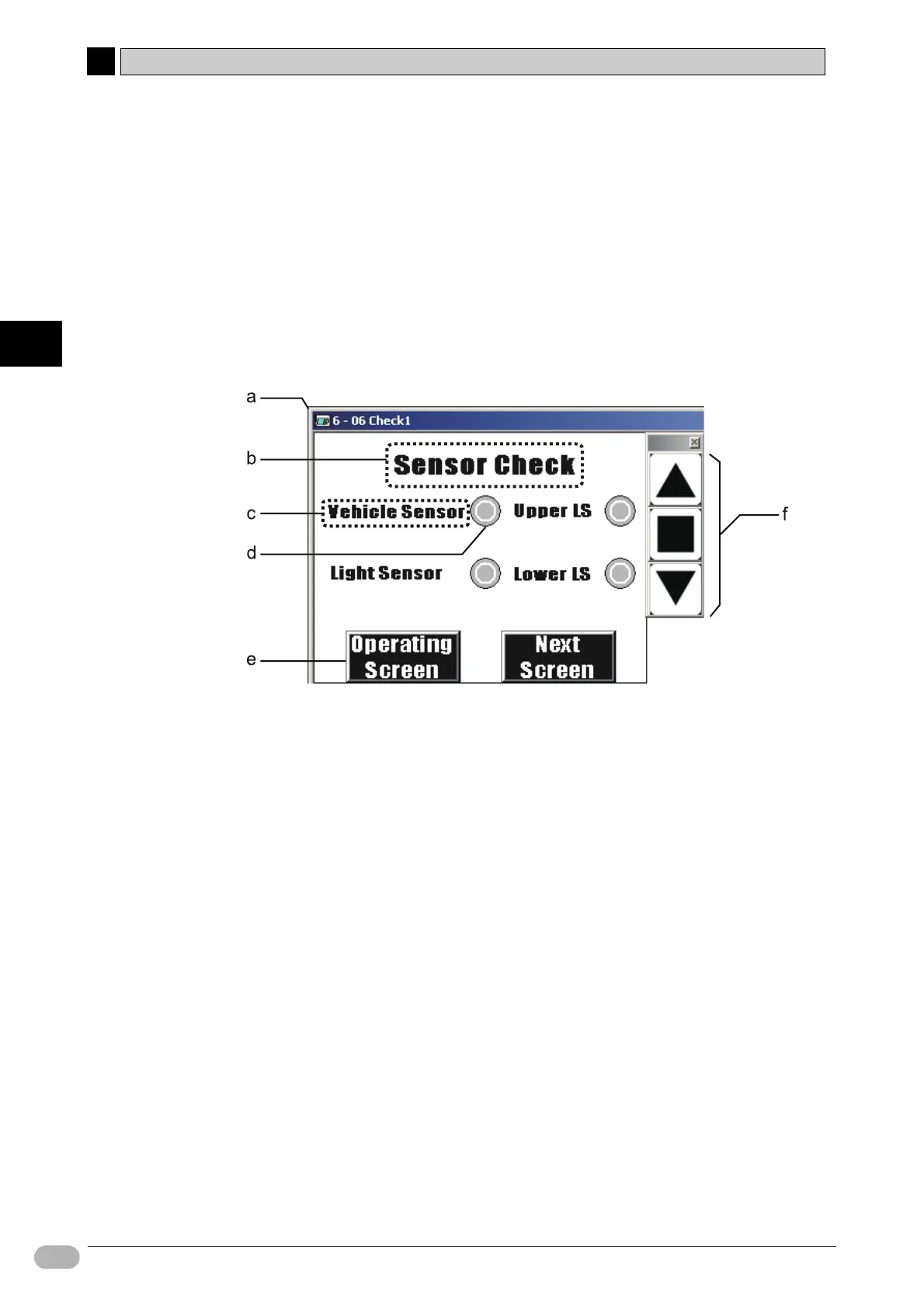

The completed screen shows below.
aScreen
b Fixed Object (Text)
c Fixed Object (Text)
d Lamp (N-state)
e Button (Change Screen)
f Function Switches
●Screen
1. Select [Screen] - [New] from the main menu.
You will see the [New Screen] dialog box.
2. Click [OK].
You will see a new screen in the workspace. [6-Screen_6] will be the title of the
workspace.
3. Click the [Screen Name] input field. Change the value to "06 Check1".
The title of the workspace will be [6-06 Check1].
