Creating Screens
d
* Set this property after creating the [07 Check2] and [08 Check3] screens.
●Function Switches
Set the function switches.
For details, refer to [01 Waiting]. Setting details are the same.
The [06 Check1] screen is now complete.
■ [07 Check2]
The system shows the [07 Check2] screen when a user pushes the screen
switching button on the [06 Check1] or on the [08 Check3] screen.
Set these functions:
• For check operation, the system lights the related lamp objects, when the
[OPEN], [STOP], or [CLOSE] function switch turns ON.
• Buttons are used to switch to the [06 Check1] and [07 Check2] screens.
• Each Function switch operates [Open], [Stop], or [Close] shutter action.
The completed screen shows below.

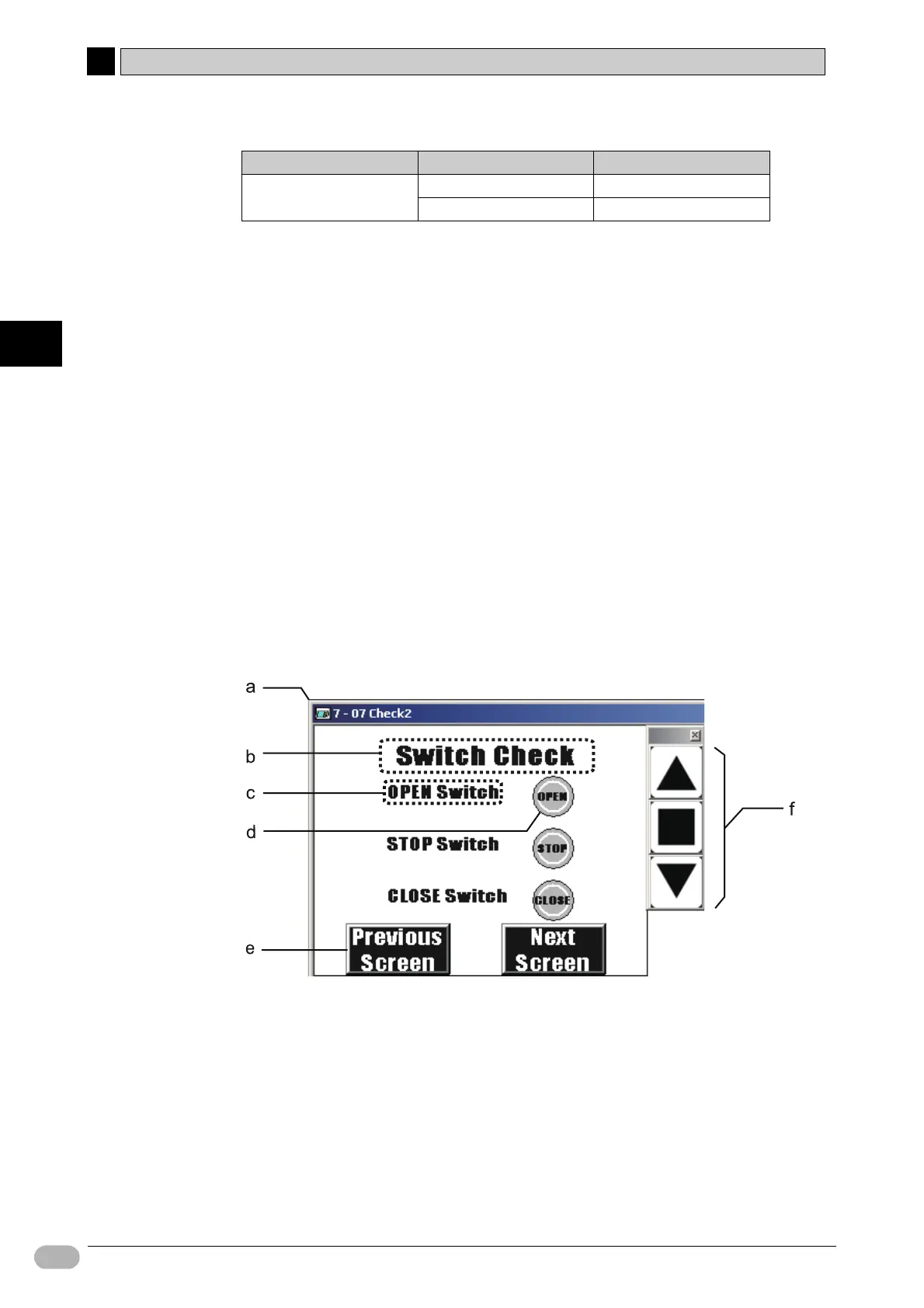

aScreen
b Fixed Object (Text)
c Fixed Object (Text)
d Lamp (N-state)
e Button (Change Screen)
f Function Switches
Object Item Setting
Button (Change Screen)
Label Next [line break] Screen
Change Screen 7-07 Check2*
