Task Management
123

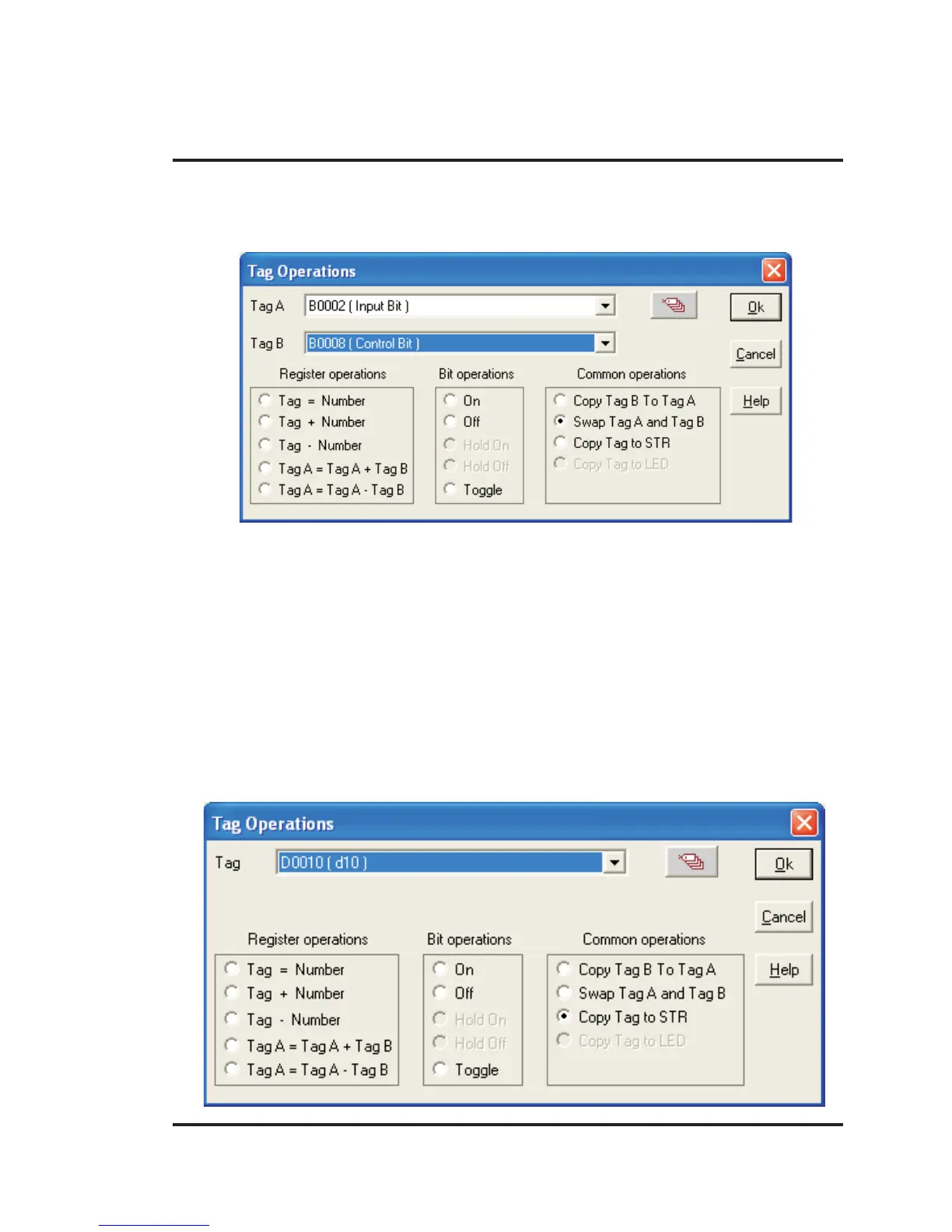

This task is executed on register tags and coil or bit-addressed register listed under Tag option. Both tag
type must be of same type; either register type or coil/bit type. If the selected tags are of register type
than this command is executed depending on the tag length (i.e. 1 byte,2 byte, 4 byte ). User can
interchange values of Tag A and Tag B by using this command.
For this task default setting is shown under ‘Common operations’. If user change this selection, task will
be changed.
Click ‘OK’ to add task in task list.
Copy Tag to STR
This is a very important task which allows user to copy the value of selected PLC to Tag STR i.e.Screen
Trigger register. Screen Trigger Register is a system register inside NTXS which decides the screen to
be displayed. PLC tag can be copied to STR.
Swap Tag A and Tag B
This task is used for swapping the values of two PLC tags. Tag A value will be copied to tag B and tag B
value will be copied to tag A.
