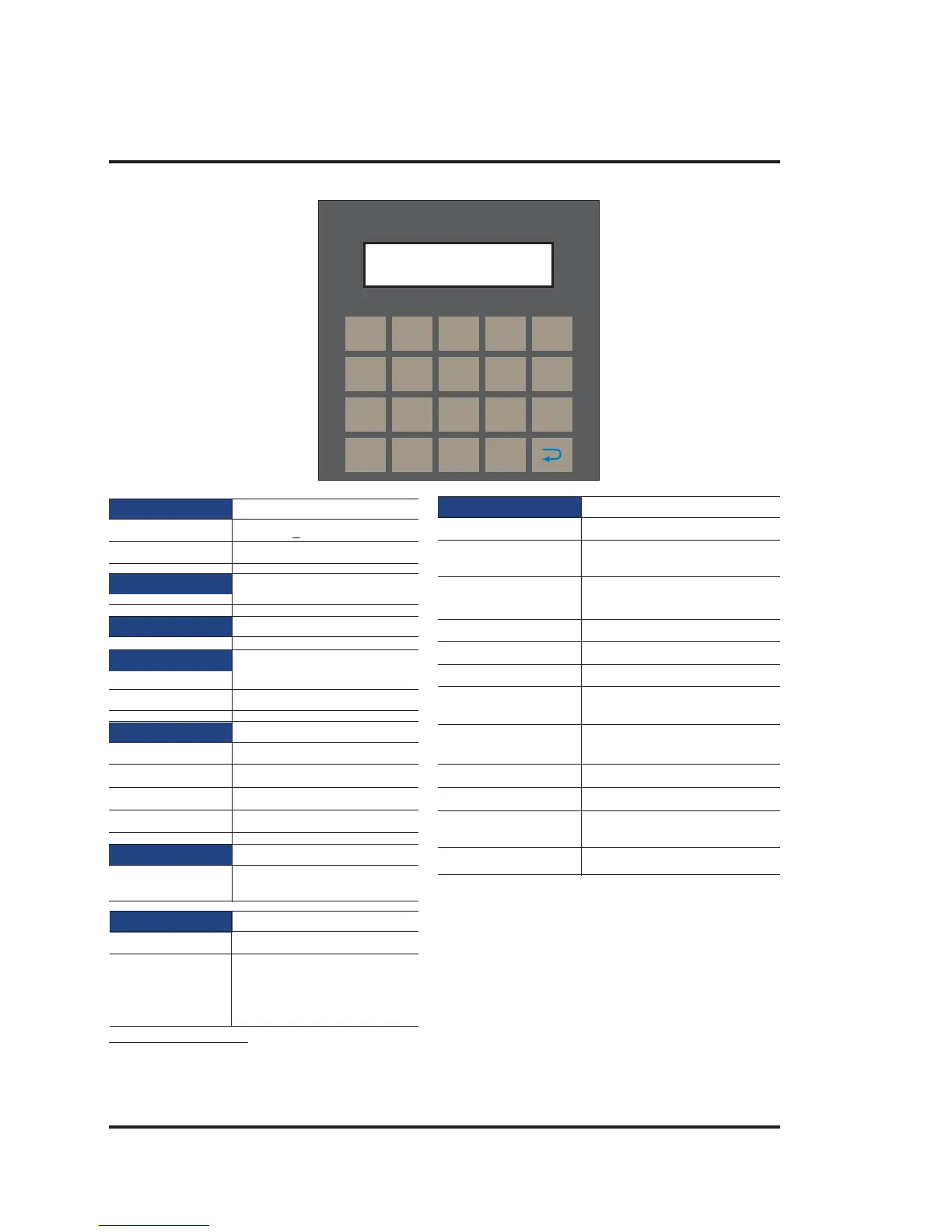

NT2S-SF125B-E
System Components:
- Unit with LCD display, Membrane keypad and RTC.
- Power Supply connector.
- Installation Kit: Gasket, Two Mounting clamps
Note: User should order cables separately
Communication
Number of Ports 2
Type One RS232/CMOS port for
connecting to PLC and one
RS232 port for Programming
and Printing
Power Supply 24VDC
Voltage Rating 24 VDC
+ 10%
Power Rating 1.5W
Approvals CE and cULus Class1 Div. 2
Certified
Bezel IP65 Rated Keypad
Keypad PCB based Keypad With
Tactile Feedback Keys
Number Of Keys 20 keys
Memory
Total Memory 63KB
Application Memory 24KB
Data Register 1000
Retentive Register 1000
Display LCD Text Display
Display Type 2 lines of 16 characters
Backlit LCD
1
4
7
CLR
2
5
8
0
3
6
9
+/-
F1
F2
F3
F4
F5
F6
F7
F8
Miscellaneous
Dimension 92.00 X 92.00 mm
Battery Coin Type, 3V Lithium Battery
614-CR1225FH
Battery Backup 8 years typical battery backup
for RTC and System data
Operating Temperature 0
0
C to 50
0
C
Storage Temperature -25
0
C to 80
0
C
Mounting Method Panel Mounting
Clock(RTC) Real Time Clock Function
(Date & Time)
Humidity 10% To 90%
(Noncondensing)
Immunity to ESD Level 3 as per IEC1000-4-2
Immunity to Transients Level 3 as per IEC1000-4-4
Immunity to Radiated Level 3 as per IEC1000-4-3
RF
Emission EN55011 CISPRA
