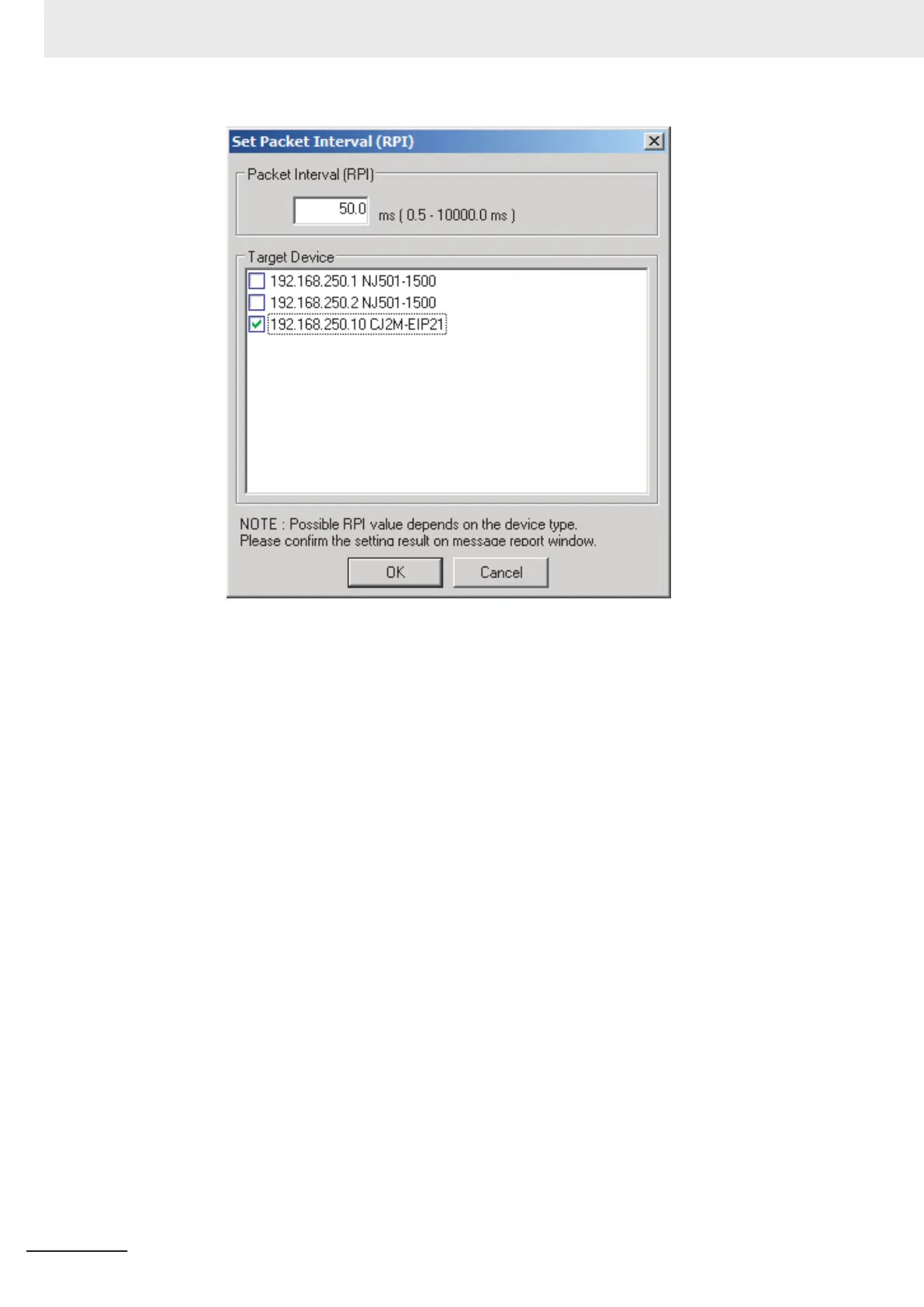

3) Input a new RPI value, and click the OK Button.
•
Method 3: Change the RPI for a Specific Connection
You can adjust the Usage of Capacity (without Multicast Filter) value by changing the RPI
for a specific connection.
Note that the Usage of Capacity (without Multicast Filter) value for the target device of the
connection are also changed.
1) Click the Close Button in the Usage of Device Bandwidth Dialog Box.
2) Double-click the device that is set as the originator of the connection. The Edit Device
Parameters Dialog Box is displayed.
15 Communications Performance and Communications Load
15-14
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
