To Next Page

To Previous Page

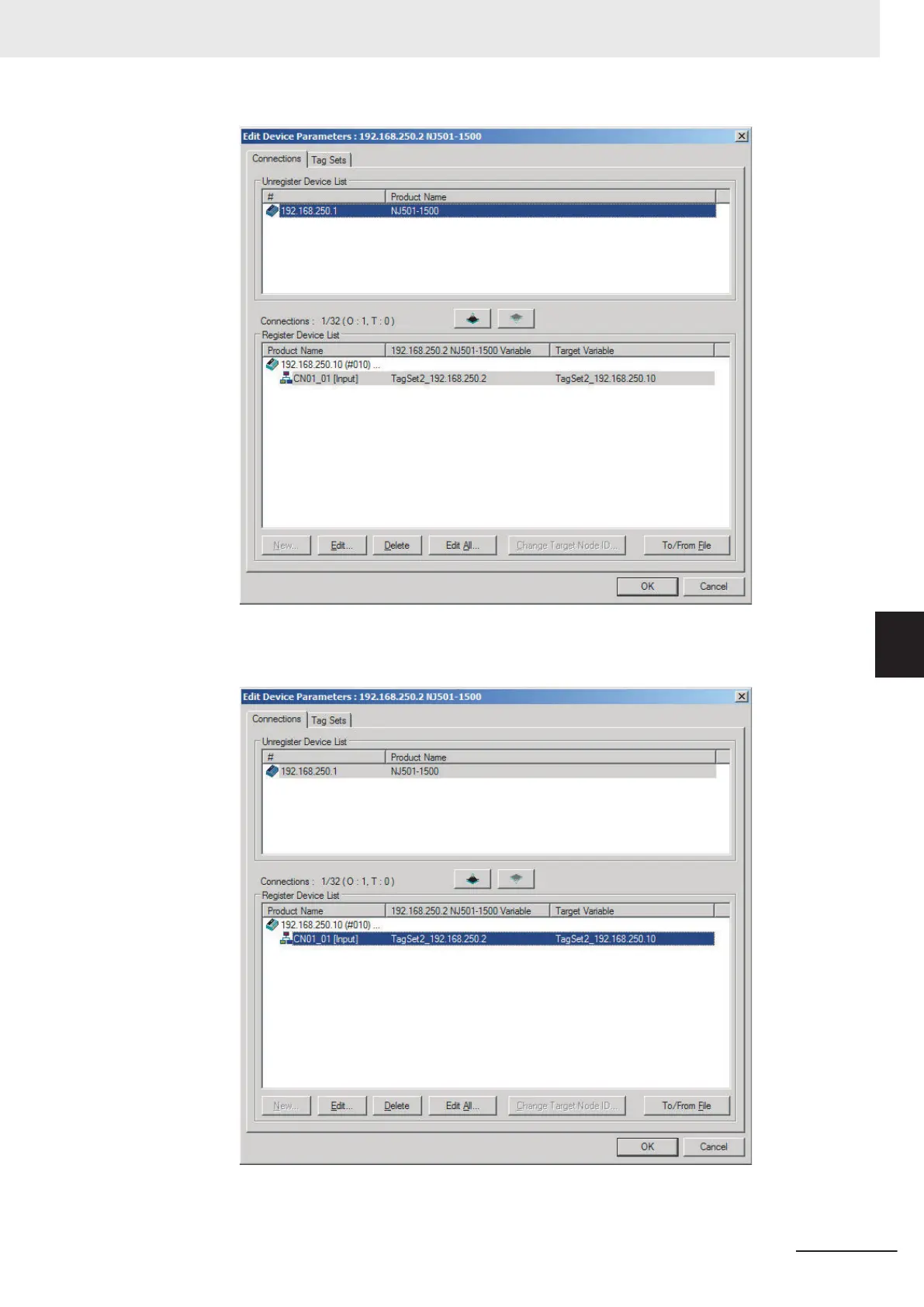

3) In the Register Device List Area, select the connection for which you want to change

the RPI, and click the Edit Button.

4) The Edit Connection Dialog Box for the device is displayed. Input a new packet interval

(RPI) value, and click the OK

Button.

15 Communications Performance and Communications Load

15-15

NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)

15-2 Adjusting the Communications Load

15-2-4 Changing the RPI
