Omron SmartController EX - Front Panel Dimensions

56 SmartController EX User's Guide 11069-000 Rev. H
5.2 Front Panel Dimensions
5.2 Front Panel Dimensions
152.4
88.9
38.7
55.9
16.5
13.1 129.5
30
139.7
76.2
6.4
6.4
4x M4 x 18 mm

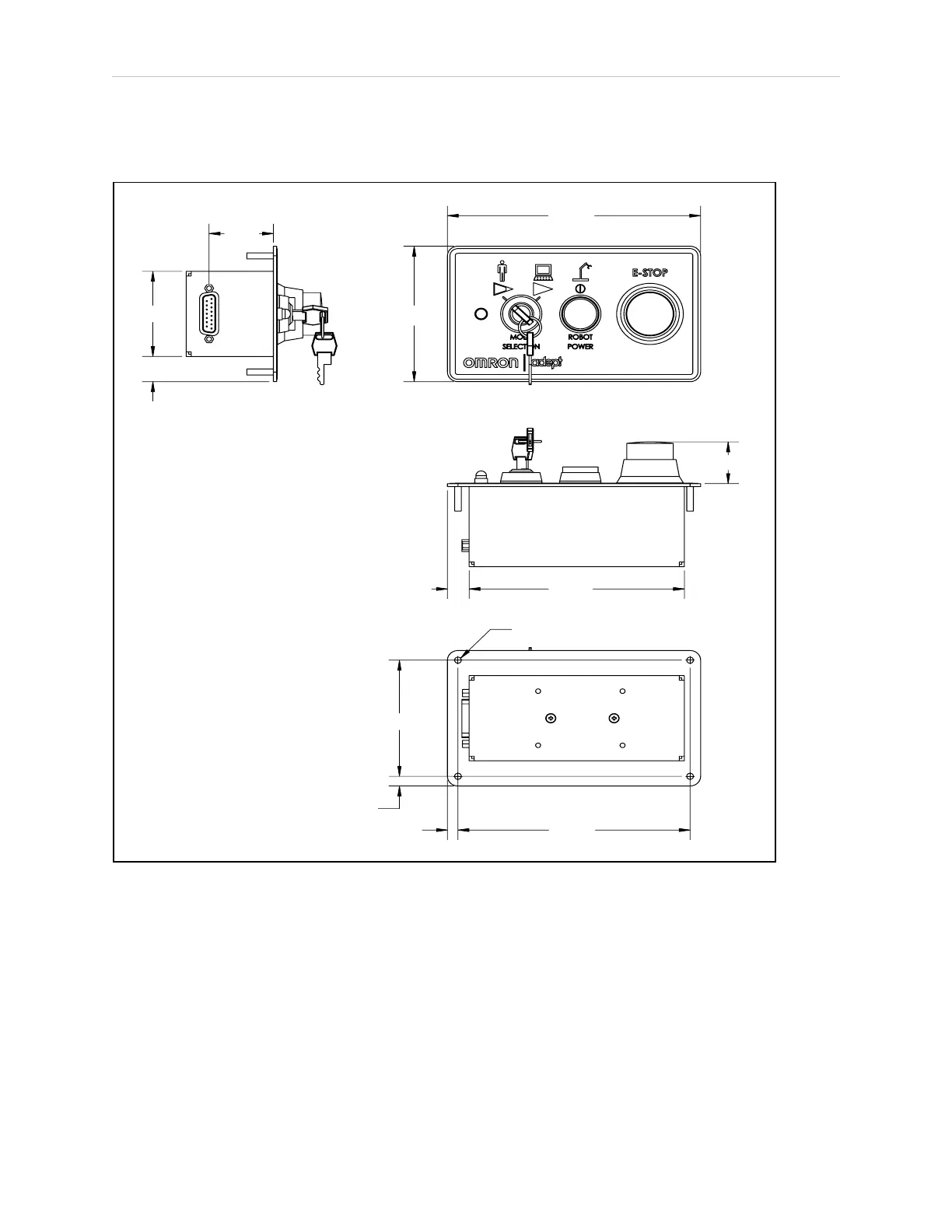

Figure 5-2. Front Panel Dimensions (Units in mm)
