Omron SmartController EX - Page 64

64 SmartController EX User's Guide 11069-000 Rev. H
6.4 DeviceNet Physical Layer and Media
1
2
8
7
6
5
4
3

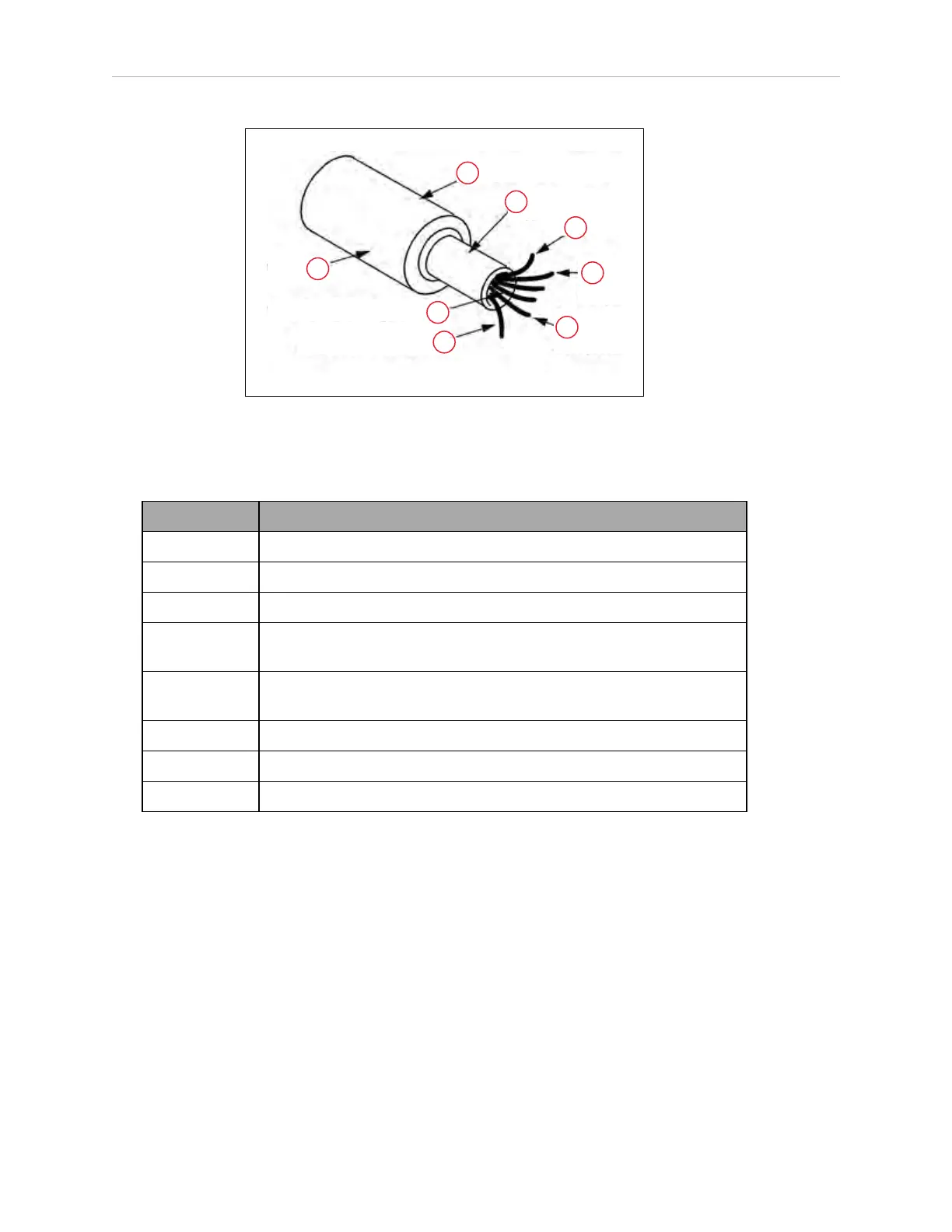

Figure 6-2. DeviceNet Thick Cable
Table 6-5. DeviceNet Thick Cable Descriptions
Item Description
1 11 mm outside diameter
2 65% coverage tinned copper braid shield
3 Polypropylene fillers
4 Blue and white data-pair polyethylene (18 AWG 19 x 30tinned cop-
per conductors)
5 Red and black DC power pair PVC (15 AWG 19 x 28 tinned and stran-
ded copper conductors
6 18 AWS 19 x 30 tinned copper-stranded drain wire
7 Aluminum / mylar shield over each pair
8 External jacket
