02 Technical description
changeable by a short bar
68 functions assignable
Output signal
Intelligent output terminal
48 functions assignable
Monitor output (analog)
Pulse train output
(0~10 Vdc, 32 kHz max.)
Alarm output contact
ON for inverter alarm (1c contacts, both normally open or closed available.)
Operating environment
Temperature
Operating (ambient): -10 to 50°C /
Storage: -20 to 65°C
Humidity
20 to 90% humidity (non-condensing)
Vibration
5,9 m/s2 (0,6 G), 10 to 55 Hz
Location
Altitude 1,000m or less, indoors (no
corrosive gasses or dust)
02.3 Construction of the 3G3MX2

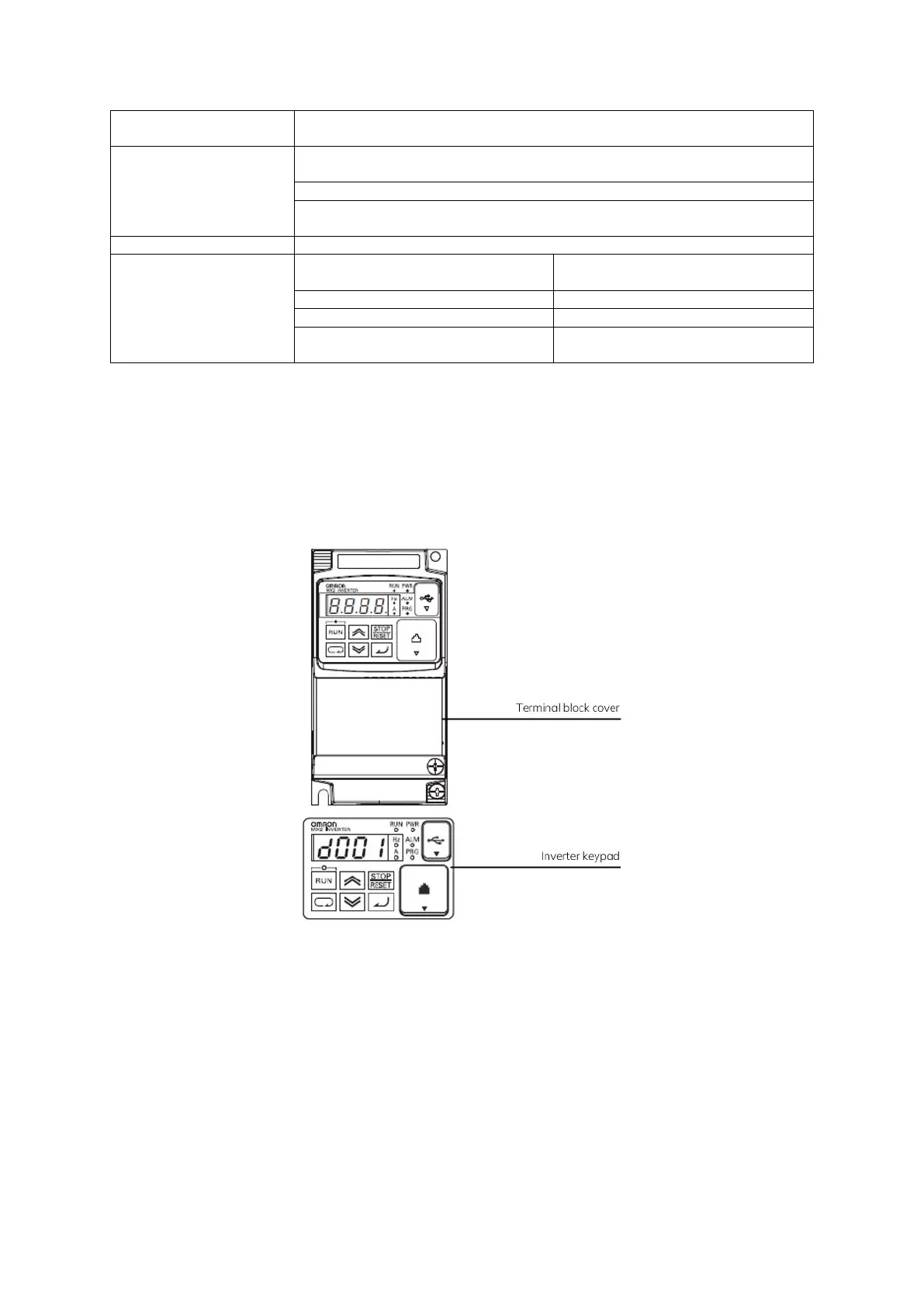

The following figure shows the basic structure of the 3G3MX2 frequency inverter.
