Appendix BSpecifications
94

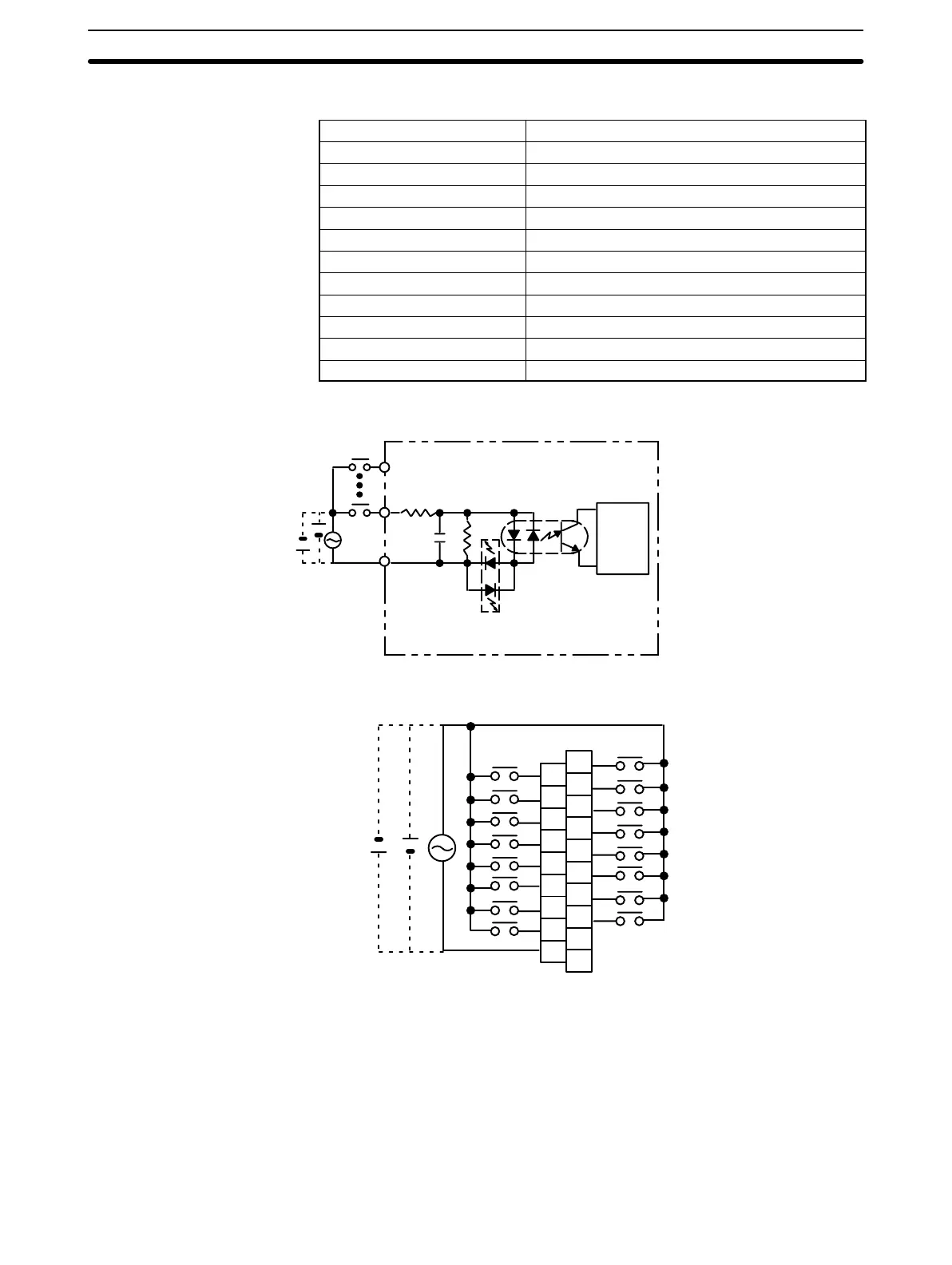

AC/DC Input Unit C200H-IM212
Rated Input Voltage 24 VDC
Operating Input Voltage 20.4 to 26.4 VAC/DC 50/60 Hz
Input Impedance 3 kΩ
Input Current 7 mA typical (at 24 VDC)
ON Voltage 14.4 VDC min.
OFF Voltage 5.0 VDC max.
ON Response Time 15 ms max. (at 24 VDC, 25°C)
OFF Response Time 15 ms max. (at 24 VDC, 25°C)
No. of Circuits 1 (16 points/common)
Internal Current Consumption 10 mA 5 VDC max.
Weight 250 g max.
Dimensions B-shape
Circuit Configuration
IN
IN
COM
Internal
circuit
24 VAC/DC
3 kΩ
0.01 µF
Input indicator
1.8
kΩ
Terminal Connections
A0
A1
A2
A3
A4
A5
A6
A7
A8
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
COM
1
3
5
7
9
11
13
15
NC
0
2
4
6
8
10
12
14
NC
24 VAC/DC
