Omron SYSMAC C200H Installation Guide

16
2-3 Expansion I/O Rack

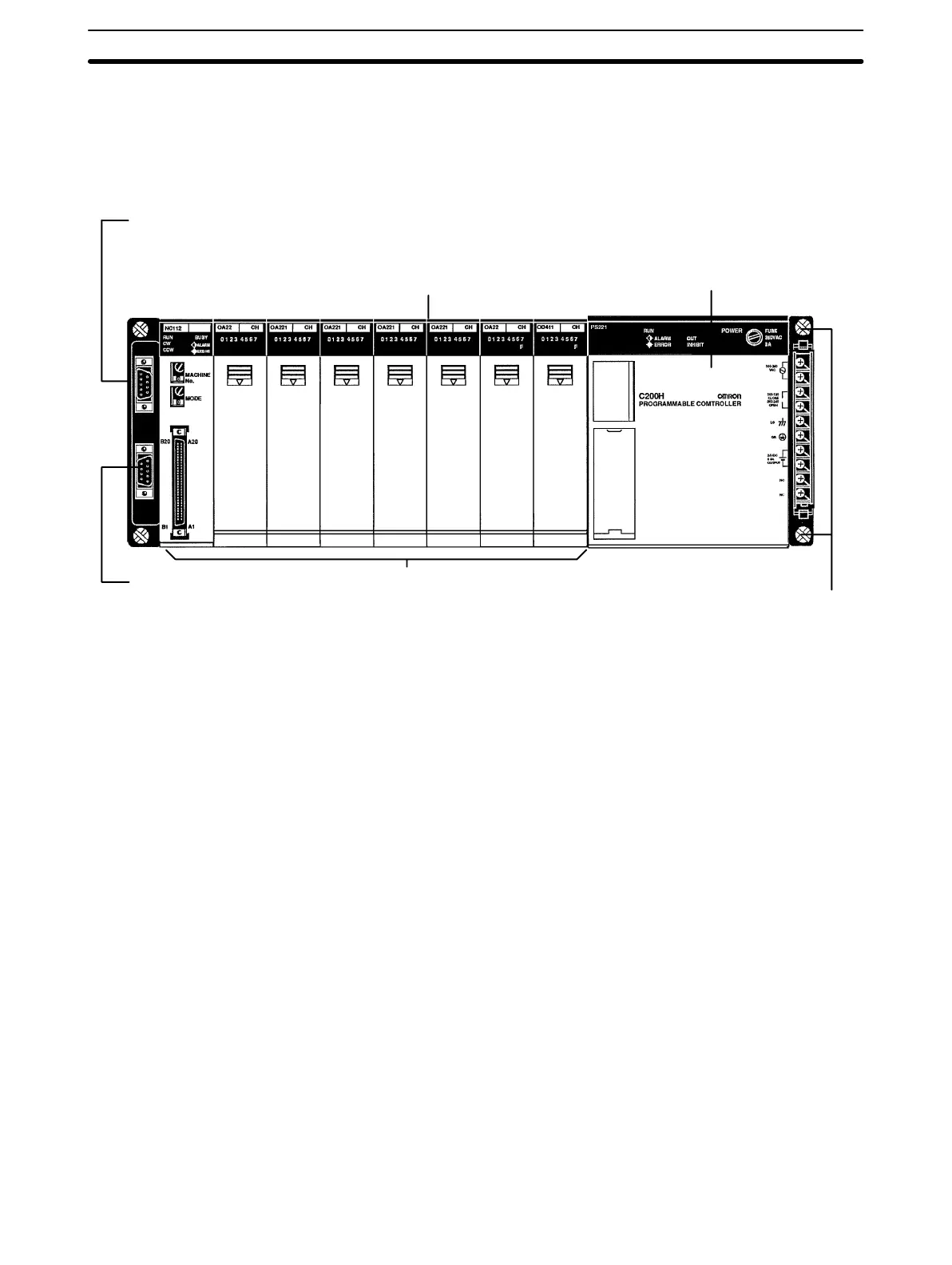

The Backplane used to construct a CPU Rack is also used to construct an Ex-
pansion I/O Rack. An Expansion I/O Rack is identical to a CPU Rack, except the
CPU Unit has been replaced with a Power Supply. The parts of an Expansion I/O
Rack are shown in the following diagram.
I/O Connecting Cable connector:
Connects Expansion I/O Rack to
next Expansion I/O Rack. When
not used, cover with a cap.
Backplane mounting screws
(four, with 4-mm dia. heads)
Power Supply
Backplane
I/O Units
I/O Connecting Cable connector:
Connects Expansion I/O Rack to
preceding Expansion I/O Rack or to CPU
Unit.
Expansion I/O Rack Section 2-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Omron SYSMAC C200H Specifications

General

PLC Type	Modular
Operating Temperature	0 to 55°C
Programming Language	Ladder logic
Data Memory	512 words
Communication Ports	RS-232C
Humidity	10 to 90% RH (non-condensing)
Supply Voltage	100 to 120 VAC, 200 to 240 VAC, 24 VDC (depending on the power supply unit)
