Omron SYSMAC C200H Installation Guide

17
2-4 Power Supplies
The Power Supply used for Expansion I/O Racks is available in two models. One
runs on 100 to 120 or 200 to 240 VAC, and the other runs on 24 VDC.

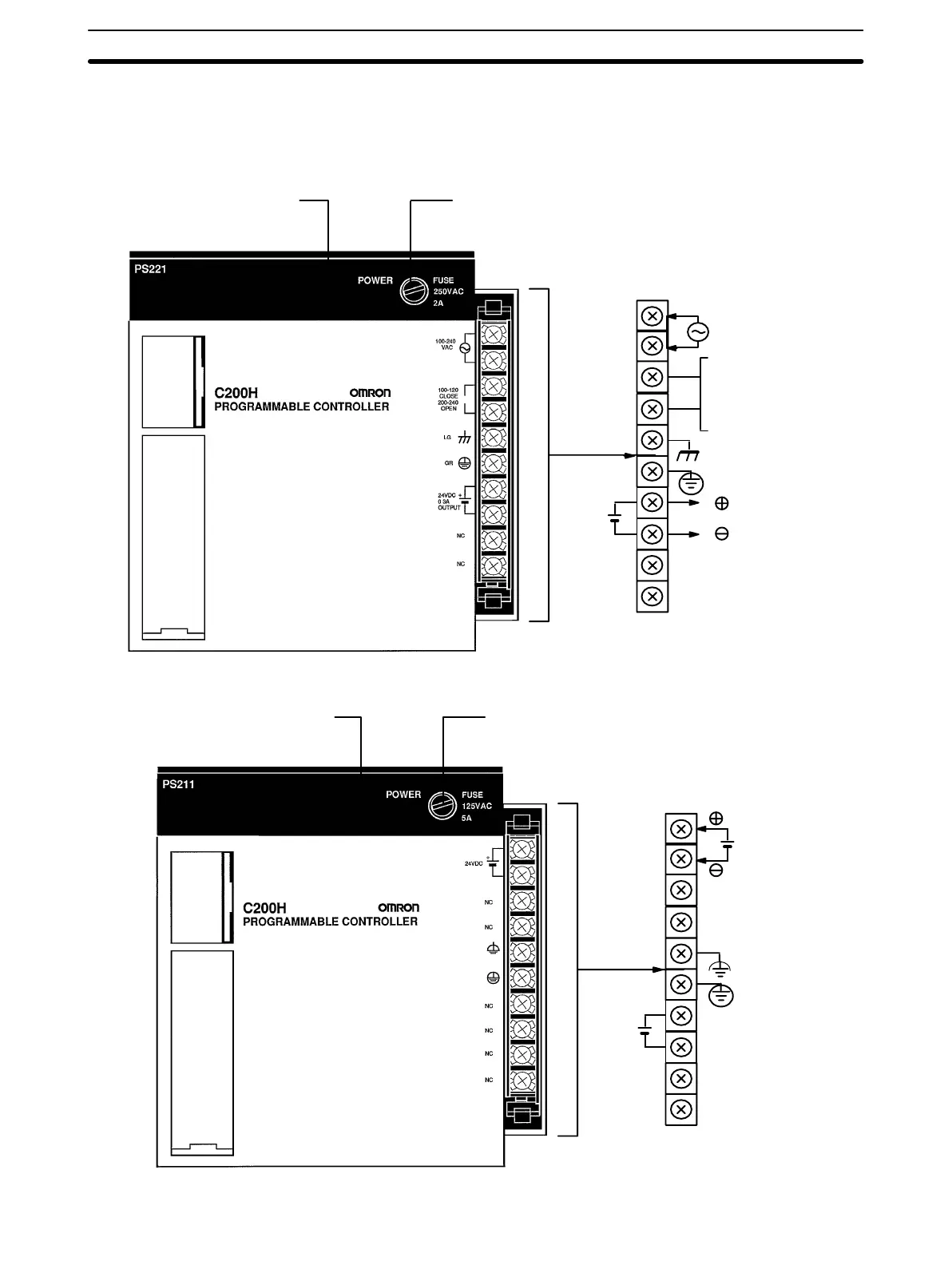

AC Power Supply
POWER indicator (green):
Lights when power is
supplied to Power Supply
Power fuse: 2 A 250 V
(5.2-dia. x 20) MF51NR
Voltage selector
terminals
Short: 100 to
120 VAC
Open: 200 to
240 VAC
Terminals
for external
connections
NC
NC
GR
LG
AC Input
+
24 VDC
0.3 output
DC Power Supply
+
Terminals
for external
connections
POWER indicator (green):
Lights when power is
supplied to Power Supply
Power fuse: 5 A 125 V
(5.2-dia. x 20) MF51NR
NC
NC
24 VDC
NC
NC
NC
NC
+
Power Supplies Section 2-4
