Omron SYSMAC C200H Installation Guide

57

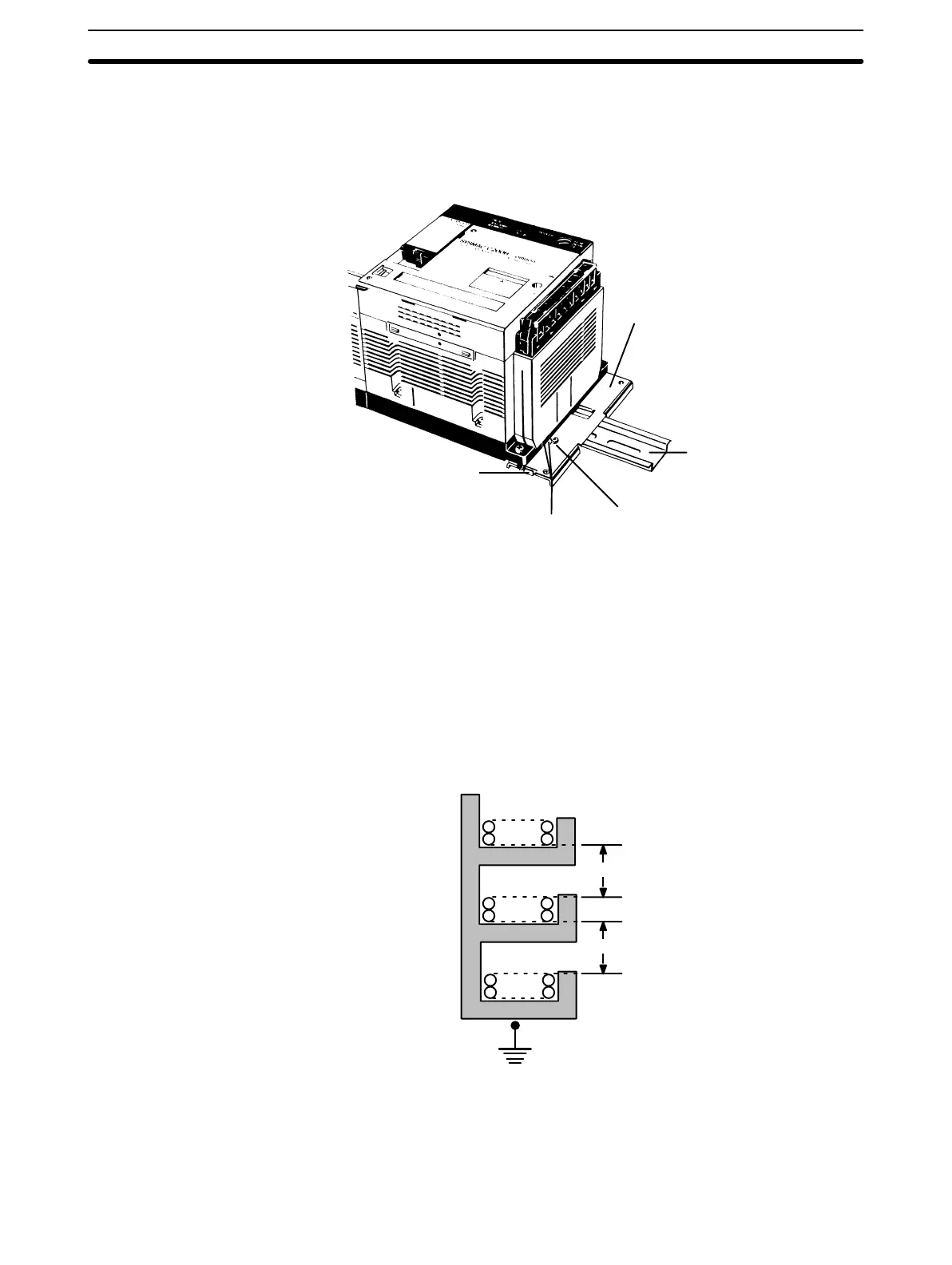

3. Loosen the screws attaching the Mounting Brackets to the Backplane. Slide
the Backplane upward as shown below so that the Mounting Bracket and
Backplane clamp securely onto the DIN Track. Tighten the screws.
DIN Track Mounting Bracket
DIN
track
Slide this screw to the top of the
projection and then tighten it.
Projections
Hold-down bracket
5-3 Duct Work
If power cables carrying more than 10 A 400 V, or 20 A 220 V must be run along-
side the I/O wiring (that is, in parallel with it), at least 300 mm must be left be-
tween the power cables and the I/O wiring as shown below.
Low current cable
Control cable
Power cable
300 mm min.
300 mm min.
1
2
3
Grounding at resistance
of less than 100 Ω
Where: 1 = I/O wiring
2 = General control wiring
3 = Power cables
Duct Work Section 5-3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Omron SYSMAC C200H Specifications

General

PLC Type	Modular
Operating Temperature	0 to 55°C
Programming Language	Ladder logic
Data Memory	512 words
Communication Ports	RS-232C
Humidity	10 to 90% RH (non-condensing)
Supply Voltage	100 to 120 VAC, 200 to 240 VAC, 24 VDC (depending on the power supply unit)
