If you are using the C200H-CPU31-E, a SYSMAC LINK Unit or a SYSMAC LINK
Unit can be mounted to either of the two slots to the left of the CPU Unit. They are
then connected to the CPU Unit with the Bus Connector Unit.

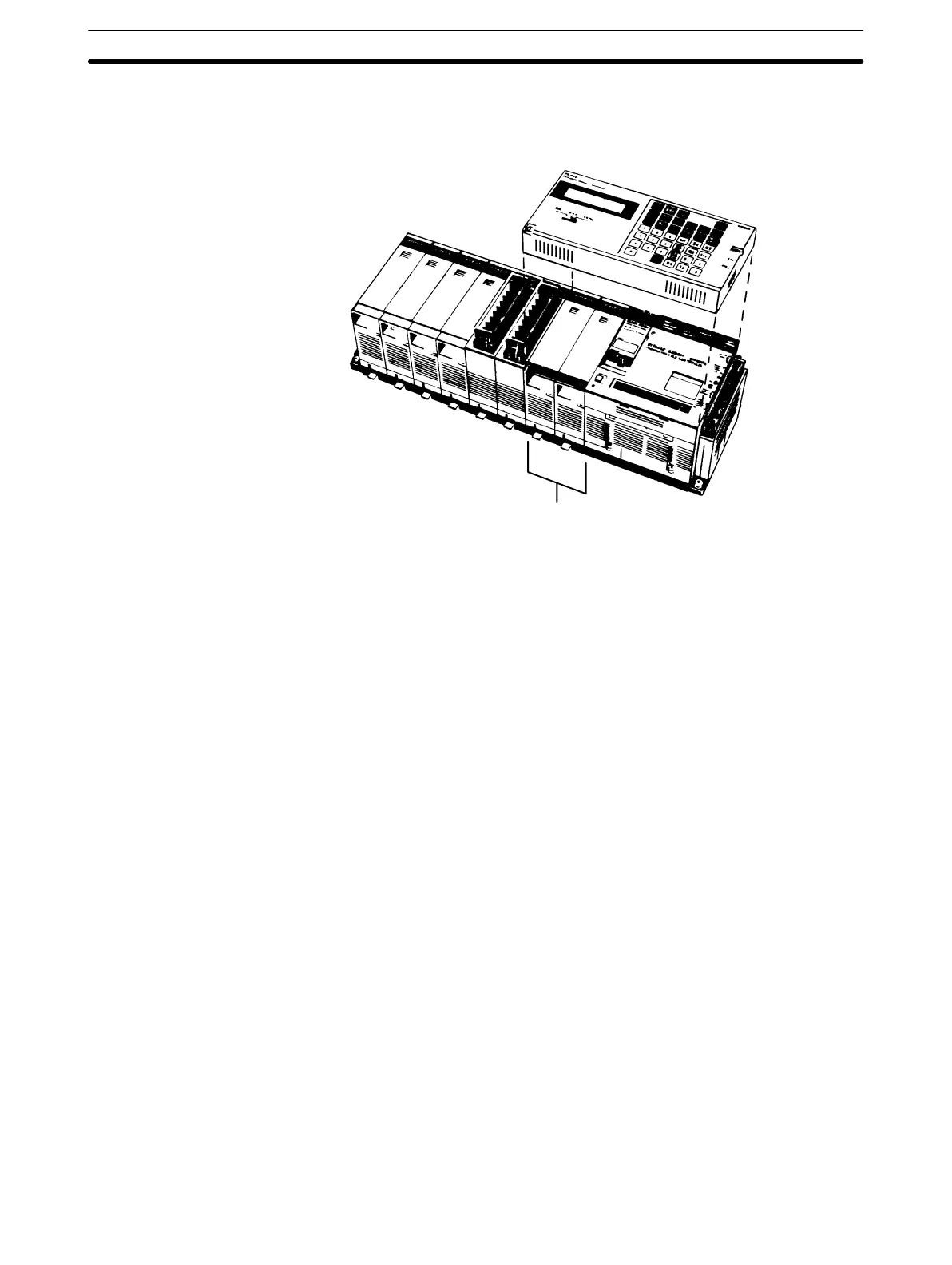

Peripheral
device
CPU Rack
A-shape I/O Units
1, 2, 3... 1. Remove the cover from the peripheral device connector with a standard
screwdriver.
2. Connect the CPU Unit-mounting Programming Console to the peripheral
device connector.
3. Attach the CPU Unit-mounting Programming Console to the CPU Unit by
tightening the mounting screws.
CPU Units Section 2-2
